100T Hydraulic Door Cold Press Machine
video
100T Hydraulic Door Cold Press Machine

100T Hydraulic Door Cold Press Machine

Laminate Press Machine 50T 50T 80T 100T Hydraulic Door Cold Press Machine In Furniture Plywood Door Making.Woodworking Machine Cold Press Machine Wooden Door Making Machine for MDF, Plywood,veneer, laminating and furniture making.
Send Inquiry
Description



Products Description





0107-21

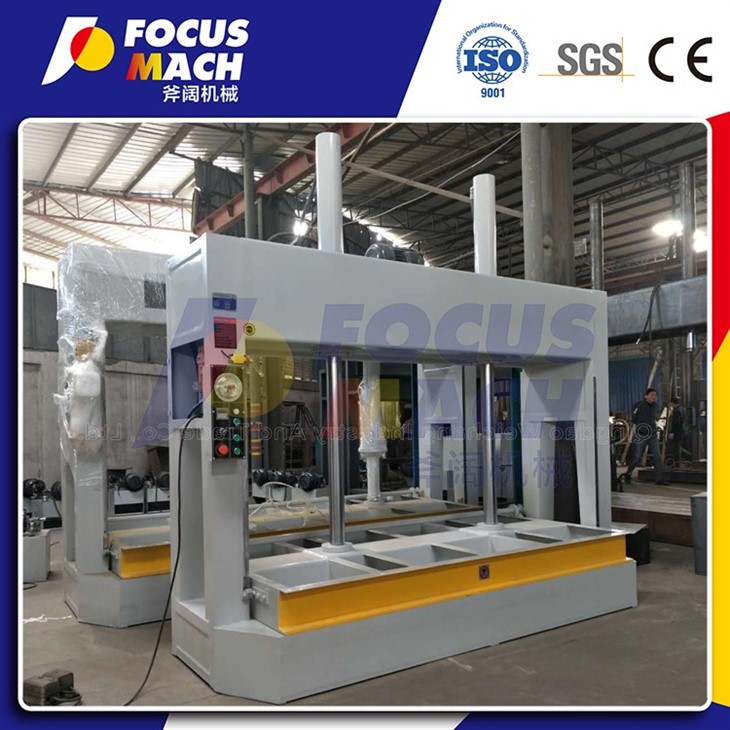

100T Hydraulic Door Cold Press Machine

This machine is designed with precision. It features a robust structure that can withstand high pressures. The pressure application system is highly efficient, enabling uniform pressure distribution across the plywood layers. This uniform pressure is vital as it guarantees the quality and flatness of the final plywood product.
The operation of the plywood cold press is user - friendly. Workers can easily adjust the pressure, time, and other parameters according to different production requirements. This flexibility makes it suitable for manufacturing various types of plywood, from thin decorative plywood to thick structural plywood.
Moreover, the cold press is energy - efficient. It doesn't require high - temperature heating during the pressing process, which not only saves energy but also reduces production costs. This makes it an environmentally friendly and cost - effective choice for plywood manufacturers. With its reliable performance and advanced features, the plywood cold press is a key asset in the plywood production line.

Product Parameters





Model
FM3248*50
FM3248*80
FM3248*100
Press platen dimensions
1250*2500mm
1250mm*2500mm
1250mm*2500mm
Max total thrust
50t(1.6kg/cm ²)
80t (2.5kg/cm2)
100t (2.2kg/cm²)
Press of hydraulic system
210kg/cm ²
200kg/cm2
200kg/cm²
Max platen opening
1000mm/1300mm
1000mm/1300mm
1000mm/1300mm
Oil cylinder
125mm*2psc
125mm*2pcs
φ125mm*4pcs
Hydraulic motor power
4kw
5.5kw
5.5kw
Overall dimensions
2940*1250*2900mm
3050*1250*3500mm
2920*1250*3400mm





Products Description




0107-22

0107-23

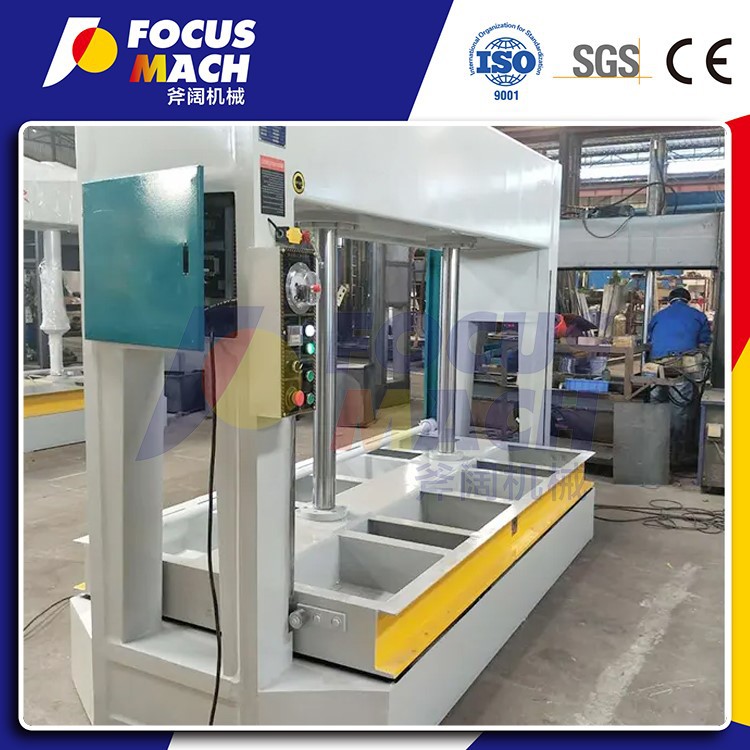

0107-24

0107-25

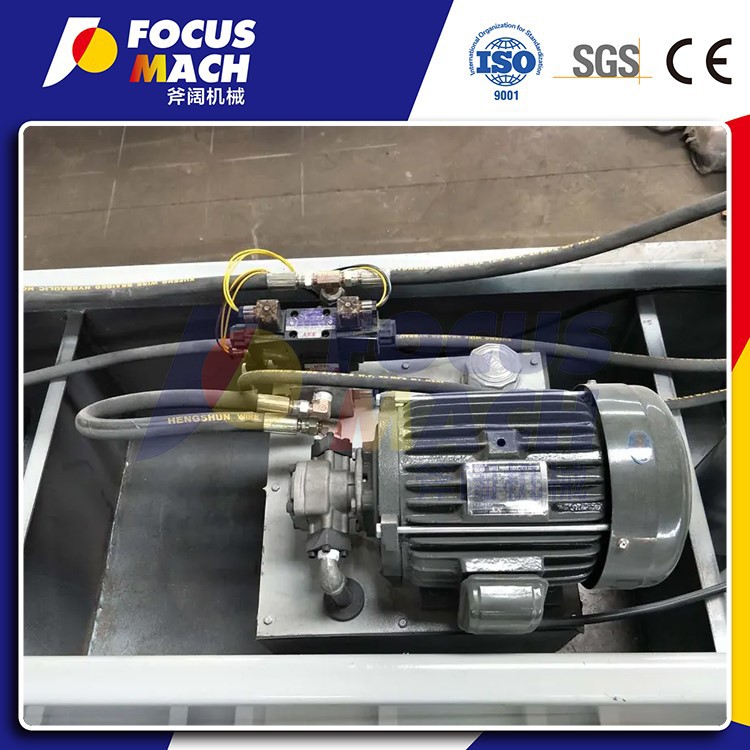

0107-26
