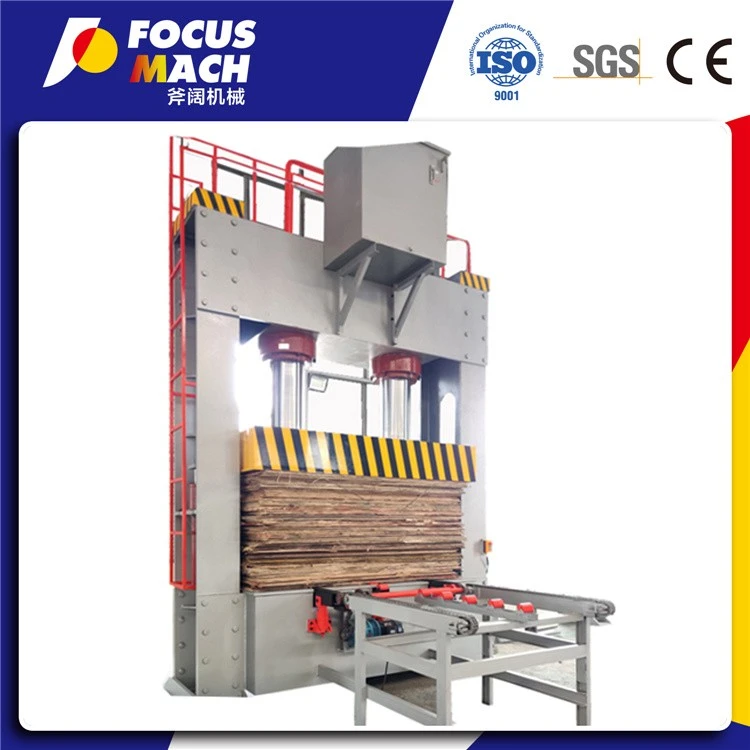

The 500-ton plywood cold press machine/wood veneer pre-press machinery, with an opening of 300-1300mm, is designed to pre-press the stacked glued plywood slabs, ensuring flatness and initial solidification of the glue. This state-of-the-art machinery boasts a robust window frame construction that enhances structural integrity and durability, making it suitable for heavy-duty industrial applications. The uniform pressure distribution mechanism guarantees consistent results across the entire surface area of the plywood slabs, contributing to high-quality output.
In addition to its impressive mechanical features, this machinery incorporates hydraulic and electrical components that meet rigorous international standards for safety and performance. The user-friendly operation is facilitated by a push button/PLC-based control system which streamlines the production process while ensuring precision and efficiency. Furthermore, an inbuilt chain conveyor system seamlessly handles material flow within the machine, optimizing productivity and minimizing downtime.
Notably, this advanced equipment is equipped with a Siemens Control System that further enhances its reliability and ease of use. With these cutting-edge technologies combined into one powerful unit, manufacturers can rely on this plywood cold press machine/wood veneer pre-press machinery to consistently deliver superior results in their production processes.
|
Nominal pressure |
5000kN |
|
Surface pressure |
1.3Mpa |
|
Platen Size |
2700×1370mm |
|
Maximum working stroke |
1000mm |
|
Maximum working stroke |
3.6m/min |
|
Net open |
300-1300mm |
|
Pressure cylinder diameter and number |
φ360mm/2 |
|
Lift cylinder diameter and number |
φ80mm/2 |
|
Maximum work pressure |
25Mpa |
|
Feeding speed |
6.78m/min |
|
Motor power |
1.1kW |
|
Hydraulic motor power |
15kW |
|
Machine total power |
16.1kW |
|
Overall sizes |
3500×2400×5165mm |
|
Weight |
18000kg |
