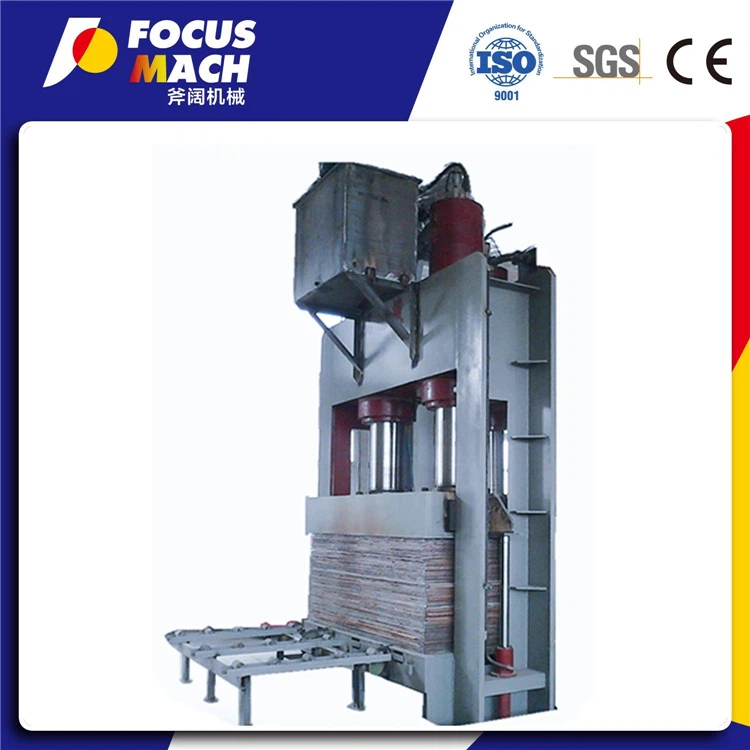

800 Ton Cold Press Machine

The cold press machine, as an integral part of the plywood production line, plays a pivotal role in optimizing the manufacturing process.

Send Inquiry

Description

The cold press machine, as an integral part of the plywood production line, plays a pivotal role in optimizing the manufacturing process.

Details

1. The main frame is meticulously crafted from high-grade national standard steel plate, ensuring exceptional durability and structural integrity. Through a precise process of one-time blanking and welding, the equipment boasts a well-structured design with rigorously calculated force points, delivering superior stability and excellent rigidity even under heavy loads.

2. By incorporating top-quality domestic oil cylinders positioned strategically underneath, the equipment seamlessly integrates top-grade hydraulic components to facilitate effortless replacement of inserts. This innovative design not only enhances operational efficiency but also ensures smooth and reliable performance during insert replacement procedures.

3. Furthermore, it offers straightforward maintenance procedures and user-friendly operation, making it an ideal choice for operators seeking ease of use without compromising on functionality or reliability.

4. Customized specifications can be readily accommodated based on specific user requirements, allowing for tailored solutions that meet diverse industry needs with precision and flexibility.

Nominal pressure	8000KN (800 TONS)
Boards in-feeding direction	Horizontal
Max. opening	1500mm
Dimension of working platform	1380mm x 2700mm
Dimeter of plunger cylinders	Ф320mm (Wuxi)
Number of plunger cylinders	2 Pcs
Diameter of side helpful cylinders	Ф60mm (Wuxi)
Number of side helpful cylinders	2Pcs
Allowed pressure of plunger cylinders	≤26Mpa
Stroke of plunger cylinders	1000mm
Position of plunger cylinders	Upside
Pressure of unit plate blank	12Kgf/cm2
Dimension of the board	2560mm x 1280mm
Allowed pressure	≤26Mpa
Machine net weight	17000Kgs
Control method	Automatic pumping station
Thickness of upper and lower crossbeams	900mm
Thickness of steel plate	35mm
Thickness of active crossbeam	400mm
Thickness of steel plate	20mm
Chain and roller transports device	YES
Frame structure	Composite frame for loading container
