Product Description

Automatic Cutting Machine Sawing Line

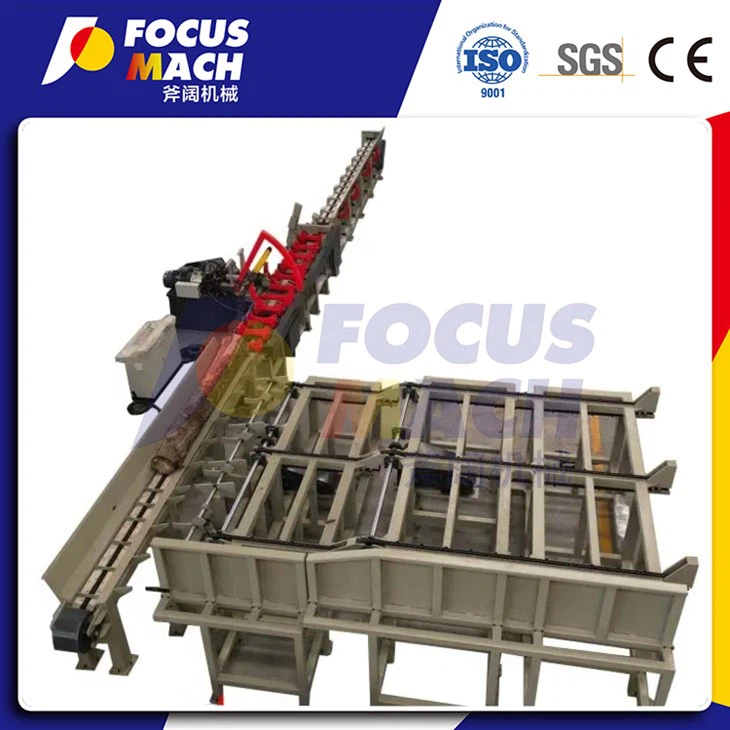

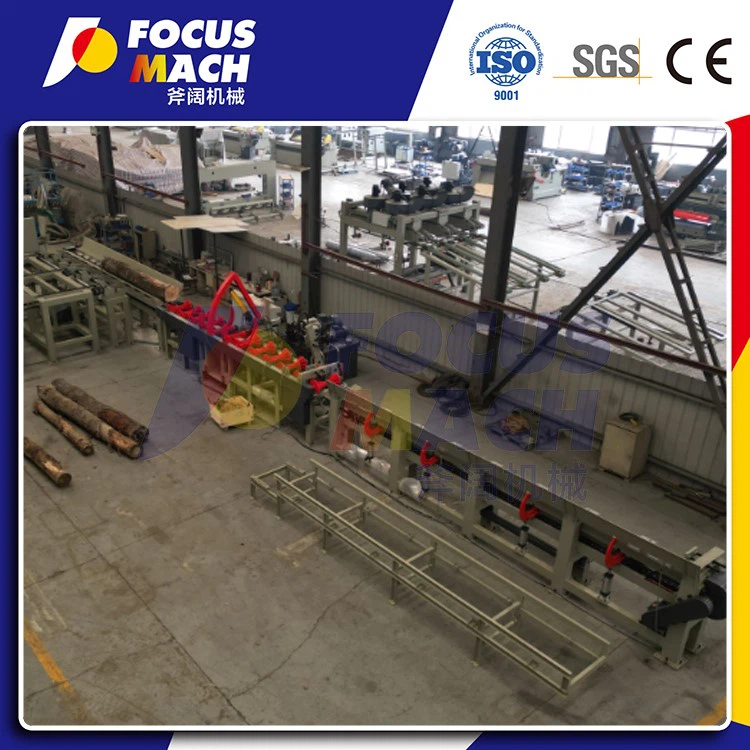

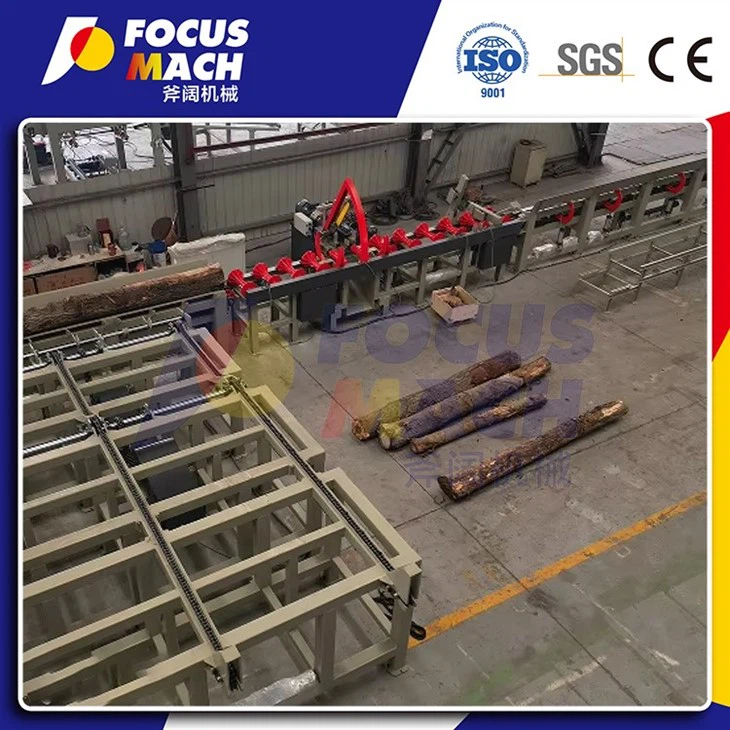

1. Our log cutting off saw line is made of five main parts: Log cross feeder ,Stepper log feeder,Log longitudinal in-feeder,saw,Log longitudinal out-feeder.
2. The first step of cross feeder is 4-chains type to store and sort the log.
3. The stepper log feeder to make sure the logs go onto the in-feeder conveyor one by one. A high efficiency it is

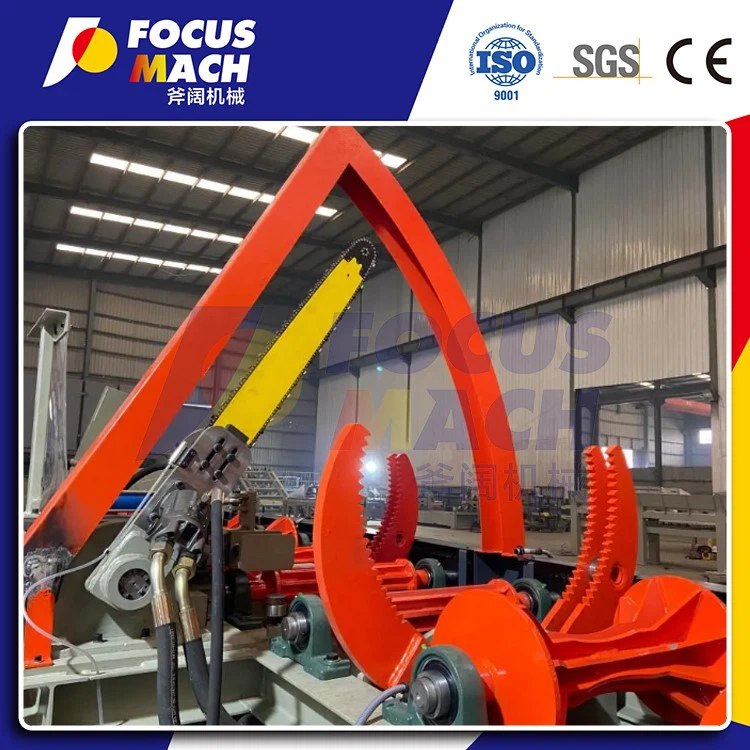

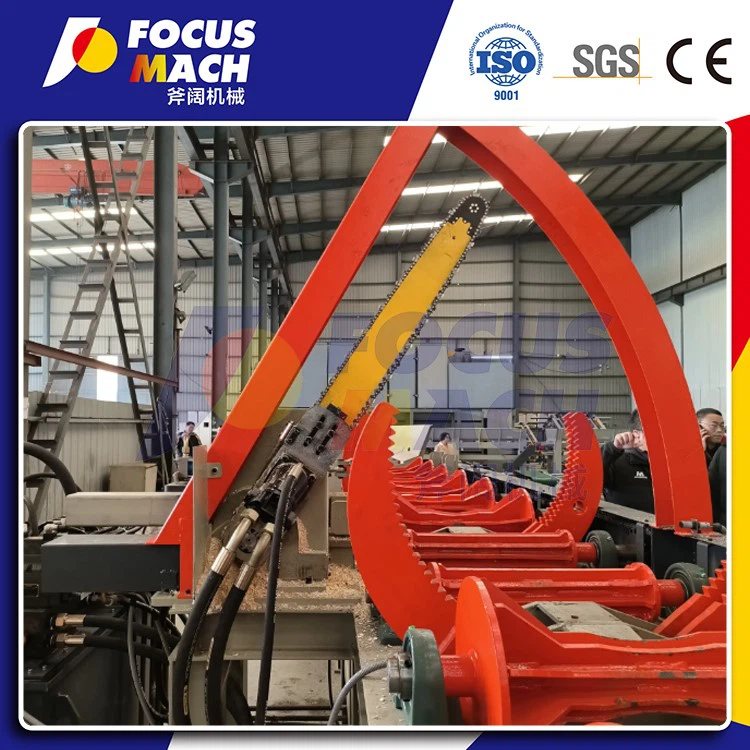

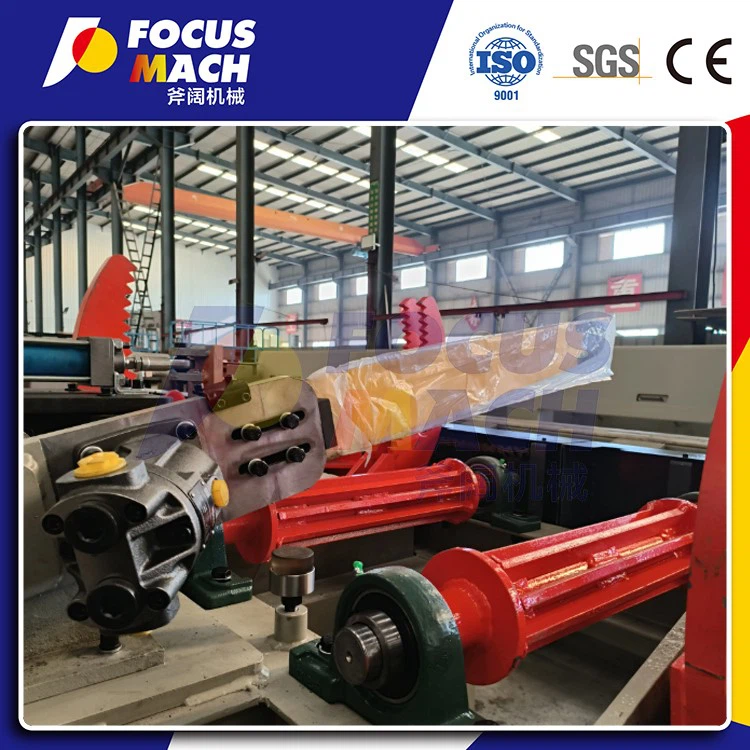

4. Saw, two types:Chain type or circular saw type ,any is available.
5. Out feeder parts,with log turn-down rig.
6. Our log cutting off sawing line is widely use in plywood mill,to cut off the long log into different lengths,such as 4ft,8ft or others.
7.Max. diameter is 500 mm.If bigger diameter, we could customize it for you.
8. The veneer peeling lines connects the out-feeding conveyor, the pusher could push the logs to the log chargers of log debarkers or veneer peeling lathes automatically.
Product Parameters
| Automatic Cutting Machine Sawing Line | |
|
Material |
Iron steel |
|
Color |
Customized |
|
Standard |
GB |
|
Grade |
High quality |
|
Brade |
Hanvy |
|
Used |
Wood mill,plywood mill etc. |
|
Max.working diameter |
500mm |
|
Maximum working length |
6000mm |
|
Saw type |
Circular blade or chain type |
|
Motor power |
38KW |
|
Default voltage |
380V/ 220V/ 415V |
