Product Description

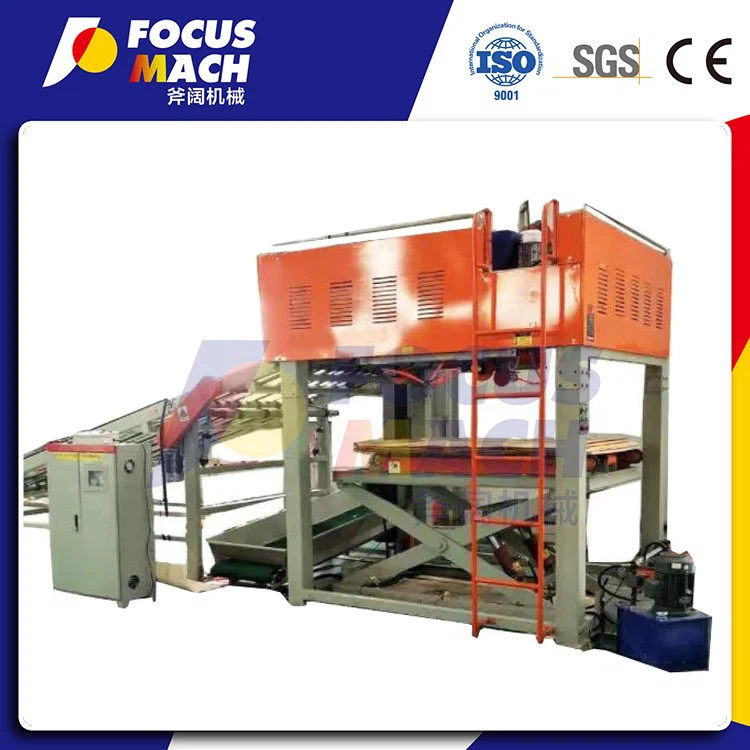

veneer automatic stacker machine
The automatic veneer stacker, with dimensions of 4/6/8 feet, connects seamlessly to the log peeling machine. Its main function is to automatically sort wood veneer after the log peeling process, thereby reducing labor costs by two workers and significantly enhancing work efficiency. This machine greatly minimizes labor costs and maximizes production efficiency.
High quality, the machine has been tested and upgraded several time, production sill mature and quality guaranteed.With First and Second Grade Veneer Grading and Sorting System.
Product Parameters
| MODEL | FM1133/5D-3 | FM1133/5D-1 | FM1126/4D-3 | FM1126/4D-1 | FM1113/8D-2 |
| Stack size | 10×5 feet | 10×5 feet | 8×4 feet | 8×4 feet | 4×8 feet |
| Maximum width | 3200mm | 3200mm | 2600mm | 2600mm | 1350mm |
| Veneer thickness | 0.8~3mm | 0.8~3mm | 0.8~3mm | 0.8~3mm | 0.8~3mm |
| Maximum speed | 120m/min | 120m/min | 120m/min | 120m/min | 120m/min |
| Maximum height | 1000mm | 1000mm | 1000mm | 1000mm | 1000mm |
| Machine total power | 86.8kW | 34.3kW | 60.4kW | 23.1kW | 42.65kW |
| Machine size | 12780×3820×3320mm | 8300×3820×320m | 10850×3160×3320mm | 7880×3160×3320mm | 14350×2250×3320mm |
| Weight | 8200kg | 5200kg | 7800kg | 3500kg | 6700kg |
Detailed Photos
Packaging & Shipping
Company Information
Why Choose Us
1. Over 30 years manufacturing experience in wood-based panel making machinery.
2. 20 years exporting experience to over 30 countries all over the world.
3. Customized machines according to every customer's actual production demand with best production solutions.
4. Free design the whole factory production plant with economy investment budget.
5. Whole process control from placing order - production - containers loading - customs documents courier - containers unloading - machines installation & debugging.
6. 2 Years quality guaranteen period & life-time free online after-sales service.
7. Professional after-sales team over 10 years oveseas installation and debugging experience.
8. Free training and guidance for workers on machines' operation and wood-based panel production technology.
