Products Description

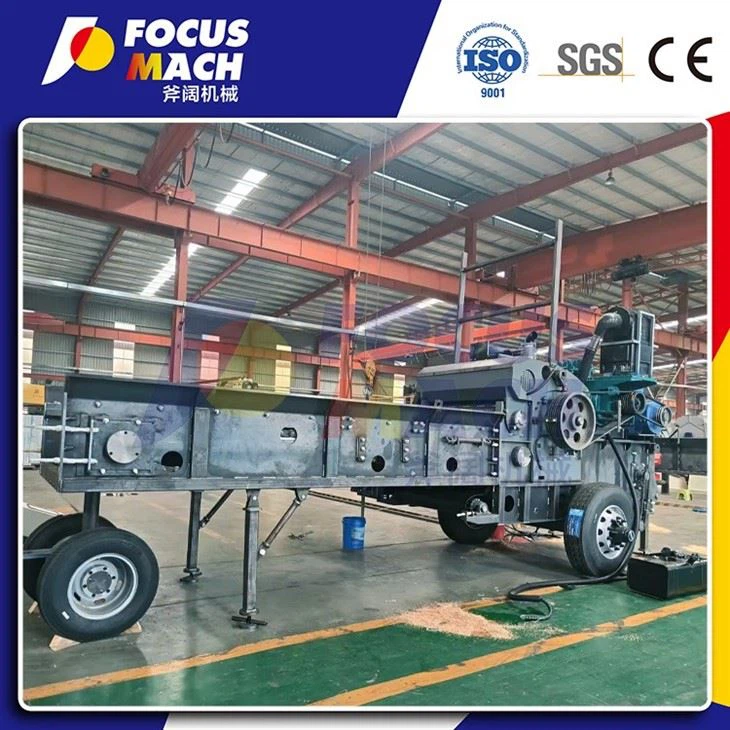

Wood Chipping Facility Machine for Pellet Production
Drum wood chipper is mainly used to crush big wood logs or wood timbers, plywood, wood branches, furniture waste, bamboos into small chips.
While drum wood chippers are usually placed next to the machine and can be fed mechnially and manually, they come with everything necessary for fully automated production operation. These machines are equipped for easy integration thanks to state-of-the-art data interfaces, and they are very user-friendly to maintain.
Chain Conveyor
Chain conveyor is adopted for feeding materials, which has a longer service life.
Feeding Roller
The feeding roller adopts Cast Steel 45, which has higher strength and good performance than welded parts.
Hammers for Special Wood
Service life: 3000-5000 ton wood chips Function:To hit waste wood pallets into small size For material with nails.
Screen
Service life:4-6 months Material: Carbon Steel Size of Holes:5cmx5cm
Product Parameters
|
Model |
Main Power (KW) |
Capacity (MT/H) |
Feeding Hopper Size (L*H) mm |
Note |
|
FMPJ216 |
55 |
3-5 |
545*230 |
The size of raw material should better less than 15cm |
|
FMPJ218 |
110 |
8-12 |
710*360 |
The diameter of raw material should better less than 30cm |
|
FMPJ1300-600 |
160 |
12-15 |
1300*600 |
It could chip raw material with nails |
|
FMPJ 1400-700 |
220 |
15-20 |
1400*700 |
It could chip raw material with nails |
|
FMPJ2113 |
315 |
20-25 |
1100*530 |
The diameter of wood should less than 45cm |
