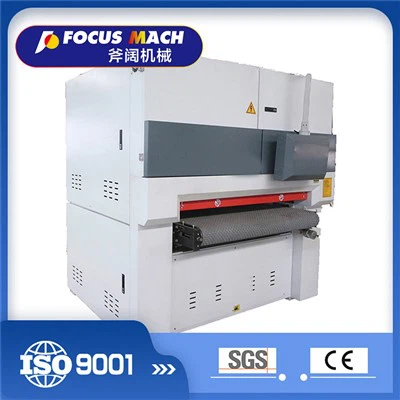

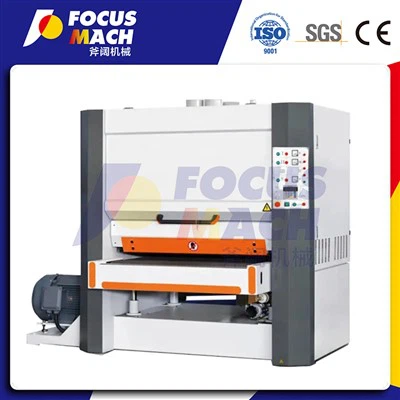

HANVY Plywood Veneer Calibrating Sanding Machine
This machine is widely used in furniture manufacturing, flooring production, and decorative panel processing, delivering consistent quality and superior surface smoothness. Its robust construction and advanced sanding mechanism make it suitable for both small workshops and large-scale industrial applications.
Equipped with an intelligent control system, the HANVY sander offers easy operation and adjustment, minimizing manual effort while maximizing productivity. The machine's optimized dust extraction system maintains a clean working environment, enhancing both efficiency and operator safety.
With high durability and low maintenance requirements, the HANVY Plywood Veneer Calibrating Sanding Machine is a reliable choice for businesses seeking precision, efficiency, and long-term performance in wood processing.
Products Description
| Parameter | Details |
|---|---|
| Model | HANVVY Plywood Veneer Calibrating Sanding Machine |
| Max. Working Width | 1300 mm (Standard, customizable) |
| Min. Working Width | 150 mm |
| Sanding Thickness Range | 0.2 - 6 mm (Adjustable) |
| Feed Speed | 5 - 25 m/min (Variable) |
| Sanding Belt Size | 1350 x 150 mm (Customizable) |
| Motor Power (Sanding) | 11 kW (Standard) / Optional higher power |
| Motor Power (Feed) | 1.5 kW |
| Voltage | 380V / 50Hz (3-Phase, customizable) |
| Dimensions (L x W x H) | 2500 x 1800 x 1500 mm |
| Dust Extraction Port | 150 mm (Standard) |
| Accuracy | ±0.05 mm |
| Applicable Materials | Plywood, MDF, Particleboard, Veneer, Solid Wood |
