Wood Waste Burning Veneer Drying Machine
video
Wood Waste Burning Veneer Drying Machine

Wood Waste Burning Veneer Drying Machine

This machine can use wood waste as fuel to dry the board, which solves the raw material problem to a large extent. The drum veneer dryer, as a crucial component in the plywood production process, plays a pivotal role in facilitating various stages of panel preparation and assembly.
Send Inquiry
Description

This machine can use wood waste as fuel to dry the board, which solves the raw material problem to a large extent.

The drum veneer dryer, as a crucial component in the plywood production process, plays a pivotal role in facilitating various stages of panel preparation and assembly. Its versatility allows for pre-drying cutting, post-cutting drying, and seamless integration with shearing and plate collecting machines to create an efficient assembly line production workflow. Specifically designed for panel drying, this machine boasts advanced electrical control technologies that ensure optimal efficiency, energy conservation, and superior drying quality. Furthermore, the incorporation of transverse circulation and vertical air injection heating methods enhances the overall veneer panel drying process by promoting uniform heat distribution and accelerated moisture removal. This results in consistently high-quality plywood products that meet industry standards for strength, durability, and aesthetic appeal. In addition to its technical capabilities, the drum veneer dryer is engineered to withstand rigorous industrial demands while maintaining operational reliability. Its robust construction and precision engineering contribute to extended service life and minimal maintenance requirements. Overall, this equipment represents a cornerstone of modern plywood manufacturing processes due to its ability to deliver consistent performance while meeting stringent quality control criteria.



Type Specifications

WOOD WASTE BURNING VENEER DRYING MACHINE

Density

550kg/m³

Thickness

1.5mm

Initial moisture content

80%

Final moisture content

10%

Load ratio

80%~85%

Working width

2800mm

Working decks

2

Length of heating section

2000*5

Length of cooling section

2000*1

Transmission speed

1.5~15m/min

Drying capacity

1.3m³/h

Steam consumption

1500kg/h

Motor installed capacity

54.7kw

For transmission

7.5kw*2

For ventilation

7.5kw*5

For cooling

2.2*1kw

Total size (L*W*H)

17307*4080*2844mm

Net weight

24000kg



Product Pictures

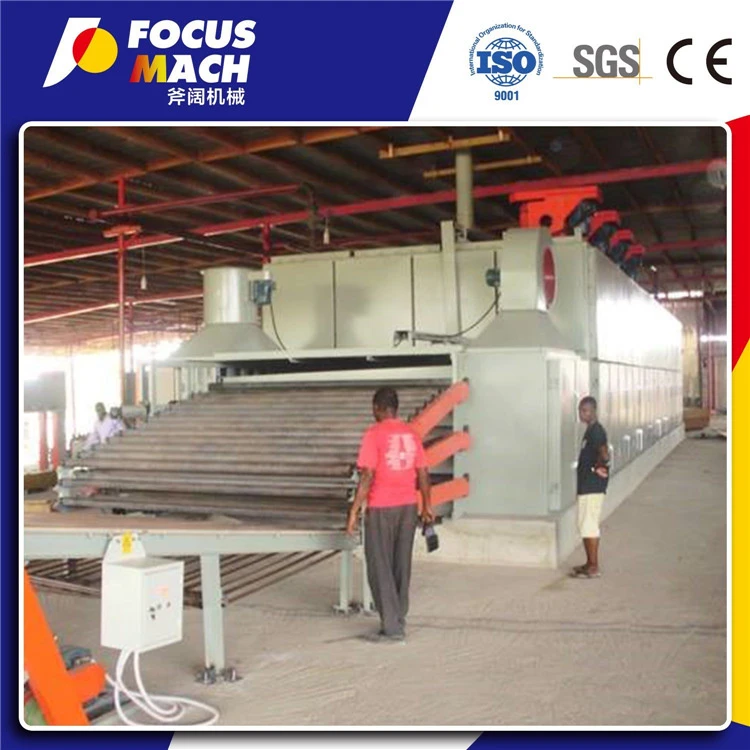

WOOD WASTE BURNING VENEER DRYING MACHINE 2

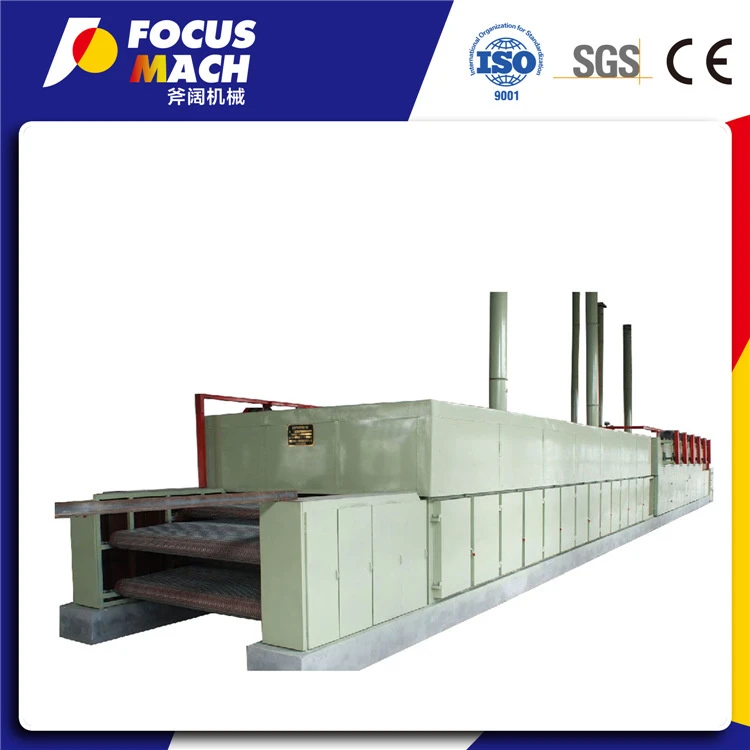

WOOD WASTE BURNING VENEER DRYING MACHINE 3

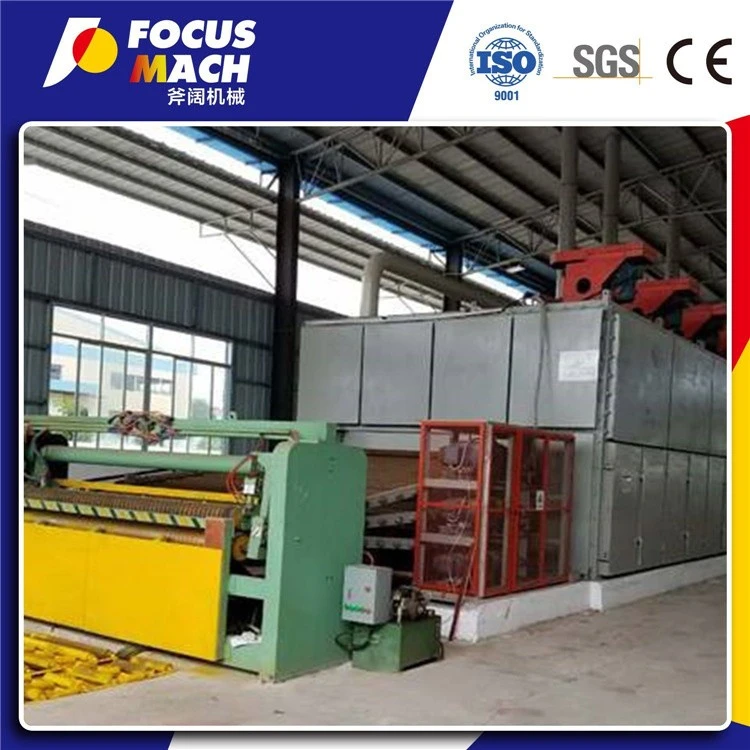

WOOD WASTE BURNING VENEER DRYING MACHINE 4

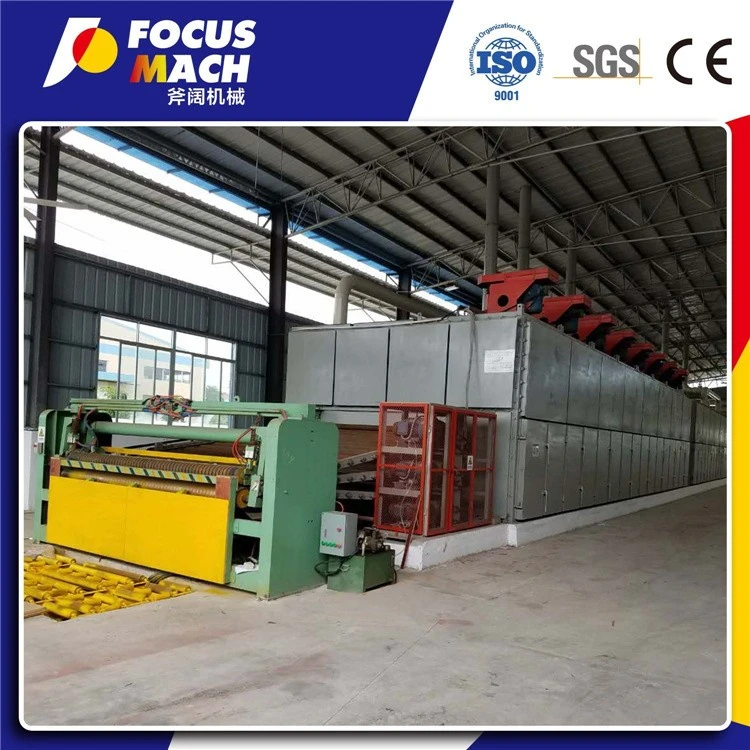

WOOD WASTE BURNING VENEER DRYING MACHINE 5
