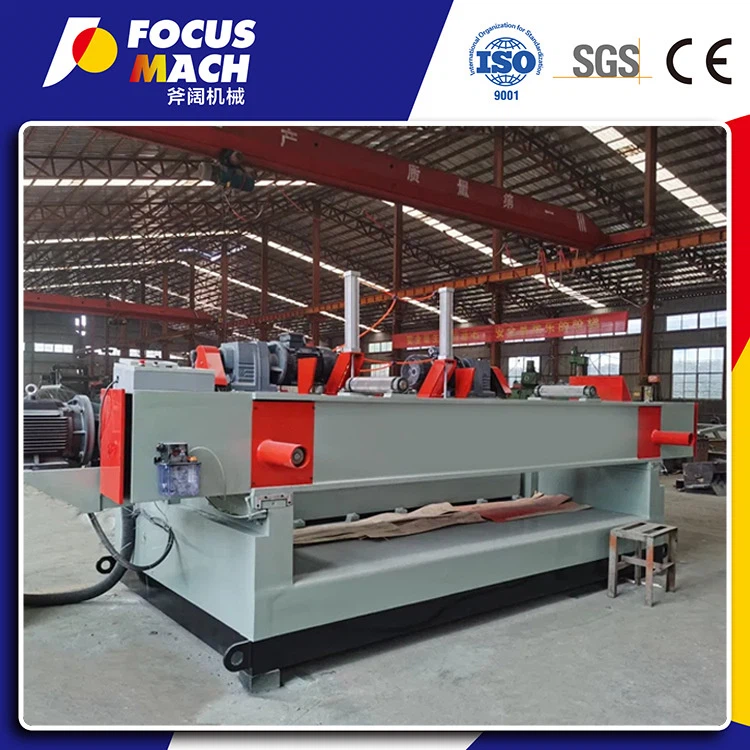

Acacia Core Veneer Peeling Machine

1. Utilize CNC cutting for precision.
2. Quenching enhances hardness and extends service life.
3. Prevent common screw wear and tear, ensuring machine operation accuracy, veneer width, and thickness consistency.

Send Inquiry

Description

Quenching guide rail

1. Utilize CNC cutting for precision.

2. Quenching enhances hardness and extends service life.

3. Prevent common screw wear and tear, ensuring machine operation accuracy, veneer width, and thickness consistency.

Total closed oil immersion guide screw

1. Annual lubrication oil addition significantly reduces lubricant usage and working time.

2. Dust and veneer chips are prevented from entering the lead screw, thereby maintaining machine precision.

Automatically adjust height and gap of knife

When changing the veneer thickness, the knife's height and gap are automatically adjusted using servo motor and inverter for precise adjustments.

Guide rail adjusting rod

Designed with both automatic adjustment and manual adjustment options. Specifically tailored to different wood densities to ensure smoother veneer surfaces and more uniform thickness during log peeling.

Peeling length	2700mm
Peeling width	660mm-1600mm
Rated voltage	415V/50HZ (Adjustable)
Maximum diameter	650mm
Minimum left diameter	38mm
Thickness	0.2-5.0mm
Speed	48meter/min
Single roller motor power	11kw * 2 set
Double roller motor power	11kw * 2 set
Feeding motor power	11kw
Clipping and rubber roller power	4kw+2.2kw
Total power	61.2kw
Single and double roller diameter	125mm
Size of knife	270018016mm
Overall size	580023001500mm
Total weight	12000kg
