It is mainly for slicing solid wood, engineer wood and other composite board, working efficiency is high, and veneer thickness is uniform. It is widely adopt in decorative veneer of plywood, furniture, flooring, construction industry and so on.
1. Main motor adopts frequency motor, with famous brand inverter. Energy can be feed back by the special design, and cutting speed improved to be 80pcs/min.
2. To guarantee precise veneer thickness, we use ball screw with servo motor. To avoid veneer scratch we used auto blade back system.
3. Use hydraulic system, log clamping become more convenient for operator and improves efficiency.
4. Control cabinet is combined with electric and hydraulic system, make it easy for single operator.
5. Automatic hydraulic blade holding system, and log holder auto turn back system are fitted there, grinding and replacing the blade become so easy and quickly.
6. Heating system in blade holder and press bar, avoids stain in the veneer to improve veneer quality.
7. Pneumatic brake systems can stop the machine at any required position, and restart promptly. It is convenient for the operator to adjust the log, and safety also guaranteed.
8. Self lubricating center can automatically apply lubricant regularly to every moving mechanism, guarantee movement normally smoothly and precisely.
|
MODEL |
BB1332 |
BB1335 |
|
Max allowed wood size |
3000*450*500mm |
2500*500*500mm / 3300*400*500mm |
|
Size of the knife |
3200*200*19mm |
3500*200*19mm |
|
Slicing thickness |
0.2-3mm |
0.2-3mm |
|
Slicing speed |
max.80pcs/min |
18-80pcs/min |
|
Wood clamping method |
Hydraulic control |
Hydraulic control |
|
Total power |
41.25kw |
50.25kw |
|
Main motor |
30kw |
37kw |
|
Hydraulic motor |
5.5kw |
5.5kw |
|
Knife-holder feeding motor |
4.5kw servo motor |
5.5kw servo motor |
|
Circulating heat water motor |
0.75kw |
0.75kw |
|
Veneer transport motor |
0.5kw |
1.5kw |
|
Size of body |
6800*4600*3700mm |
6800*5000*3700mm |
|
Net weight |
21T |
24T |

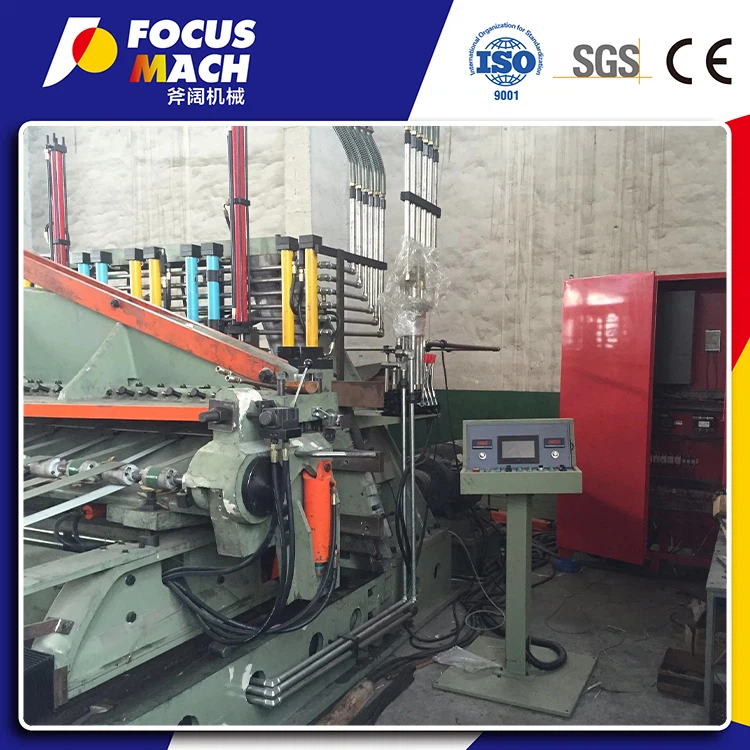

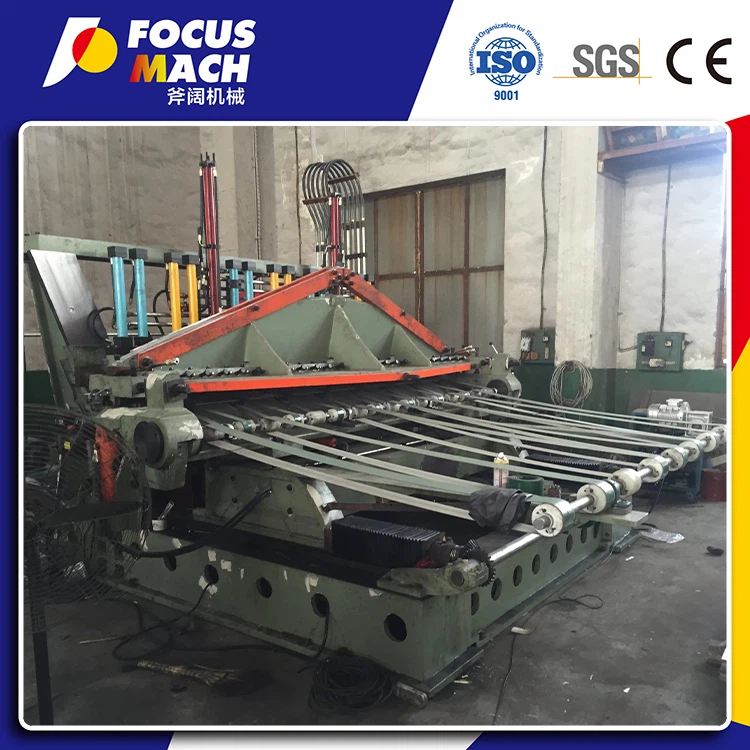

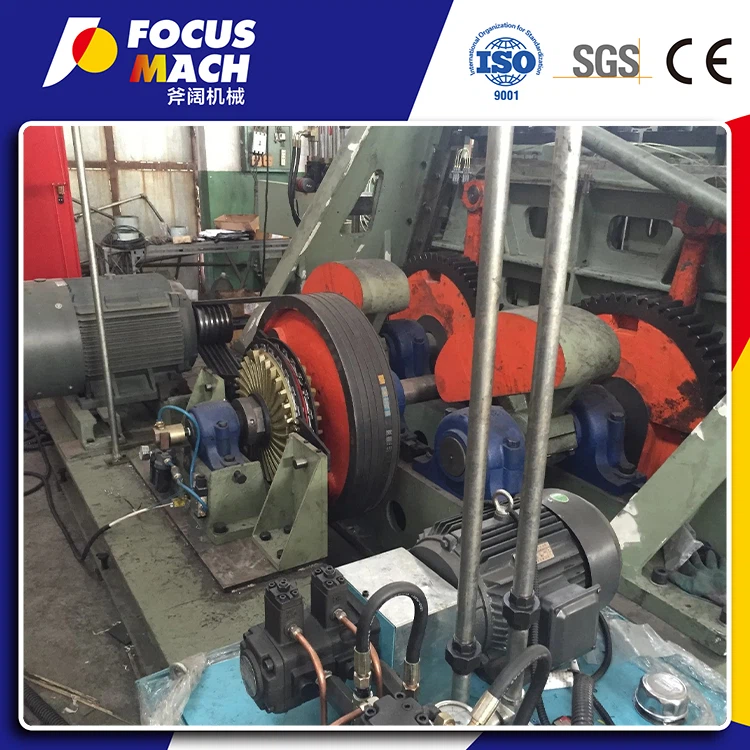

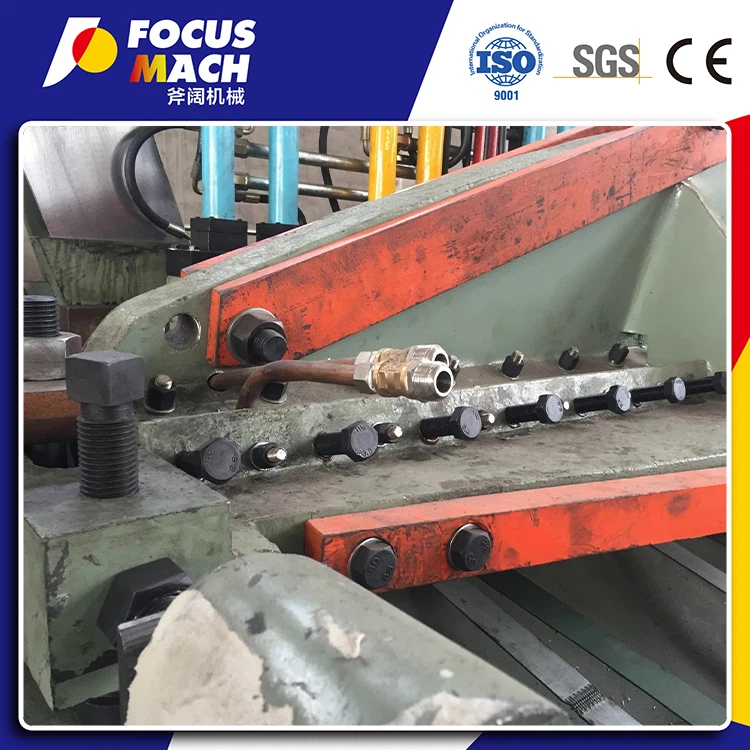

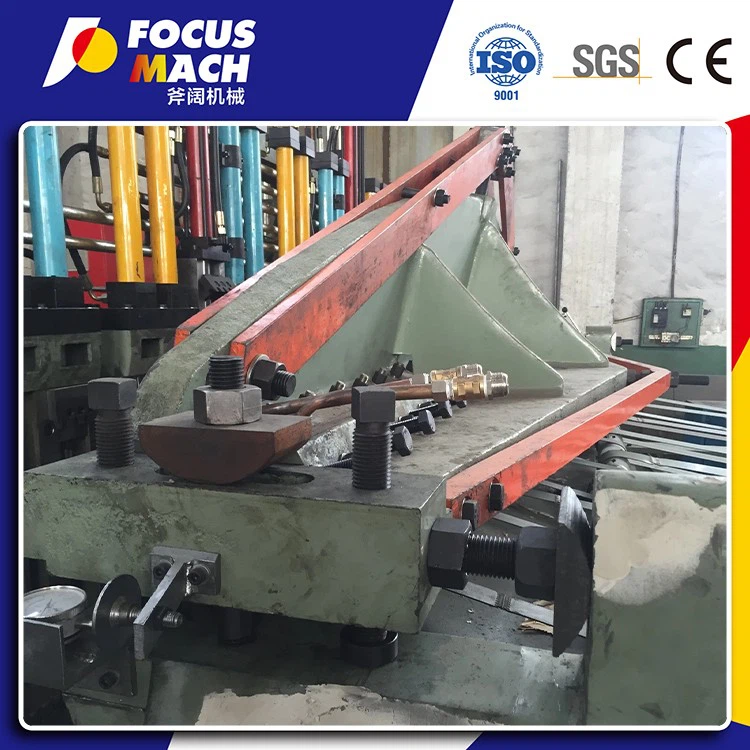

Product Pictures
