Products Description
Feature:

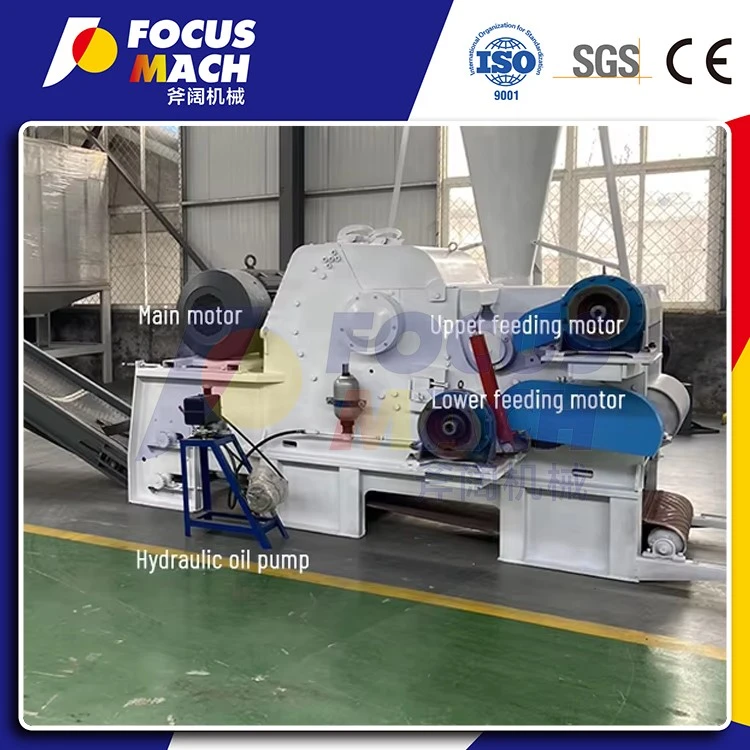

Drum wood chipper machine is the specific equipment of producing wood chippers it included the machine body knife /roller the upper and lower feed rollers belt conveyor hydraulic systems knife roller will install two or four six rotary knifes according to the different thickness and diameter of the materials which cut The upper feed roller assembly can use the hydraulic system to fluctuate within a certain range
The machine body made of high strength steel welded together it is the supporting foundation of the whole machine It don't need built new foundation save money and convenient flexible This products are widely used in wood shaving plant highly MDF plant straw plants biomass power plants and other industrial wood production and manufactures it is the first choice device before the preparation steps

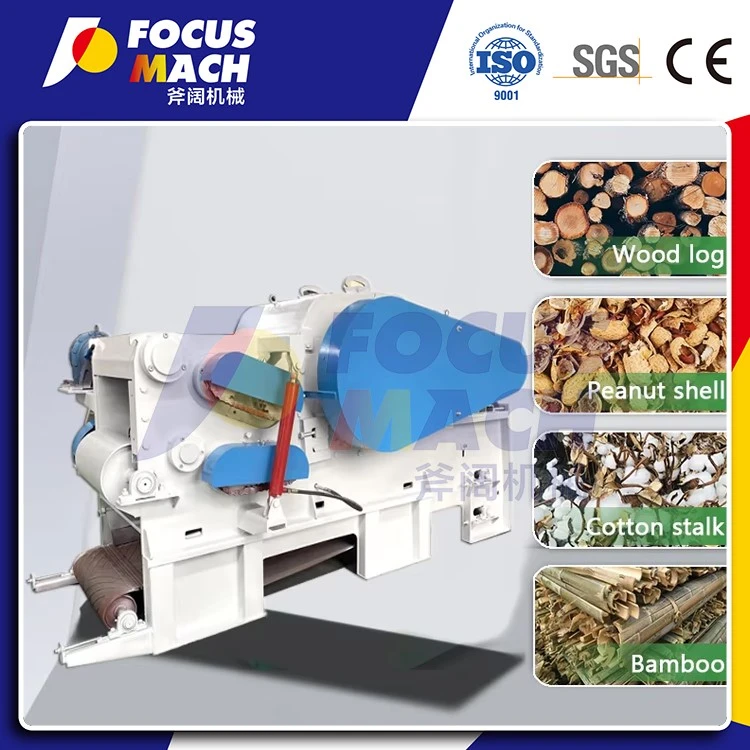

The wood chipper is the rough breaking section that breaks large raw materials( tree branch, pallet, Waste wood, wood plank and ect )into small pieces of 3-5cm size.
Product Parameters
| Model | FM/AN216 | FM/AN 218 | FM/AN 2113 |
| MAX Size of feed port(mm) | 230×540 | 350*700 | 450*700 |
| Rotate knifes(pcs) | 3 | 3 | 3 |
| Maximum diameter of raw material(mm) | 230 | 350 | 450 |
| Wood chips size(mm) | 20-50 | 20-50 | 20-50 |
| Capacity(t/h) | 3-6 | 7-10 | 10-15 |
| Main motor power(kw) | 55 | 90/110 | 160/185 |
| Feeding roller motor power(kw) | 3+4 | 4+5 | 7.5+5.5 |
