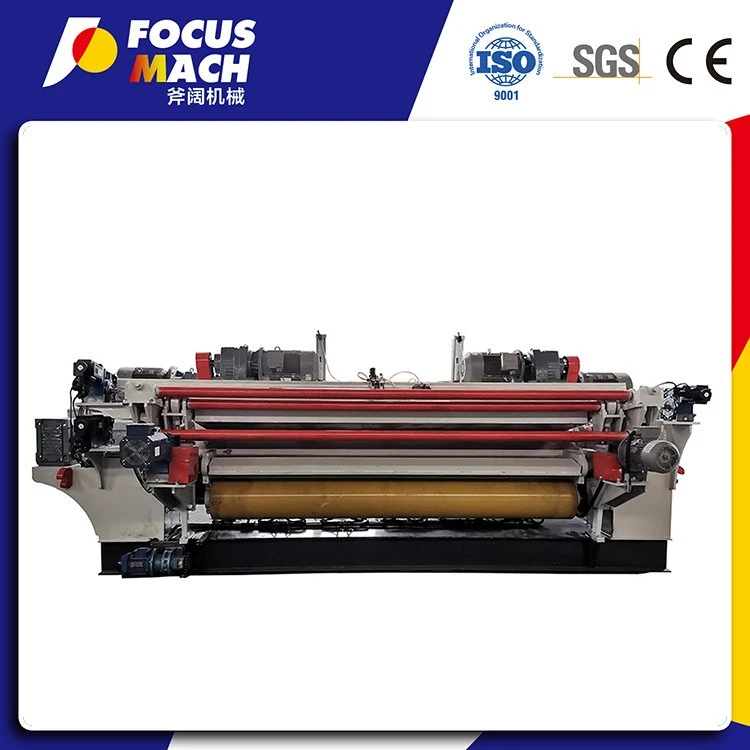

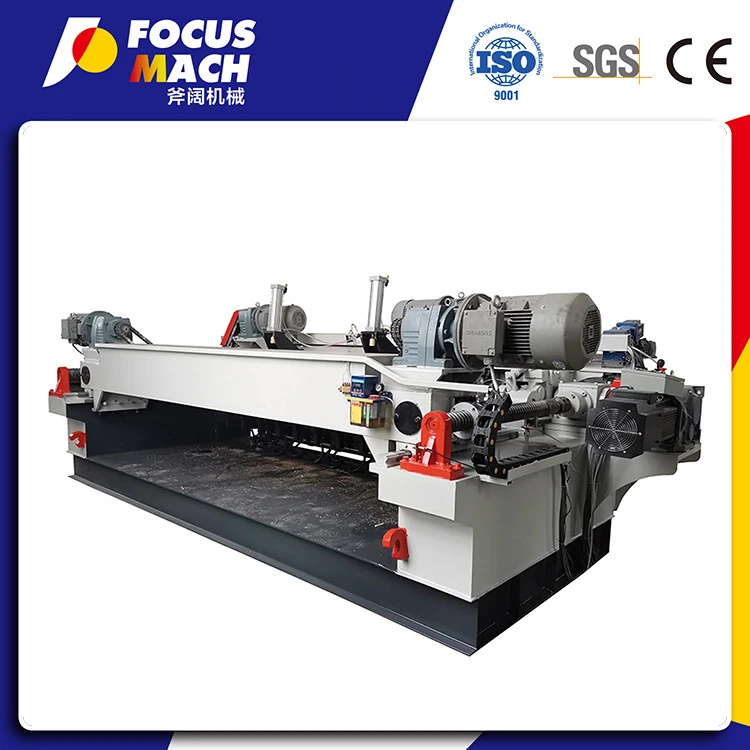

Birch Veneer Peeling Machine

Send Inquiry

Description

The machine's innovative design incorporates a dual-power distribution system, which significantly enhances the stability and power of the cutting process. This results in improved site utilization and ensures optimal performance. The incorporation of an advanced high-strength wear-resistant screw, wire master drive, and multi-function CNC box not only simplifies operation but also enables automatic skin cutting, thereby reducing maintenance requirements. This streamlined approach not only saves labor and materials but also guarantees consistent board quality and accuracy. Furthermore, the multifunctional instrument box is equipped with a servo motor for the main motor, while the tool table utilizes a casting tool table to enhance smoothness during operation. These enhancements contribute to more precise plate uniformity and expand the processing range through a technologically advanced and stable transmission system. In summary, these features collectively elevate operational efficiency by providing enhanced precision, reliability, and versatility in meeting diverse processing needs across various industries.

Max. peeling length	2600mm
Max. cutting diameter	500mm
Thickness range	0.35mm-5mm
Peeling knife	270018016mm
Cutting knife	270014012.7mm
Core diameter of remaining	25-32mm
Diameter of single roller	125mm
Diameter of double roller	125mm
Diameter of guide screw	90mm
Power of Single roller	2*7.5kW
Power of double roller	2*11kW
The knife gap motor	1.5kw (servo motor)
The knife angle motor	1.5kw (servo motor)
Feeding motor	15kW (servo motor)
Clipper motor	4kw (servo motor)
Hydraulic station	7.5kw
Conveyor motor	2.2kW
Speed	40M-80m/minute (adjustable)
Weight diameter	9000kgs
Overall dimension	560020001800mm
