Cylinders Upside Cold Press

Send Inquiry

Description

The pressure mechanism is situated at the upper section of the entire cold press and is typically mounted on the upper or rising beam. During cold pressing operations, the force is transmitted from the top to the lower table or mold. This configuration ensures precise and uniform application of pressure across the material being processed, resulting in consistent product quality. Additionally, it allows for efficient energy transfer and minimal loss during the pressing process. In industrial settings, this design has proven to be highly effective in achieving desired compression levels while minimizing wear and tear on equipment components. The strategic placement of the pressure mechanism also facilitates easy access for maintenance and adjustments as needed, contributing to overall operational efficiency. Furthermore, advancements in technology have led to innovations in pressure mechanisms that offer enhanced control and monitoring capabilities. These developments enable operators to fine-tune parameters such as pressure distribution and duration with a high degree of accuracy, leading to improved productivity and product performance. Overall, the careful positioning and functionality of the pressure mechanism play a crucial role in optimizing cold pretreatment.

Nominal pressure	8000KN (800 TONS)
Boards in-feeding direction	Horizontal
Max. opening	1500mm
Dimension of working platform	1380mm x 2700mm
Dimeter of plunger cylinders	Ф320mm (Wuxi)
Number of plunger cylinders	2 Pcs
Diameter of side helpful cylinders	Ф60mm (Wuxi)
Number of side helpful cylinders	2Pcs
Allowed pressure of plunger cylinders	≤26Mpa
Stroke of plunger cylinders	1000mm
Position of plunger cylinders	Upside
Pressure of unit plate blank	12Kgf/cm2
Dimension of the board	2560mm x 1280mm
Allowed pressure	≤26Mpa
Machine net weight	17000Kgs

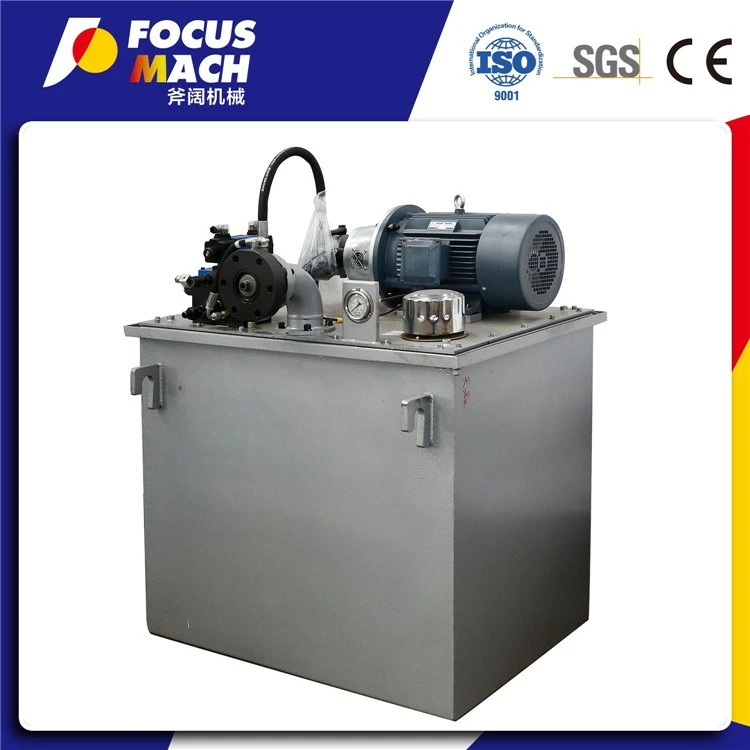

Control method	Automatic pumping station
Thickness of upper and lower crossbeams	900mm
Thickness of steel plate	35mm
Thickness of active crossbeam	400mm
Thickness of steel plate	20mm
Chain and roller transports device	YES
Frame structure	Composite frame for loading container
