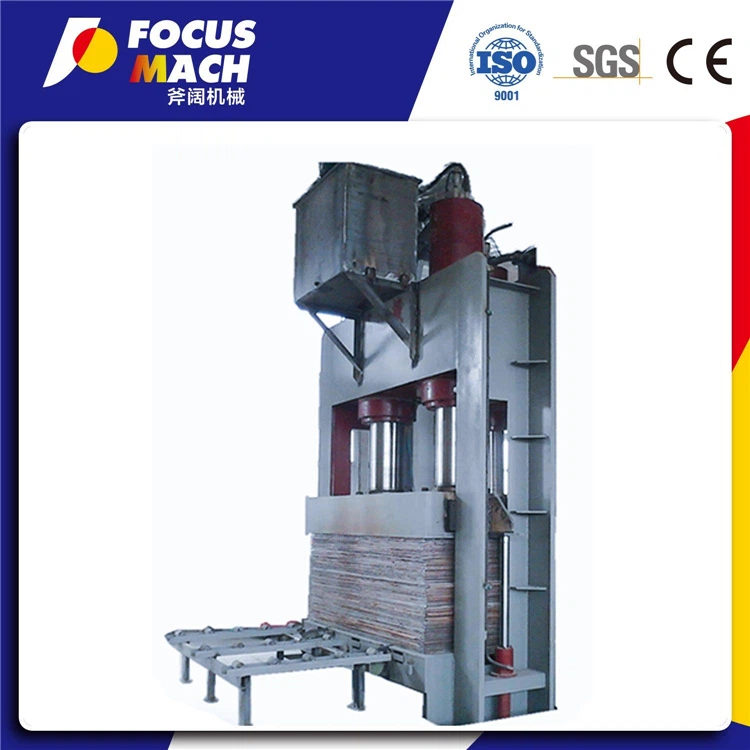

Hydraulic Cold Press Machine

Send Inquiry

Description

The cold press machine, as an integral part of the plywood production line, plays a pivotal role in optimizing the manufacturing process. Our products are equipped with domestically renowned motors and high-quality electrical components which guarantee reliability and longevity. The sturdy fuselage not only enhances overall stability but also contributes to the durability of the machine. Furthermore, the aluminum alloy beam offers superior precision and straightness compared to cast iron alternatives. One of our key advantages lies in our ability to customize this machine according to specific requirements or preferences of our clients. This flexibility allows us to cater to a wide range of needs within the industry. In conclusion, our wood cold press machines stand out due to their exceptional performance capabilities combined with advanced safety features as well as their adaptability through customization options.

Nominal pressure	6000KN (600 TONS)
Boards in-feeding direction	Horizontal
Max. opening	1500mm
Dimension of working platform	1380mm x 2700mm
Dimeter of plunger cylinders	Ф320mm (Wuxi)
Number of plunger cylinders	2 Pcs
Diameter of side helpful cylinders	Ф60mm (Wuxi)
Number of side helpful cylinders	2Pcs
Allowed pressure of plunger cylinders	≤26Mpa
Stroke of plunger cylinders	1000mm
Position of plunger cylinders	Upside
Pressure of unit plate blank	12Kgf/cm2
Dimension of the board	2560mm x 1280mm
Allowed pressure	≤26Mpa
Machine net weight	17000Kgs
Control method	Automatic pumping station
Thickness of upper and lower crossbeams	900mm
Thickness of steel plate	35mm
Thickness of active crossbeam	400mm
Thickness of steel plate	20mm
Chain and roller transports device	YES
Frame structure	Composite frame for loading container
