8FT Glue Spreader For Plywood Veneer/glue Spreading Machine
video
8FT Glue Spreader For Plywood Veneer/glue Spreading Machine

8FT Glue Spreader For Plywood Veneer/glue Spreading Machine

Plywood gluing machine is one of the main equipment for the production of plywood, the main function is to evenly coat the modulated adhesive to the veneer surface, so that different layers of the board can be closely combined to form a stable structure and qualified strength of the plywood
Send Inquiry
Description
glue
8FT Glue Spreader for plywood veneer/glue spreading machine

1.Accurate coating, uniform: Using advanced roller design and precision gap adjustment system, the glue can be coated on the board with extremely uniform thickness, and the deviation is controlled within a very small range. Whether it is thin or thick board, it can achieve precise gluing to ensure that the bond strength of each layer of plywood is uniform, effectively reducing the rate of defective products, improve product quality, and let your plywood stand out in the market.

2.Automatic control, one-click operation: Intelligent control system is introduced to realize the full automation of the glue coating process. Just set the parameters of coating thickness and speed on the operation panel, and the machine can automatically complete a series of operations such as feeding, gluing and unloading. Operators do not need to have complex skills, easy to get started, greatly reducing labor costs and the risk of operational errors.



Products Description



Size & number of coating roller

310mm*2

Size & number of squeeze roller

273mm*2

Glue roller length

2700mm

Line speed

20-30m/min

Transmission method

Gears and chains

Max panel thickness

30mm

Weight

1500kg

Roller material

Stainless steel

Reduction gears

250#

Total Power

5.5kw

Machine type

Double-sided glue

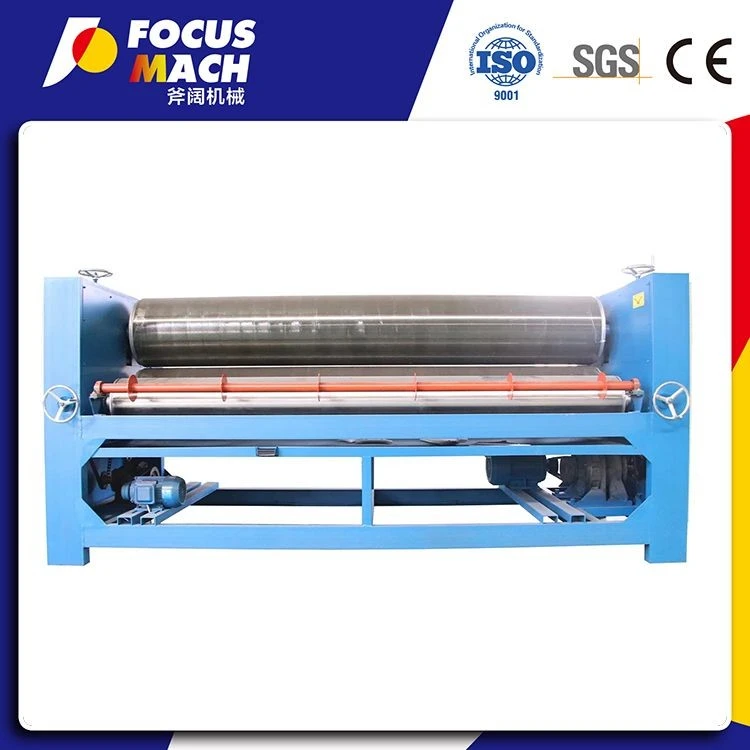

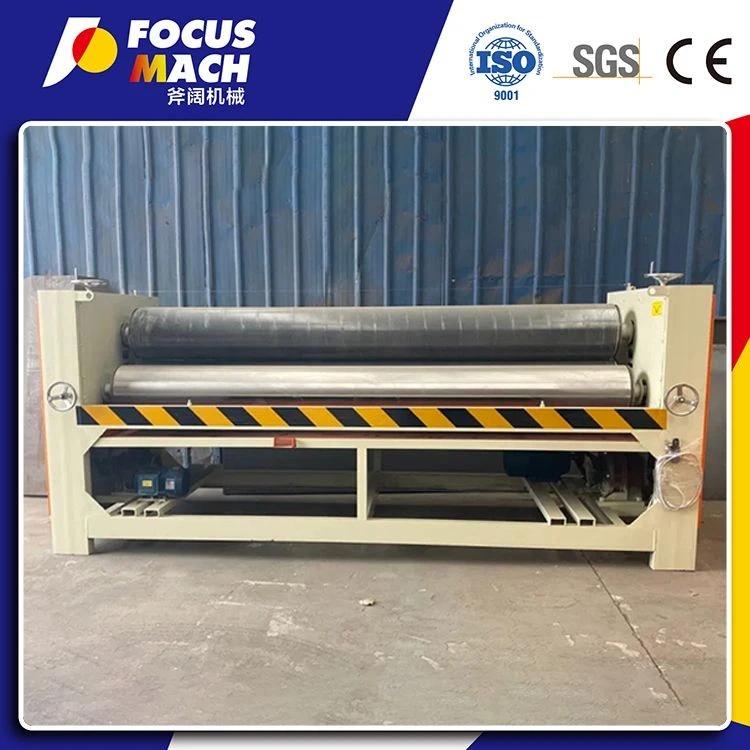

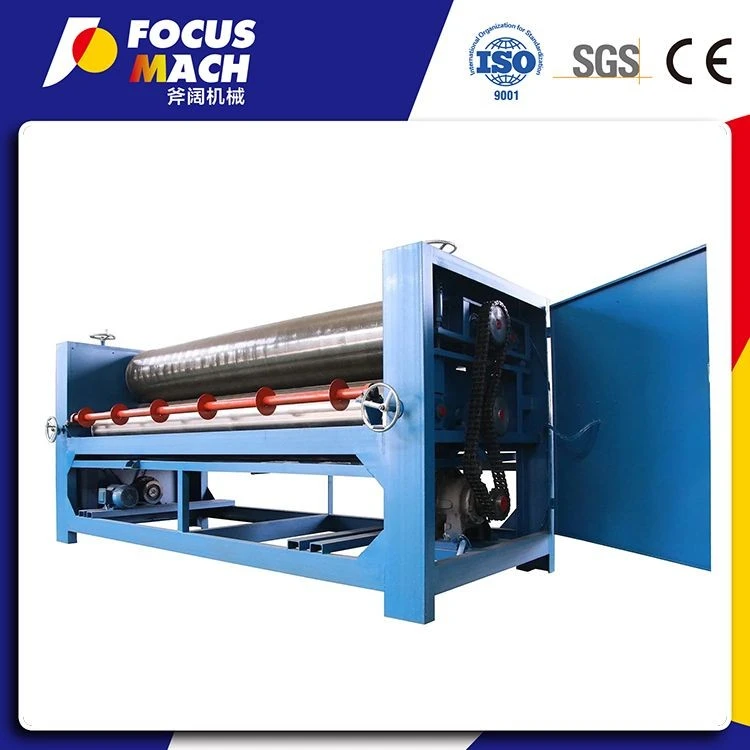

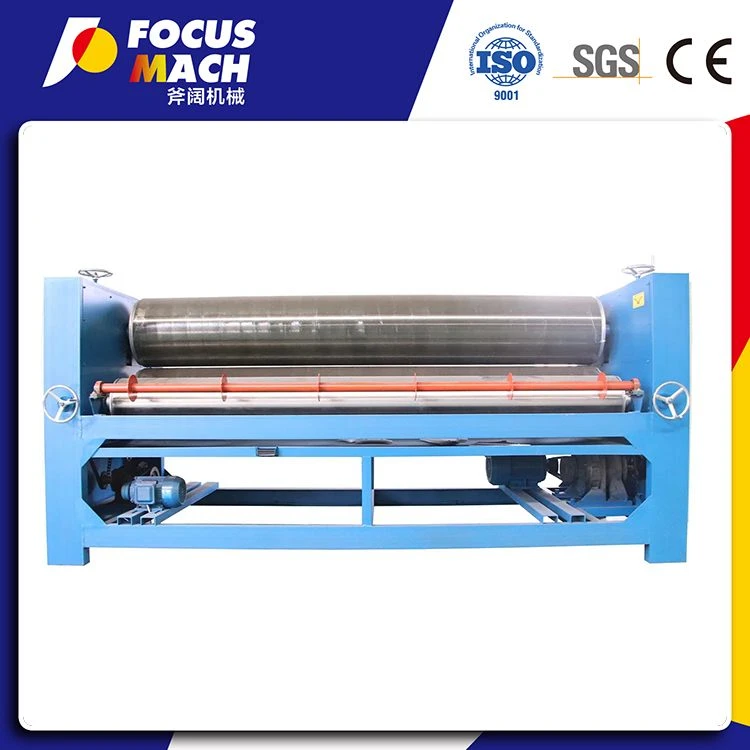

Product PHOTOS



glue

glue1

glue2

glue3

glue4

EXHIBITION




KHPZ

COMPANY PROFILE




Shandong-Focus-Machinery-Co-Ltd- 7

PACKING AND SHIPPING




Shandong-Focus-Machinery-Co-Ltd- 5

Hot Tags: 8ft glue spreader for plywood veneer/glue spreading machine, China 8ft glue spreader for plywood veneer/glue spreading machine manufacturers, suppliers, factory, glue spreader machine, Mechanical Glue Spreader Machine, Double Sides Glue Spreader Machine, High Precision Glue Spreader Machine, Penumatic Glue Spreader Machine, Woodworking Glue Spreader Machine
