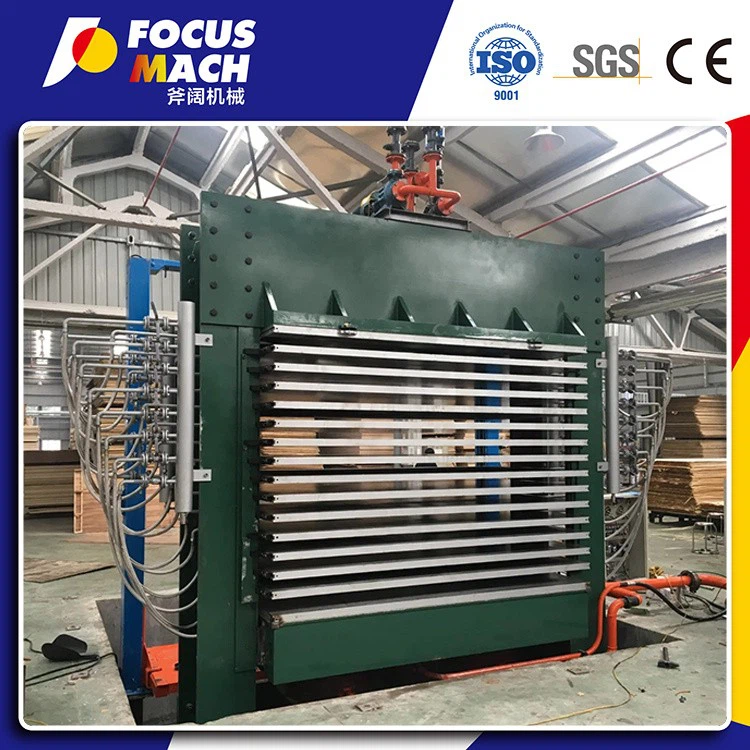

This advanced hot press machine is primarily utilized in the manufacturing process of plywood. Its core functionality lies in the precise and effective pressing of the veneers that have been adhered with glue into a unified and solid form under extremely intense high pressure and elevated high temperature conditions. This remarkable machine is furnished with a highly efficient hydraulic system that ensures smooth and seamless operation. The available heating methods encompass not only the conventional steam heating but also the efficient hot oil heating, thereby offering users a wide range of flexible options based on their specific and unique requirements. It possesses a robust and sturdy frame that provides unwavering stability and durability throughout the operational process. The closing speed is astonishingly fast, significantly enhancing the overall productivity and efficiency of the production line. It also comes with an independent control cabinet that is equipped with a user-friendly touch screen interface and is outfitted with high-quality electrical components to ensure reliable and uninterrupted performance. The standard sizes of the platen available are 4x8ft, 5x5ft, 3x6ft. However, customization is readily feasible to meet the diverse and distinct production needs of different clients. The maximum daylight is 15, and once again, customization can be expertly arranged to accommodate special and exceptional production circumstances. The main structure of this machine is meticulously and expertly welded using thick steel plates and undergoes a specialized surface treatment to guarantee exceptional quality and long-term durability.
|
Hot press Plate Size |
2700*1370*52mm, 16 pieces |
|
Opening Size |
70mm |
|
Hydraulic Pistons Diameter |
2 units, diameter 320mm, stroke 1050mm |
|
Nominal Pressure |
400 Tons |
|
No-Load Closing Time |
About 30 seconds |
|
Control Mode |
Manual or automatic |
|
Hydraulic System Limit Pressure |
25Mpa |
|
Low Pressure Pump |
250ml/ rev, 11KW |
|
High Pressure Pump |
10ml/rev, 5.5KW |
|
Heating Medium |
Steam or heat transfer oils |
|
Machine Size |
3560*1370*4590mm |
|
Gross Weight |
38500KG |
