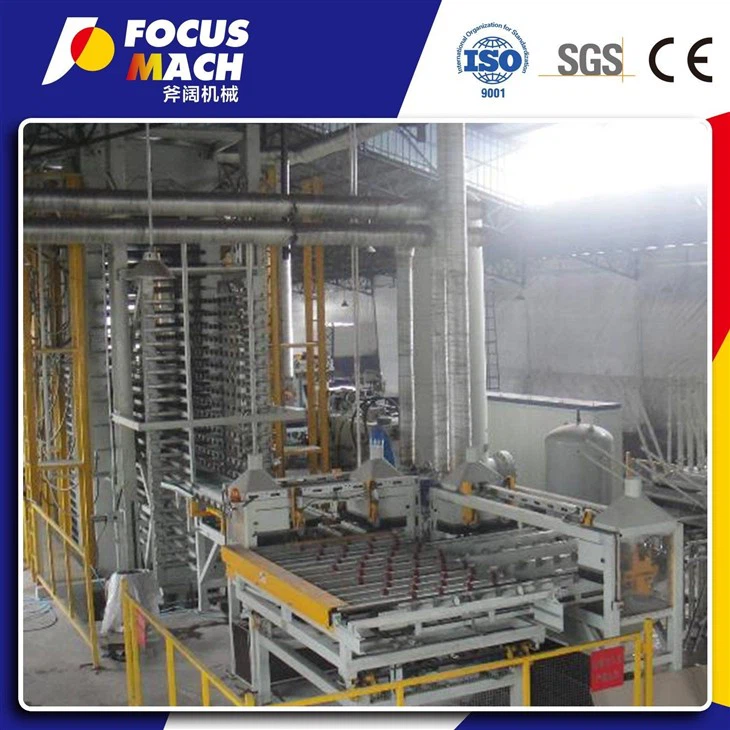

Laminating Plywood Wood Machine 500T Hot Press Machine
Key Features:
Multi-Layer Design: 15 daylight openings enable simultaneous pressing of multiple panels, maximizing productivity.
Adjustable Temperature (100°C–200°C): Compatible with various adhesives (e.g., phenolic resin) for optimized curing.
Customizable Platen Size: Standard dimensions range from 1.3m×2.5m to 1.5m×3m, adaptable to specific needs.
Heating Options: Supports steam, thermal oil, or electric heating for flexible operation.
Precision Control: Equipped with PLC/automatic systems for consistent pressure and temperature management.
Safety & Efficiency: Includes hydraulic balancing, pressure relief valves, and fast cycle times (5–15 minutes per batch).
Ideal for woodworking factories seeking high output, reliability, and automation in panel processing.
Products Description
| Parameter | Value | Description |
|---|---|---|
| Type | Plywood Hot Press | Hydraulic or steam-heated press for bonding plywood layers under heat and pressure. |
| Nominal Pressure | 500T (tons) | Maximum pressing force (500 metric tons). |
| Number of Layers | 15 | Daylight openings for simultaneous pressing of multiple plywood stacks. |
| Platen Size (L×W) | Customizable | Typical sizes range from 1.3m×2.5m to 1.5m×3m (varies by manufacturer). |
| Working Temperature | 100°C–200°C | Adjustable based on adhesive type (e.g., phenolic resin requires ~140°C). |
| Heating Method | Steam/Oil/Electric | Common heat transfer methods for platens. |
| Opening Stroke | 500–800mm | Vertical distance between platens when fully open. |
| Cycle Time | 5–15 minutes | Depends on plywood thickness and adhesive curing time. |
| Control System | PLC/Automatic | Modern presses feature programmable logic controllers for precision. |
| Power Supply | 380V/50Hz (or customized) | Standard for industrial machinery in most regions. |
