Plywood Machine Hot Press Machine For Particle Board
video
Plywood Machine Hot Press Machine For Particle Board

Plywood Machine Hot Press Machine For Particle Board

Easy Operation: This hot press machine is designed for user-friendly operation, allowing users to efficiently produce high-quality plywood without requiring extensive technical expertise.
Durable Construction: With a robust construction and a weight of 19,000 kg, this machine is built to withstand heavy-duty use in manufacturing plants and advertising companies.
Send Inquiry
Description



Products Description

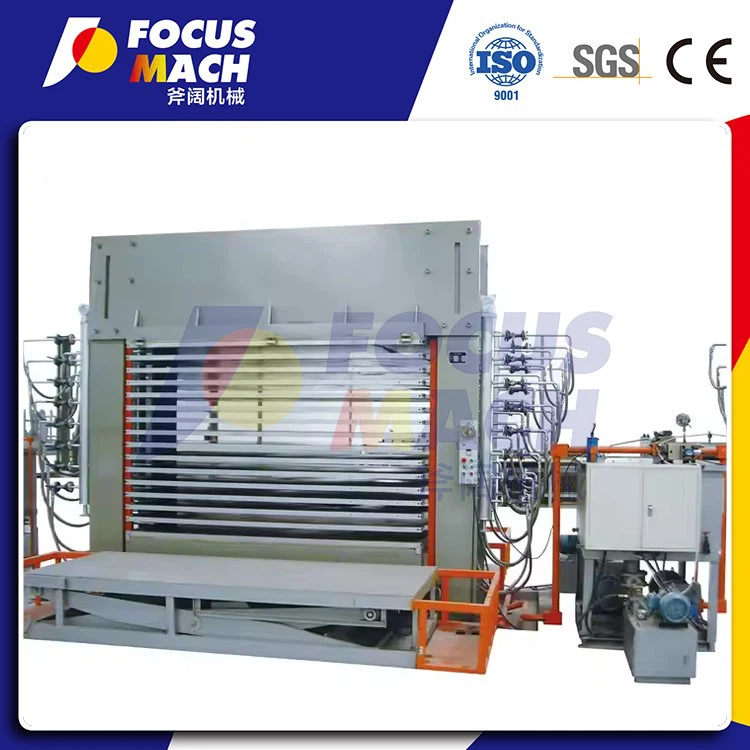

0214-21

Plywood Machine Hot Press Machine for Particle Board



Efficient production: Multiple slabs can be hot pressed simultaneously through multi-layer design and automated control to improve production efficiency. The advanced hot press also has a fast lifting speed and a short hot pressing cycle, which can complete the production of a large number of plywood in a short time.
Quality stability: can accurately control the temperature, pressure and time and other parameters, so that the plywood parts of the heat and pressure uniform, so as to ensure the plywood bonding strength, flatness and dimensional stability and other quality indicators.
Strong adaptability: According to different production needs, adjust the pressure, temperature, hot pressing time and other parameters of the hot press, suitable for the production of plywood of different thickness, material and use.
High degree of automation: equipped with advanced control system, just set the parameters on the operation interface, you can automatically complete the whole production process such as feeding, hot pressing, blanking, etc., reduce manual operation, reduce labor intensity, and improve the stability and reliability of production.



Product Parameters





Model FM814X8/6-II
Nominal Gross Pressure 6300 KN
Opening 1800 mm
Diameter of Cylinder Φ400 mm Made in wuxi
Numbers of Cylinder 2 pcs
Pressurization ≤25 Mpa
Stroke of Cylinder 1000 mm
Cylinder Position Up
Diameter of the lifting cylinder Φ 80 mm
Numbers of the lifting oylinder 2 pcs
Pressurization ≤16 Mpa
Stroke of lifting Cylinder 1000 mm
Lifting cylinder Position Bottom
Unit Pressure of board 18.3 kgf/cm 2
The flow of the post pump About 30L/min
Allowed Pressure ≤26 Mpa
Power of the post pumpe 18.5 KW
Power of the transfer motor 2.2 KW
transfer the speed 6 m/min
Net Weight 19,000 kg





Products Description

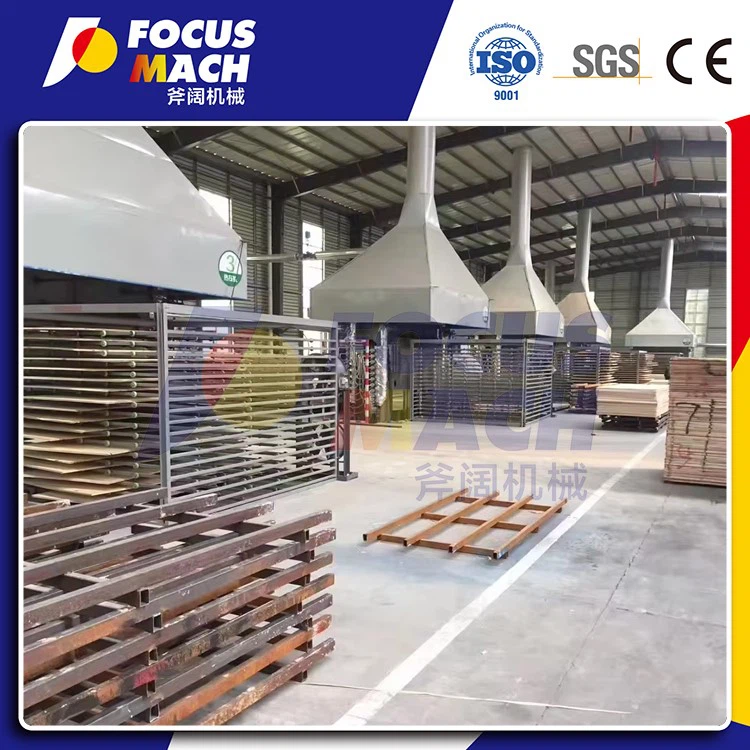

0214-25

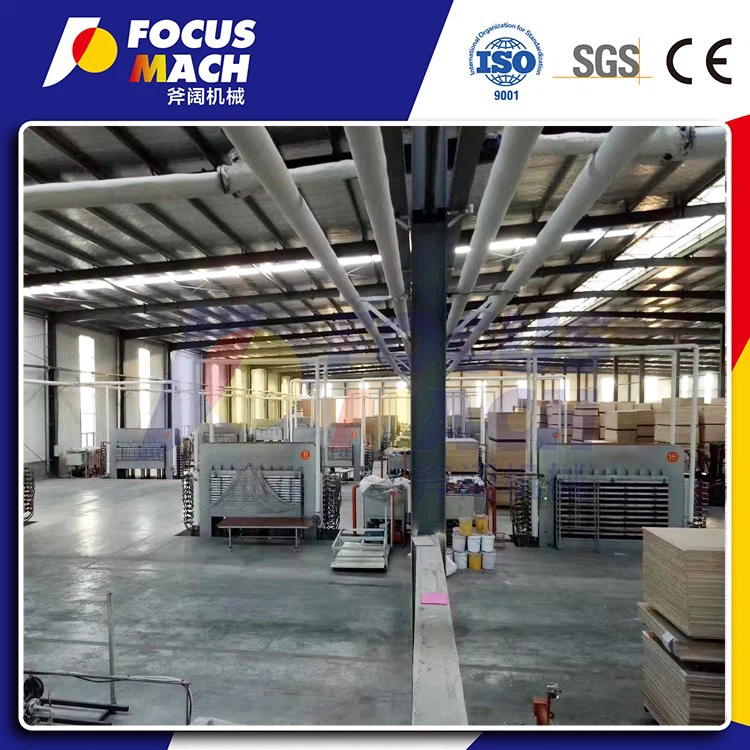

0214-26

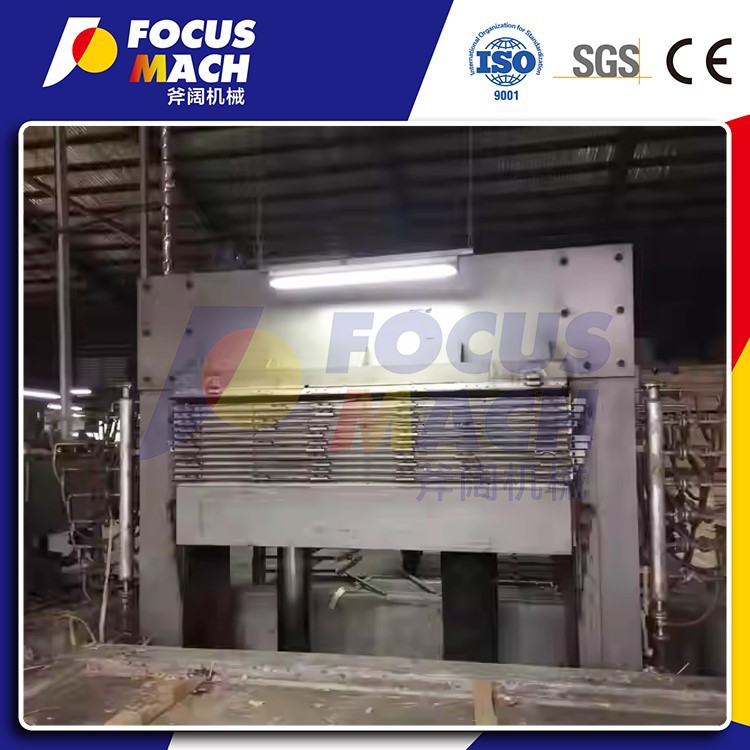

0214-27

0214-24

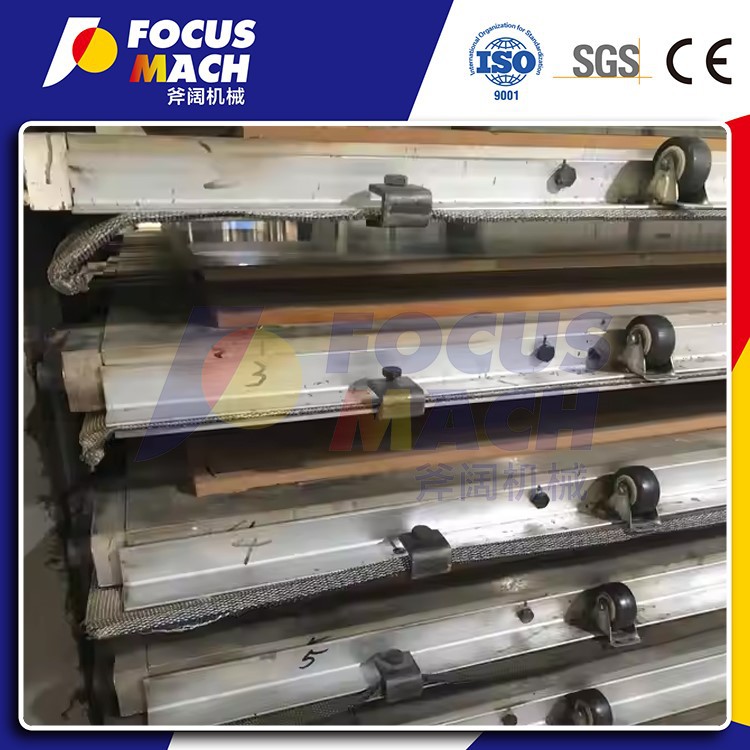

0214-28



Packaging & Shipping




260-4


Company Information




260-5

260-6
