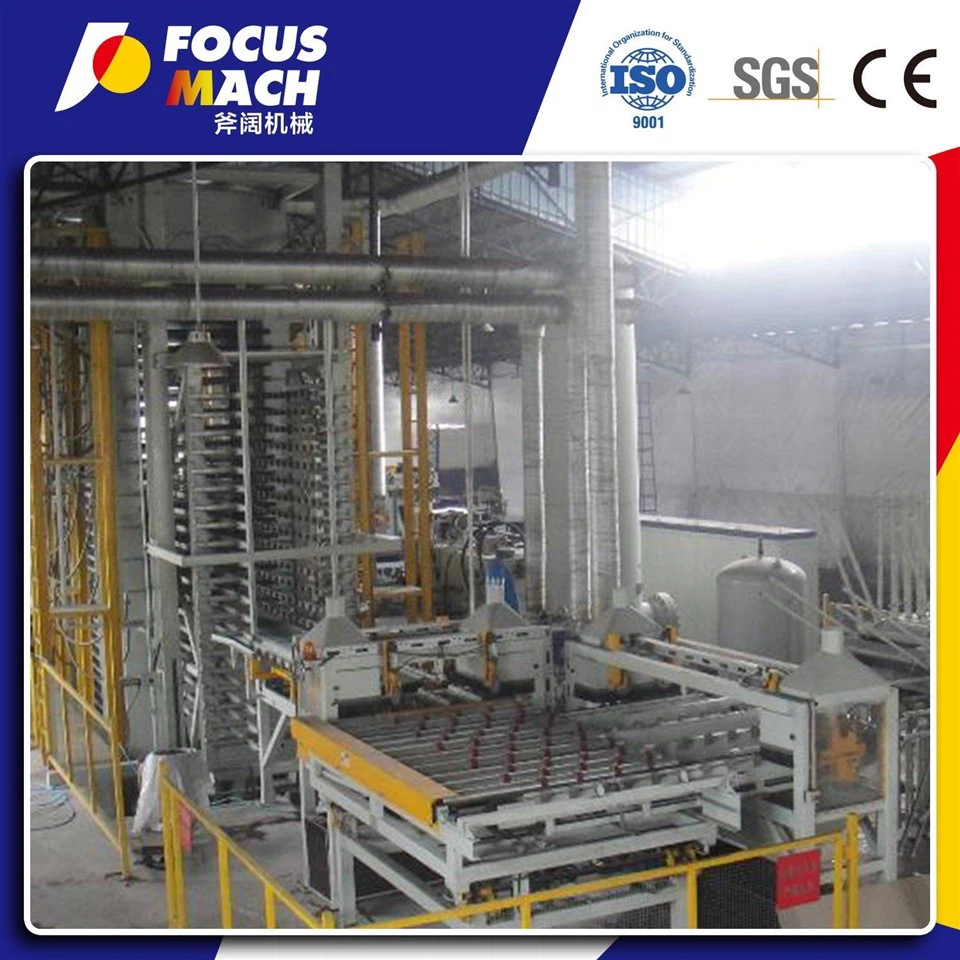

Wood hot press machine /film faced plywood hot press machine
1.Heavy,solid and reliable complete structure, which is 3-4 tons heavier than others.
2.Platens has double enters and double exits, which ensure a high efficient, and small temperature difference.
3.Each platen has his own control valve.This ensure a easy maintenance in future.
4.Input and output tubes of steam and heat conduction oil are alternative.
5.Oil cylinder with bigger diameter, heavy duty.And inside pillar is solid while others may be hallow.
CE 800Ton Film Faced Plywood Hot Press Machine Plywood Laminate Hot Press Machine
Product Parameters
|
Technical Specifications |
Unit |
FMRY21-1a |
FMRY21-1b |
|
Nominal pressure |
KN |
6000 |
10000 |
|
Hot plate size |
mm |
2700*1370*42 |
1700*3000*52 |
|
Product dimensions |
feet |
4*8 |
5*10 |
|
Opening |
mm |
70 |
70 |
|
Opening mumber |
pcs |
15 |
8 |
|
Plunger cylinder diameter |
mm |
Φ380x2 ,Φ180x1 |
Φ360x4 ,Φ180x1 |
|
Working stroke |
mm |
1050 |
720 |
|
Working pressure |
Mpa |
25 |
25 |
|
Motor |
kw |
26 |
25.5 |
|
Closing speed |
m/min |
4 |
4 |
|
Overall sizes |
mm |
5000*1446*5395 |
5450x1850x4415 mm |
|
Weight |
kg |
38000 |
Detailed Photos
EXHIBITION
COMPANY PROFILE
