Main Structure and Components

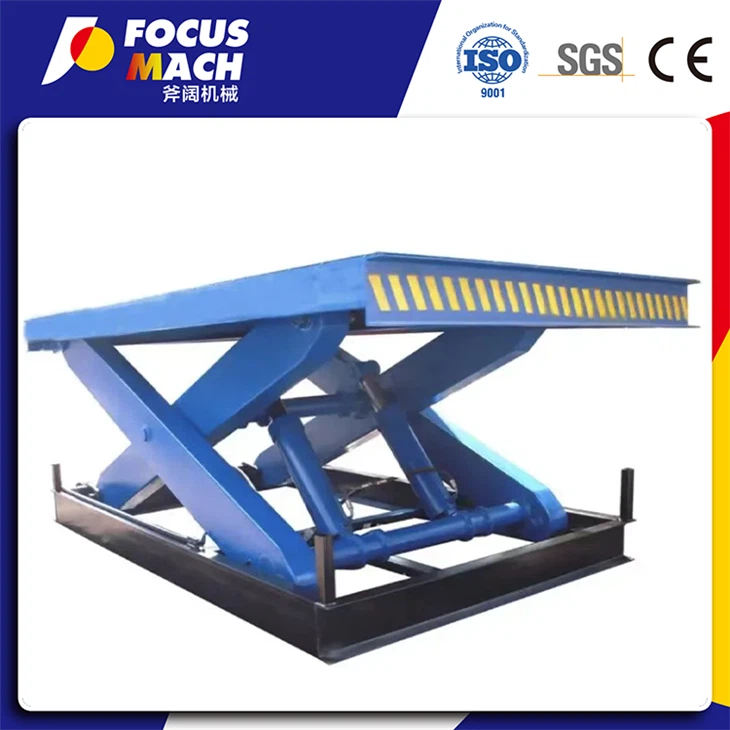

(1) Scissor Lift Mechanism
Composed of interlocking metal arms (scissor legs) that extend or retract via hydraulic cylinders to raise or lower the platform.
Advantages: Stable structure, high load capacity, and smooth lifting motion.
Materials: High-strength steel or aluminum alloy (for lightweight designs).
(2) Hydraulic System
Key Components: Hydraulic pump, hydraulic cylinder, control valve, oil tank.
Working Principle:
The motor or diesel engine drives the hydraulic pump to generate high-pressure oil.
The high-pressure oil pushes the hydraulic cylinder piston, expanding or retracting the scissor arms.
The lifting speed and direction are controlled via solenoid or manual valves.
Safety Features: Burst valves (to prevent falls in case of hose rupture), overload protection.
product parameters
| Parameter | Typical Range/Value | Remarks |
|---|---|---|
| Load Capacity | 200kg ~ 2000kg | Depends on platform size and structural strength |
| Lifting Height | 1m ~ 20m | Common mid-range height: 2m~12m |
| Platform Size (L×W) | 1.2m×0.6m ~ 3m×1.5m | Customizable with extensions or guardrails |
| Minimum Height (Retracted) | 0.5m ~ 1.2m | Affects ground clearance |
| Maximum Working Height | 2m ~ 22m | Includes operator standing height (~+1.8m) |
| Power Type | Electric Hydraulic / Diesel Hydraulic / Hybrid | Electric for indoor, diesel for outdoor |
| Motor Power | 1.5kW ~ 7.5kW | Adjusted based on load and speed requirements |
| Lifting Speed | 0.1m/s ~ 0.3m/s | Speed may decrease under full load |
| Lowering Method | Gravity Lowering / Hydraulic Controlled | Manual pressure release in emergencies |
| Wheels/Mobility | Fixed / Swivel Casters / Self-propelled | Optional brake wheels or rail-mounted |
| Control Method | Manual Buttons / Wireless Remote / Foot Switch | Explosion-proof models available |
| Power Supply | 220V / 380V / 24V (Battery) | Battery runtime: 4~8 hours |
| Operating Temperature | -20℃ ~ +50℃ | Special hydraulic oil required for low temps |
| Safety Features | Overload Protection / Safety Valve / Emergency Stop | Tilt alarm, dual limit switches, etc. |
| Weight | 300kg ~ 5000kg | Varies by height and load capacity |
PACKING&SHIPPING:
EXHIBITION:
FAQ:
Q:how can we guarantee quality?
A:Always a pre-production sample before mass production;
Always final Inspection before shipment;
Q:what can you buy from us?
A:Veneer Peeling Machine, Plywood Hot Press Machine, Particleboard Line Machine , Wood Pellet Machine , Wood Based Consumed Chemicals

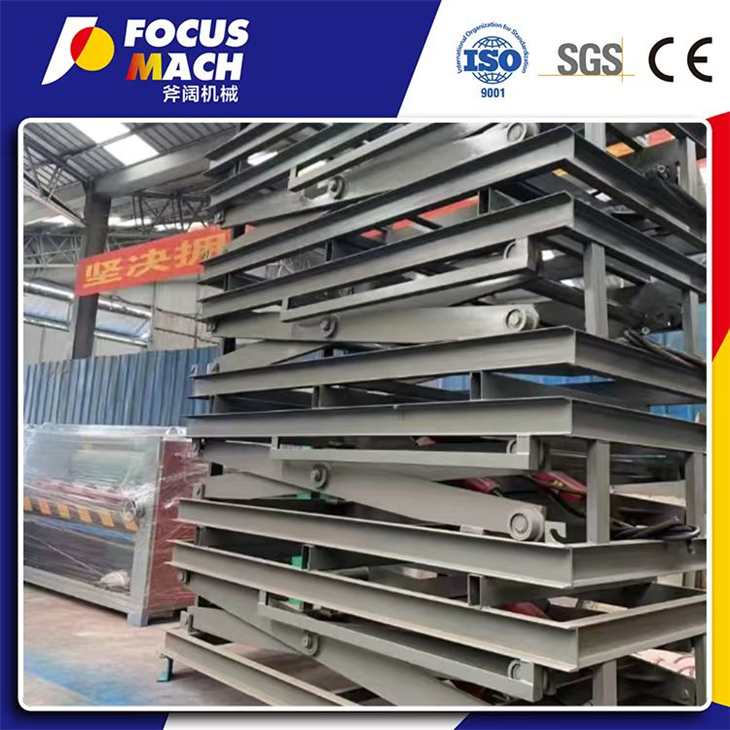

Detailed Photos:
