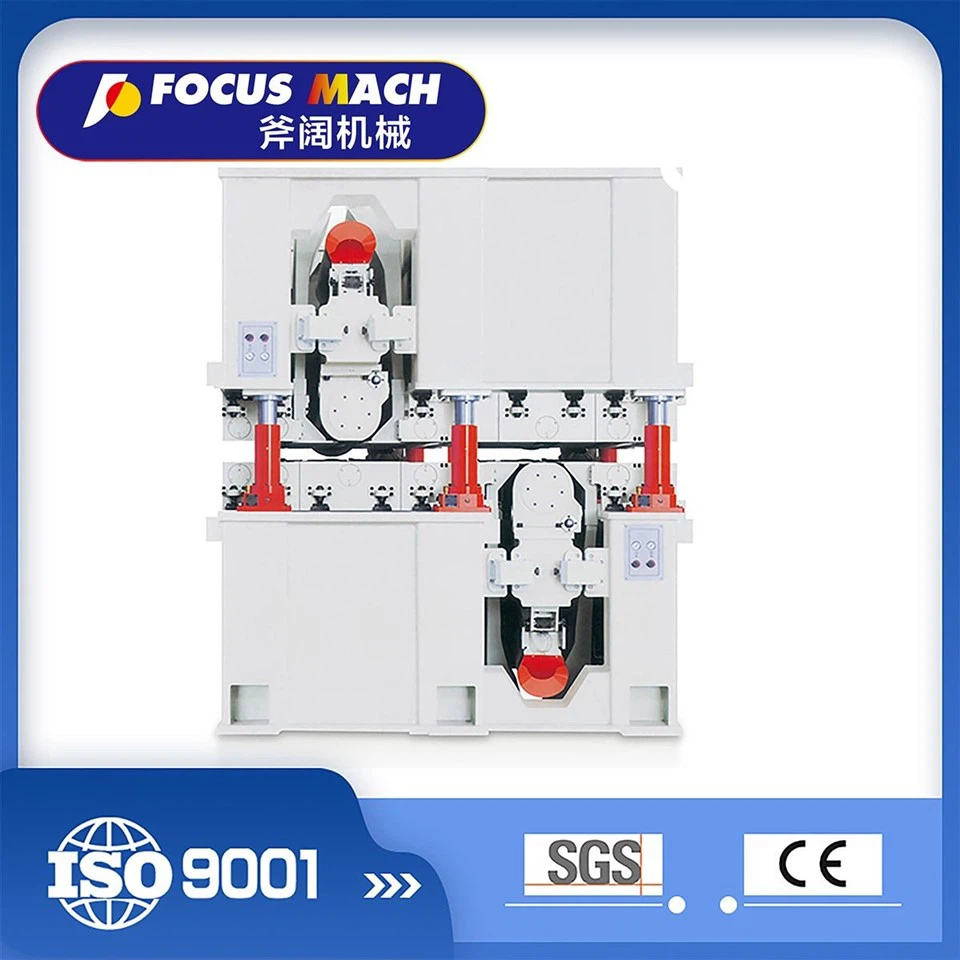

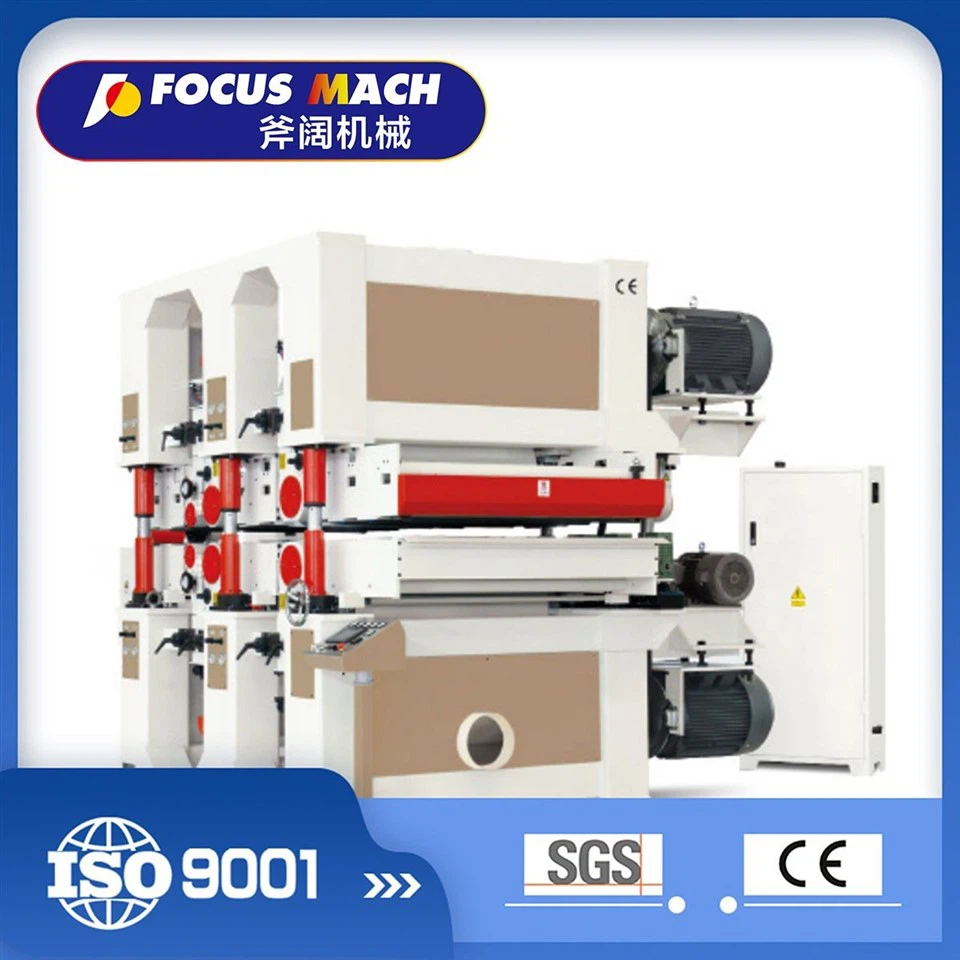

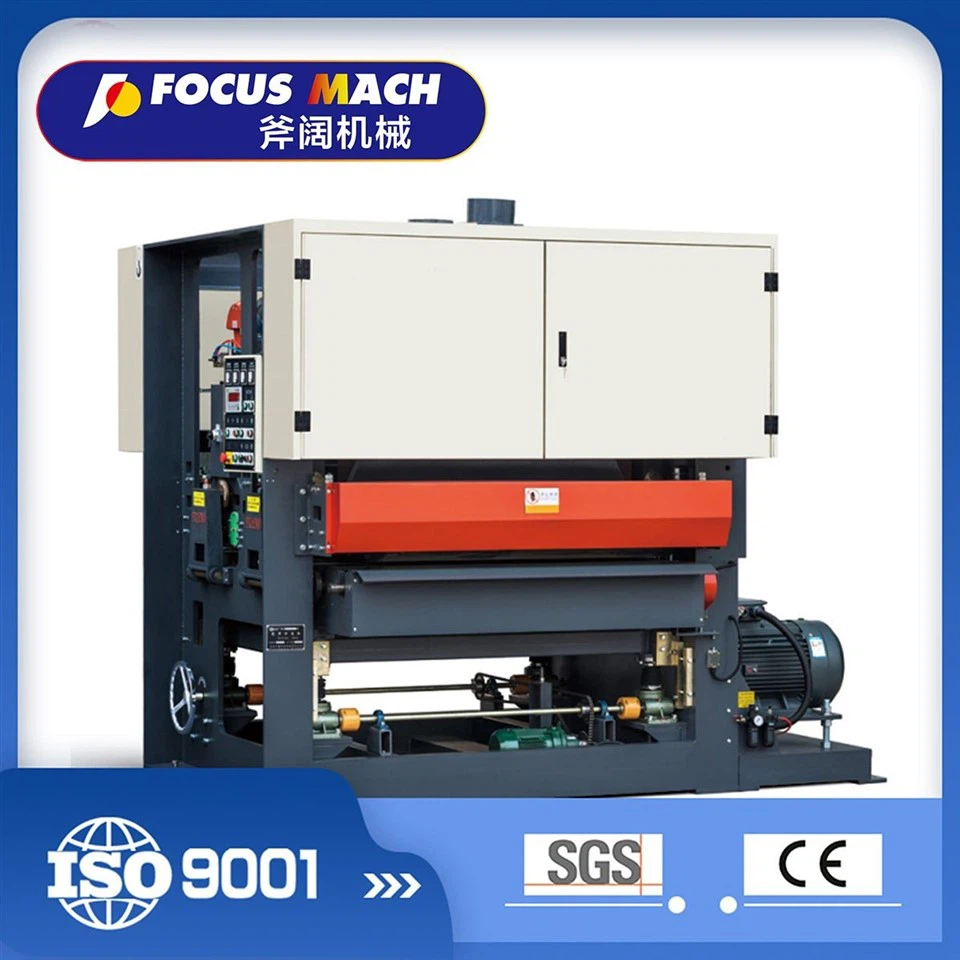

Double Side High Duty Wood Sanding Machine
video
Double Side High Duty Wood Sanding Machine

Double Side High Duty Wood Sanding Machine

It is a new practical and efficient wood product surface processing equipment. The machine adopts high-end imported intelligent equipment to completely improve the accuracy of plywood boards polishing, especially the polishing accuracy of primer.
Send Inquiry
Description
sgj
Double Side High Duty Wood Sanding Machine

This machine is specially used for interior doors, cabinet doors, furniture and other modeling surface polishing equipment. Suitable for all kinds of solid wood, MDF, veneer faced board and other materials straight line (such as door line, door frame, foot line, phase frame, blinds, etc.), L-shaped wood line and wood class regular surface, shaped surface, plane, and 3D shaped surface, primed wood door, cabinet door surface of coarse fine sanding, grinding, polishing.

The machine running speed is adjustable, no noise. Circular longitudinal roll and long roll combination sanding, to achieve no dead Angle sanding.

Products Description

Max Working width

1000mm

Working thickness

10-100mm

Min Working length

500mm

Total motor power

41kw

Abrasive belt size

1020*2000mm

Feeding speed

5-25m/min

Working air pressure

0.6Mpa

Stroke height

120-200mm

Volume of dust collection device

15000m³/h

Aspiration for wind speed device

25-30m/s

Air Consumption

17m³/h

Overall dimension(LxWxH)

1750x2450x2050mm

Net weight

3600kg



Product photos

sgj

sgj1

sgj2

sgj3

sgj4

exhibition




KHPZ

Packing and shipping




Shandong-Focus-Machinery-Co-Ltd- 5

Products Description




Shandong-Focus-Machinery-Co-Ltd- 7
