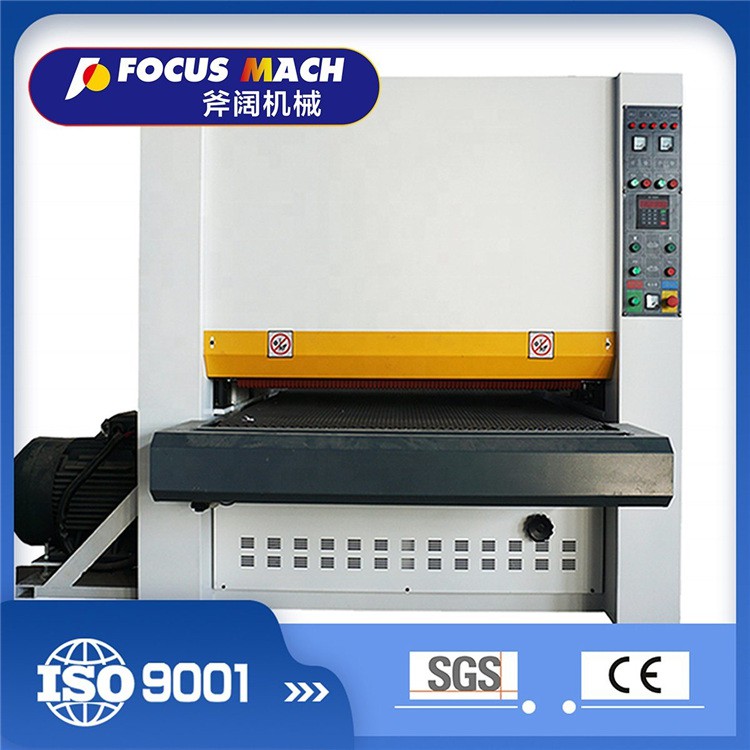

Good Quality Sanding Machine

The adjustable system is designed to cater to a wide range of sheet metal processing types, allowing for precise customization to meet the specific requirements of each application. This flexibility ensures that optimal sanding results can be achieved across various materials and thicknesses, enhancing overall efficiency and quality in the production process.

Send Inquiry

Description

1. The adjustable system is designed to cater to a wide range of sheet metal processing types, allowing for precise customization to meet the specific requirements of each application. This flexibility ensures that optimal sanding results can be achieved across various materials and thicknesses, enhancing overall efficiency and quality in the production process.

2. In addition to being able to adjust conveyor speed through the control panel, the intelligent temperature controller provides advanced functionality for maintaining consistent and controlled operating conditions. This precision enables smooth operation while ensuring that temperature-sensitive materials are handled with care, contributing to superior finished products.

3. The front sand frame features a sturdy structure with two rolls and one pad, offering versatility in addressing different surface characteristics during the sanding process. The adjustable steel roll provides adaptability for varying material properties, while the rear sand frame is specifically engineered for polishing purposes, further enhancing the machine's capability to deliver refined surface finishes.

4. With the inclusion of a reducer motor, users have the convenience of adjusting feeding speed as needed to suit specific processing requirements. This feature not only enhances operational flexibility but also contributes to improved productivity by streamlining workflow processes within sheet metal fabrication operations.

Machine name	GOOD QUALITY SANDING MACHINE
Working width	40-1300mm
Working thickness	2.5-100mm
Working length	>=640mm
No.1 Abrasive belt speed	19m/s
No.2 Abrasive belt speed	18m/s
Feeding conveyor speed	6-30m/min
Abrasive belt size (WxP)	1330x2200mm
Machine total power	63.74Kw
Main motor power	37Kw, 22Kw
Working air pressure	0.55Mpa
Consumption of compressed air	0.1m3/min
Volume of sucked air	9500m3/h
Speed of sucked air	25-30m/s
Machine overall dimension (LxWxH)	2280x2040x2240mm
Machine net weight	3700Kgs
