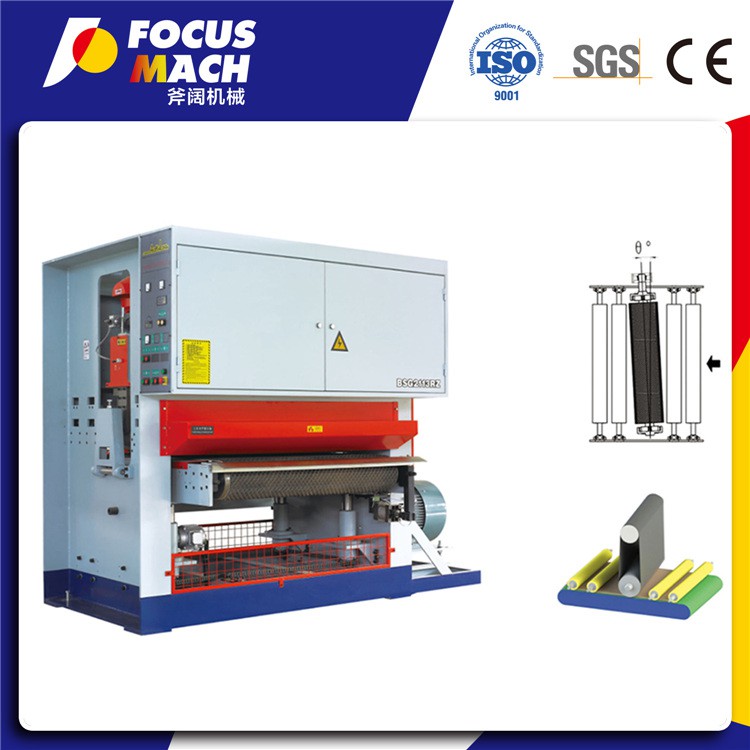

Fast Sanding Machine

Send Inquiry

Description

This fast sanding machine is a versatile four-in-one tool, capable of handling a wide range of surface finishing tasks with precision and efficiency. Whether it's brushing, sanding, polishing, or deburring, this machine delivers consistent results across various materials such as metal sheets, stainless steel sheets, titanium alloy sheets, plastic sheets, and artificial stone sheets. The high-temperature paint body not only ensures durability with minimal paint chipping but also maintains precise dimensions and an attractive appearance that resists rust even in demanding industrial environments. Its robust construction and reliable performance make it a valuable asset for workshops and manufacturing facilities. In terms of operation, this machine offers straightforward and convenient controls that enable operators to achieve the desired finish with ease. The user-friendly design minimizes training requirements and maximizes productivity. As for customization options, we offer standard widths of 630mm, 1000mm, and 1300mm to suit common industry needs. However, we understand that specific projects may call for unique specifications. Therefore, we are fully equipped to customize the machine according to your specific requirements to ensure seamless integration into your production processes.

Machine name	FAST SANDING MACHINE
Working width	40-1300mm
Working thickness	2.5-100mm
Working length	>=640mm
No.1 Abrasive belt speed	19m/s
No.2 Abrasive belt speed	18m/s
Feeding conveyor speed	6-30m/min
Abrasive belt size (WxP)	1330x2200mm
Machine total power	63.74Kw
Main motor power	37Kw, 22Kw
Working air pressure	0.55Mpa
Consumption of compressed air	0.1m3/min
Volume of sucked air	9500m3/h
Speed of sucked air	25-30m/s
Machine overall dimension (LxWxH)	2280x2040x2240mm
Machine net weight	3700Kgs
