Products Description

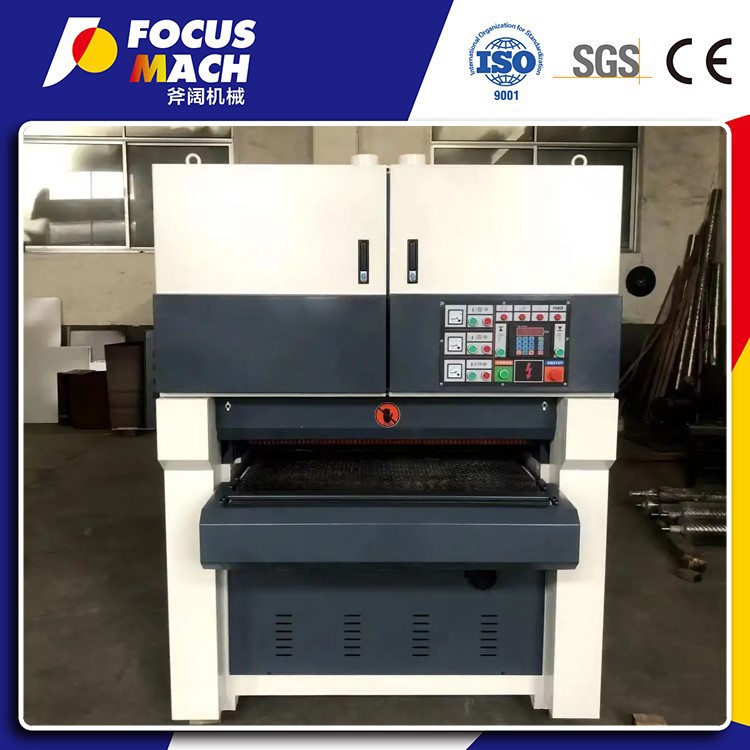

This high-performance sanding machine is designed for surface calibration and fine polishing of wood products, including plywood, MDF, HDF, particle board, solid wood, and laminated boards.
Key Features:
- Sturdy Construction: Profile-welded frame with manual aging treatment ensures long-term stability and zero deformation.
- Precision Sanding: Servo motor enables 0.01mm accuracy, while a digital scale displays roller height adjustments.

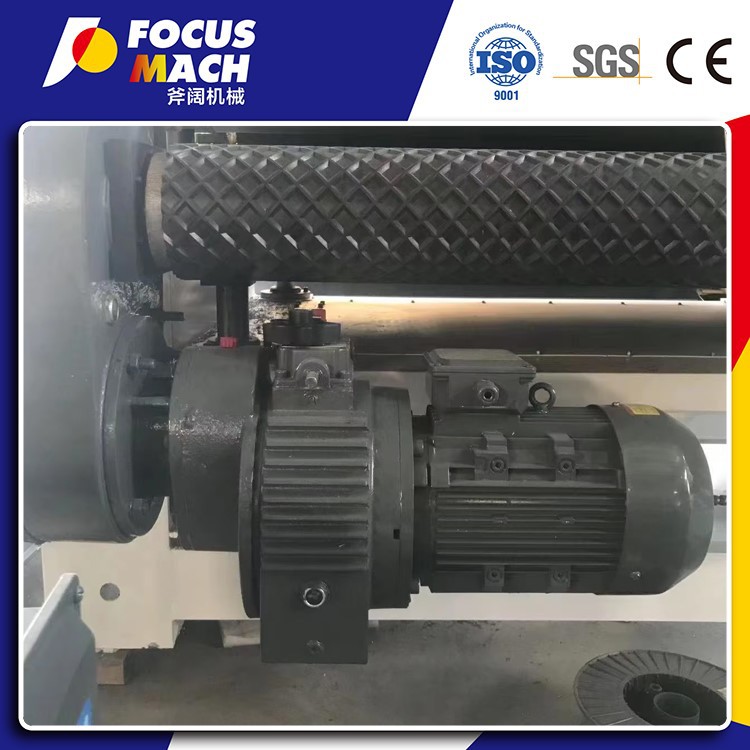

- Versatile Control: Frequency converter regulates contact roller speed for optimal sanding of veneer, paint, and various materials.
- Advanced Automation: Equipped with PLC, servo systems, high-end bearings, and gears for consistent, high-efficiency operation.
- Reliable Verification: Includes a machinery test report and video inspection for quality assurance before purchase.
Ideal for woodworking industries, this machine ensures smooth, stable, and precise sanding with minimal maintenance. Upgrade your production with unmatched accuracy and durability!
Product Parameters
| Parameters | FM-1420 | FM-1100 | FM-760 |
| Max working width | 1300mm | 1000mm | 700mm |
| Min working length | 580mm | 580mm | 580mm |
| Working thickness | 3~110mm | 3~110mm | 3~110mm |
| Total power | 82.62 kw | 63.12 kw | 47.62kw |
| Convey speed | 5~30m/min | 5~30m/min | 5~30m/min |
| Sanding belt size | 1330 x 2200mm | 1030 x 2200mm | 730 x 2200mm |
| Air pressure | 0.6MPa | 0.6MPa | 0.6MPa |
| Air consumption | 17m³/h | 17m³/h | 17m³/h |
| Dust collection capacity | 9670m³/h | 9670m³/h | 9670m³/h |
| Size | 2040 x 3060 x 2180mm | 1740 x 3060 x 2180mm | 1430 x 3060 x 2180mm |
| Weight | 5100KG | 4400KG | 3700KG |
