High Efficiency Veneer Drying Machine

Send Inquiry

Description

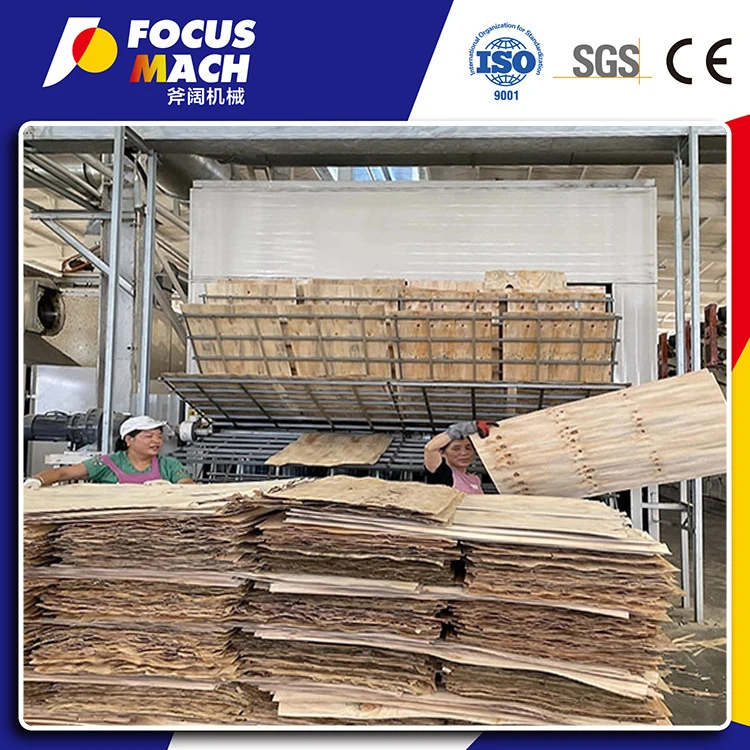

The vertical type veneer dryer, a cutting-edge innovation in the field of wood processing technology, represents a significant leap forward in the drying process for sliced or peeled veneer. Its unique heating cabin structure, reminiscent of that found in roller drying machines, sets it apart from traditional dryers. By employing vertical plate transmission instead of roller transmission, this machine achieves unparalleled efficiency and cost-effectiveness. In addition to its innovative design, the vertical type veneer dryer offers a range of practical advantages over conventional roller dryers. The positioning of the veneer perpendicular to the bottom within the cabin not only reduces costs but also significantly increases output while minimizing space requirements. This makes it an ideal choice for production lines with limited workspace constraints. Comprising distinct sections including an inlet, drying area, cooling area, and outlet, this state-of-the-art machine can be customized to accommodate specific production volumes and technological requirements. Whether used for large-scale industrial operations or smaller-scale woodworking facilities, its adaptable drying capacity ensures enhanced productivity without requiring substantial investment. Overall, the vertical type veneer dryer stands as a testament to advancements in wood processing technology and serves as a prime example of how innovation continues to drive progress within various industries.

Working width	2800mm
Working thickness	1.0-4.0mm
Working layer	1 layer
Heating section length	2000mm * 9 section
Heating medium	Steam or conduct oil
Heating temperature	60-160ºC (adjustable)
Energy consumption	600000Kcal/hour
Transfer speed	0-3m/min
Initial moisture content	40%
Final moisture content	5%
Drying capacity	2m/h
Transmission motor	4kw
Blower motor	2.2kw*9
Total power	23.8kw
Dimension	25.3m3.4m3.8m
Weight	20000kgs
