Economy Veneer Drying Machine

Send Inquiry

Description

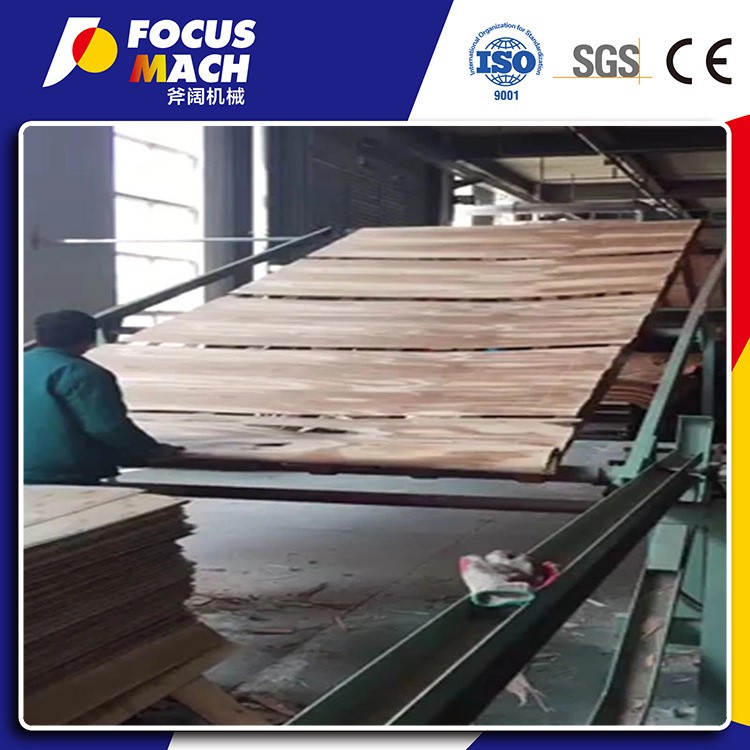

The wood veneer drying kiln and multi-layer board paving machine offer several advantages in the manufacturing process. Their automated functionality not only ensures precise slab board positioning and neatly stacked boards, saving labor and time, but also contributes to significant improvements in efficiency. Moreover, these machines play a crucial role in conserving raw materials by enhancing the board rate by over 25%. The reasonable structure of the slab board avoids interlayer stitches, thereby significantly improving strength while reducing turnover times for semi-finished products.

In addition to reducing worker intensity and saving labor, these machines also improve space utilization in the workshop. Furthermore, their sophisticated production capabilities and robustness ensure stable operation with high cutting precision through an automatic control system that allows for arbitrary cutting length settings. This level of precision is essential for meeting quality standards and ensuring consistent product output.

Overall, the wood veneer drying kiln and multi-layer board paving machine represent a significant advancement in manufacturing technology due to their ability to streamline processes, conserve resources, and maintain high-quality production standards.

Working Width	2800mm
Working thickness	1.0-4.0mm
Working layer	1 layer
Heating section length	2000mm * 9 section
Heating medium	Steam or conduct oil
Heating temperature	60-160ºC (adjustable)
Energy consumption	600000Kcal/hour
Transfer speed	0-3m/min
Initial moisture content	40%
Final moisture content	5%
Drying capacity	2m/h
Transmission motor	4kw
Blower motor	2.2kw*9
Total power	23.8kw
Dimension	25.3m3.4m3.8m
Weight	20000kgs
