The Wood Veneer Dryer Machine for Plywood/Veneer Factory is an essential piece of equipment that plays a crucial role in the plywood production process. Its specifically designed functionality for drying peeled veneers makes it indispensable in ensuring the quality and durability of the final product. This versatile machine offers various configurations, including mesh, roller, and mesh & roller types, which can be customized to meet specific requirements. The ability to handle veneers of different thicknesses and moisture contents from any wood species showcases its adaptability and reliability across diverse production needs. With a focus on efficiency and energy-saving features, this dryer not only contributes to cost savings but also minimizes environmental impact. The incorporation of new technology and an advanced PLC controlling system ensures optimal performance, providing operators with precise control over the drying process. Furthermore, the improved veneer quality achieved through this machine enhances the overall aesthetic appeal and structural integrity of plywood products. Whether it's accommodating desired working layers quantity or meeting specific drying capacity demands, this machine can be tailored to suit varying production scenarios. In conclusion, the Wood Veneer Dryer Machine stands as a cornerstone in modern plywood manufacturing operations due to its versatility, efficiency-enhancing features, and commitment to delivering high-quality dried veneers for further processing into top-notch plywood products.
|
Working width |
2800mm |
3400mm |
3500mm |
|
Working layers |
3 |
2 |
4 |
|
Length of heating section |
20000mm |
13×2000mm=26000mm |
15×2000=30000 |
|
Length of cooling section |
6000mm |
3×2000=6000mm |
2×2000=4000 |
|
Total power |
155.7kw |
128.5kw |
280.2kw |
|
Transport motor |
7.5kw×3=22.5kw |
11kw×2=22kw |
18.5kw×2=37kw |
|
Heating motor |
11kw×10=110kw |
7.5kw×13=97.5kw |
15kw×15=225kw |
|
Cooling motor |
4kw×3+3kw×3=21kw |
3kw×3=9kw |
4kw×2+4kw×2=16kw |
|
Output power |
2.2kw×1=2.2kw |
2.2kw×1=2.2kw |
2.2kw×1=2.2kw |
|
Veneer transportation speed |
1.5~15m/min |
1.5~15m/min |
1.5~15m/min |
|
Saturated steam pressure |
0.6~1.0Mpa |
0.6~1.0Mpa |
0.6~1.0Mpa |
|
Drying temperature |
150~170ºC |
150~170 ºC/170-190 ºC |
170-190ºC |
|
Steam consumption |
3300kg/h |
3000kg/h |
3600kg/h |
|
Veneer density |
~620kg/m³ |
~620kg/m³ |
~590kg/m³ |
|
Available veneer thickness |
1.5~3.5mm |
1.5~3.5mm |
1.5~4.5mm |
|
Veneer initial moisture content |
~80% |
~80% |
50-60% |
|
Veneer final moisture content |
6±2% |
6±2% |
10-20% |
|
Load ratio |
85% |
85% |
85% |
|
Drying capacity |
2.6~2.9m³/h |
2.5~2.8m³/h |
~6.7m³/h |
|
Roller spacing |
333mm |
333mm |
333mm |
|
Overall dimension (L*W*H) |
45620×5150×4150mm |
43820×5050×2800mm |
52720×5850×4720mm |
|
Total weight |
~79000kg |
~73000 |
~132000 |

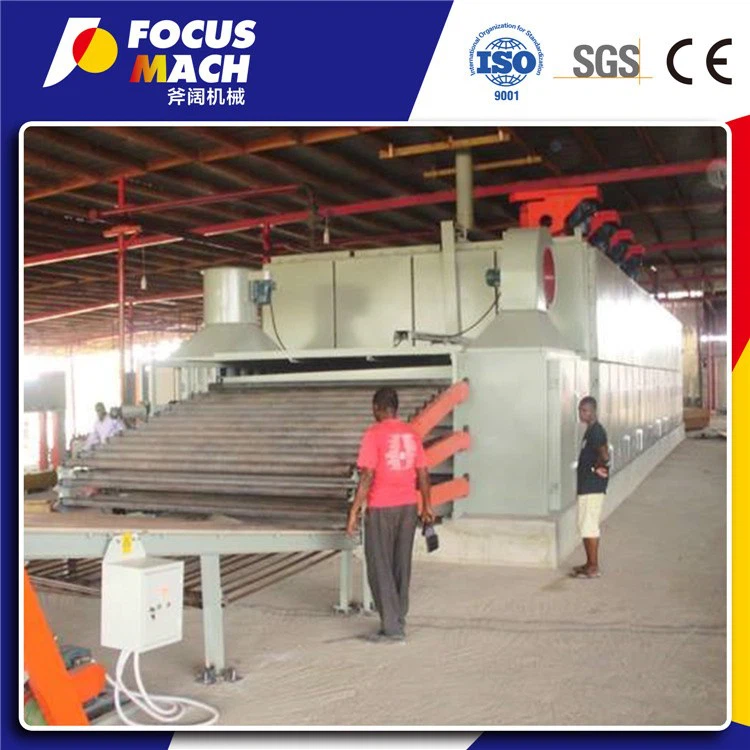

Product Pictures
