4 Decks Jetting Belt Veneer Dryer
video
4 Decks Jetting Belt Veneer Dryer

4 Decks Jetting Belt Veneer Dryer

4 Decks jetting belt veneer dryer, a crucial component of the veneer department's production lines, plays a pivotal role in ensuring the efficient and high-quality drying of veneers. Its seamless integration into the production process is facilitated by its connection to an input shelf at the entry point and to a cutting machine and conveying belt at the exit, thereby establishing a continuous flow of operations.
Send Inquiry
Description

4 Decks jetting belt veneer dryer, a crucial component of the veneer department's production lines, plays a pivotal role in ensuring the efficient and high-quality drying of veneers. Its seamless integration into the production process is facilitated by its connection to an input shelf at the entry point and to a cutting machine and conveying belt at the exit, thereby establishing a continuous flow of operations. Incorporating state-of-the-art mechanical techniques such as transverse-circulating vertical-jetting, 4-deck belt conveying line, stepless gear, and electric control sets this machine apart in terms of guaranteeing superior quality and efficiency in the drying process. The innovative design ensures that our product offers numerous advantages including high-quality drying with minimal defects, rapid drying rate leading to enhanced productivity, user-friendly operation coupled with ease of maintenance, as well as paramount safety and reliability standards.



Type Specifications

GB1332 2 floors, 5 sections

Density

550kg/m³

Thickness

1.5mm

Initial moisture content

80%

Final moisture content

10%

Load ratio

80%~85%

Working width

2800mm

Working decks

2

Length of heating section

2000*5

Length of cooling section

2000*1

Transmission speed

1.5~15m/min

Drying capacity

1.3m³/h

Steam consumption

1500kg/h

Motor installed capacity

54.7kw

For transmission

7.5kw*2

For ventilation

7.5kw*5

For cooling

2.2*1kw

Total size (L*W*H)

17307*4080*2844mm

Net weight

24000kg



Product Pictures
4 DECKS JETTING BELT VENEER DRYER 2

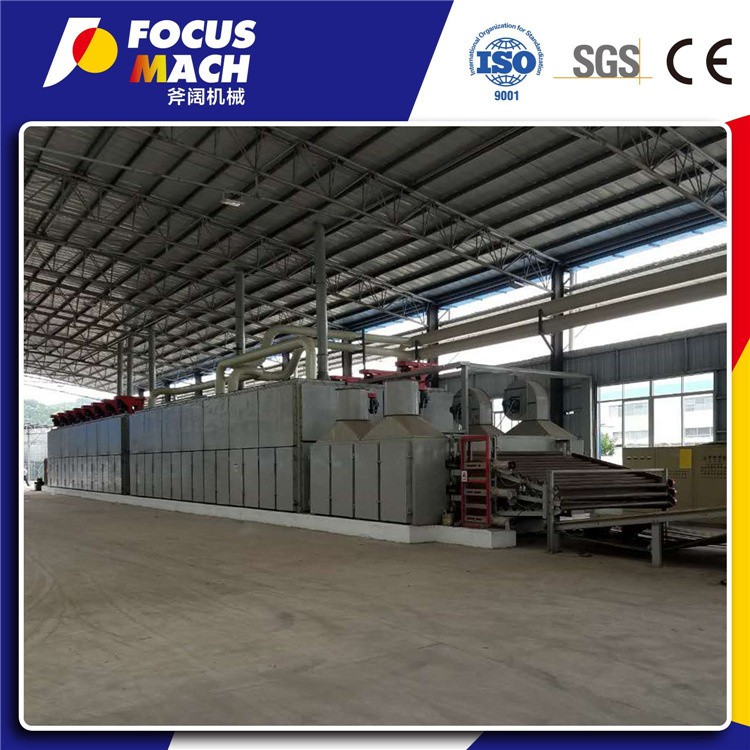

4 DECKS JETTING BELT VENEER DRYER 3
4 DECKS JETTING BELT VENEER DRYER 4
4 DECKS JETTING BELT VENEER DRYER 5
