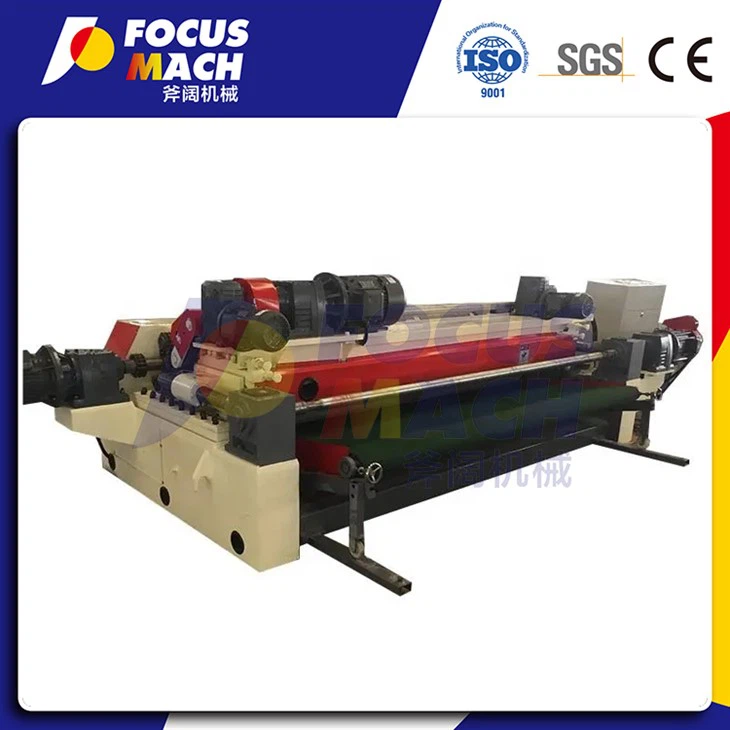

8 Feet Plywood Veneer Peeling Machine Lathe

8 Feet Plywood Veneer Peeling Machine Lathe

The veneer rotary peeling machine is a key machine in plywood production, capable of peeling the remaining φ450mm core into veneers. The core diameter can eventually be reduced to φ40mm. This machine features a spindleless design, with the ability to adjust the knife door gap, rotary peeling table plate, and core board through a CNC system. This leads to high production efficiency and significantly enhances wood utilization.
Send Inquiry
Description



Products Description


0116-21

1. Feed Power: Drive - Center Innovation

The veneer peeling machine's feed power uses a drive - center structure. Centralizing the power source optimizes transmission to the ball screw, ensuring precise feed for consistent veneer quality.

2. Roller Drive: Helical Gear Superiority

Helical gears drive the single and double rollers. They offer stable transmission, high speed - rigidity, and a long lifespan, minimizing vibrations and maintaining a consistent peeling speed under varying loads.

3. Knife - Angle Adaptation

The machine automatically adjusts the knife angle according to the log's changing diameter. This real - time adjustment is crucial for high - quality veneer with excellent thickness tolerance.

4. Veneer Thickness Precision

A servo motor controls veneer thickness adjustment. It enables precise, minute changes, catering to diverse thickness requirements.

5. Press - Knife Flexibility

The press - knife system offers a choice between hydraulic and pneumatic options. The hydraulic press knife provides strong, consistent pressure, while the pneumatic option allows for more nuanced cutting - force control, enhancing the machine's versatility.



Product Parameters





No. ITEM UNIT FM1400KXY FM2700KXY
1 Max processing Length mm 1350 2650
2 Max processing Dia mm 450 450
3 Remainning Dia mm 28 28
4 Peeling Thickness mm 0.3-3.6 0.3-3.6
5 Peeling Speed m/min 50 50
6 Feed motor kw 1×7.5 (servo) 1×15 (servo)
Single roller motor kw 1×7.5 1×11
Double roller motor kw 1×11 2×7.5
Clipper motor kw 1×2.2 1×3
7 Dimension mm 3500x2950x1600 6000×2950×1600
8 Total Weight kg 5500 9500





Products Description




0116-22

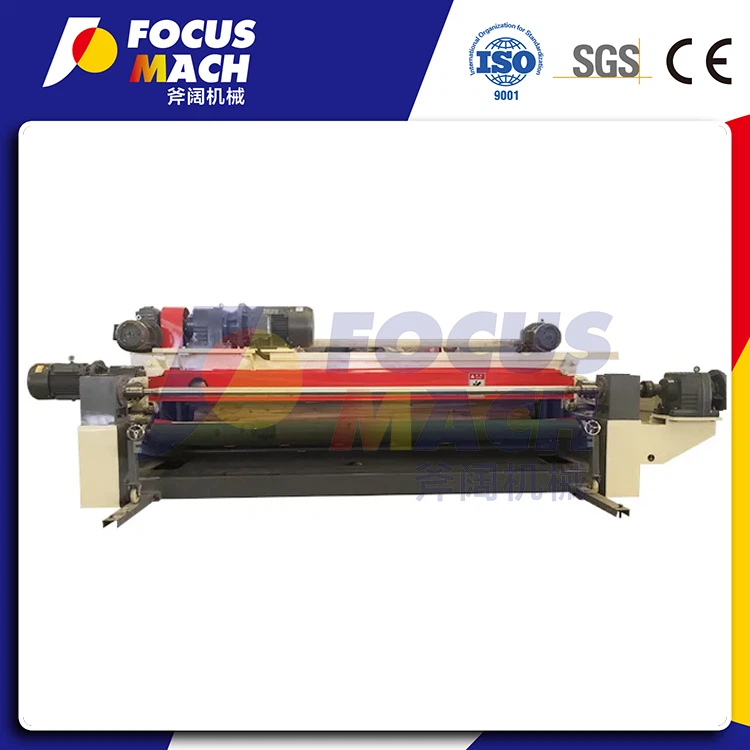

0116-23

0116-26

0116-27

0116-28
