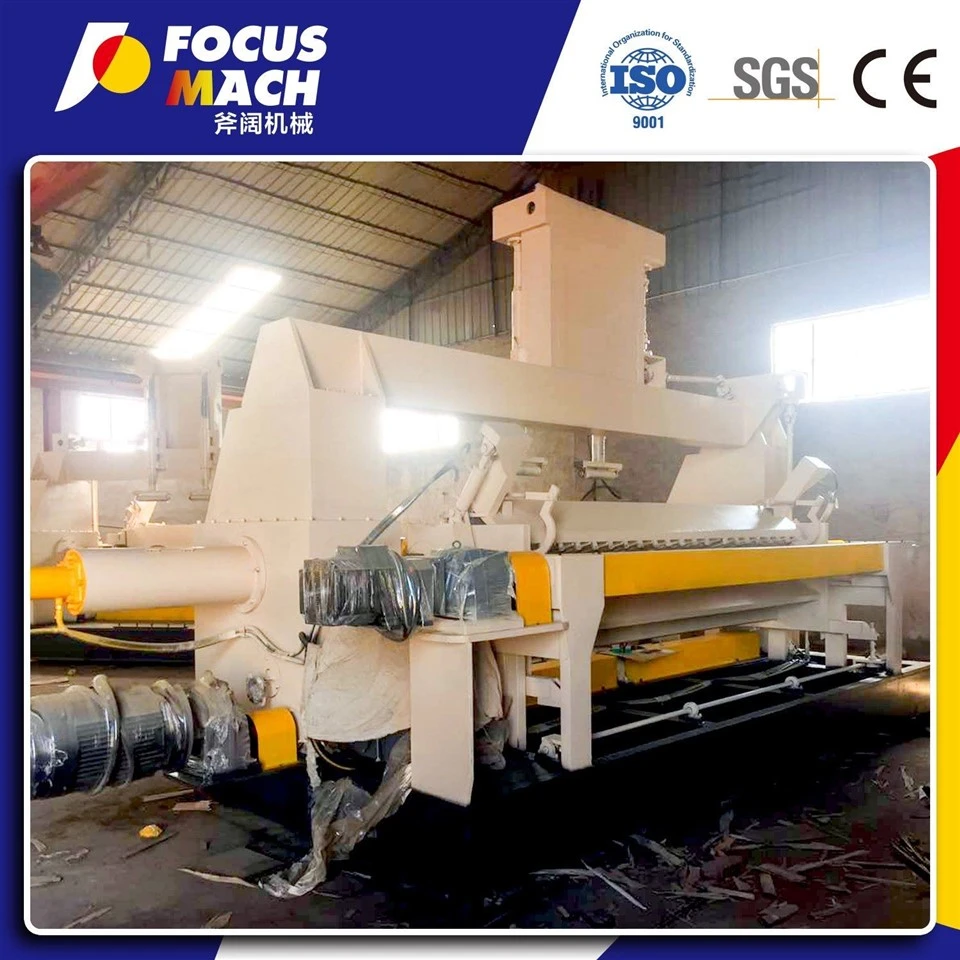

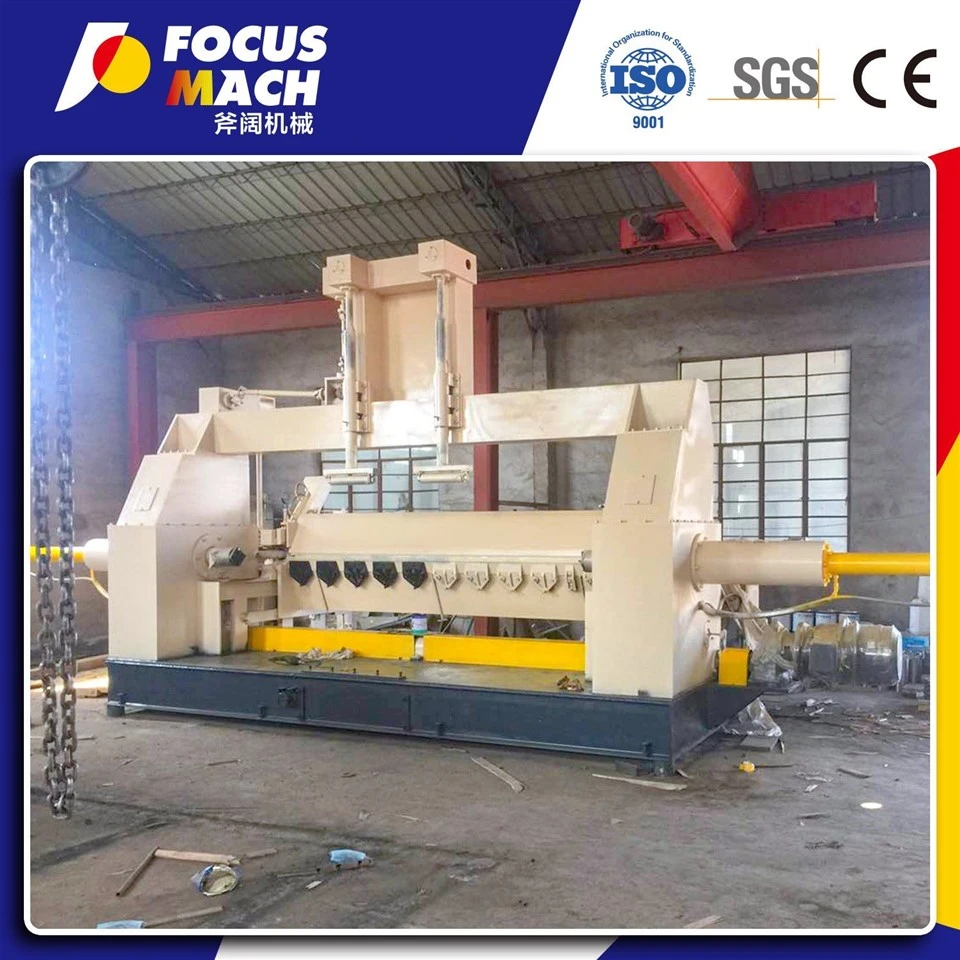

Plywood Veneer Spindle Rotary Peeling Machine

Plywood Veneer Spindle Rotary Peeling Machine

This machine is used to peel big diameter log with single spindle into veneer. The thickness is 0.35-3.9mm, special for peeling face veneer. We have serval models for peeling 800mm, 1100mm, 1300mm and 1500mm, also 4ft, 6ft and 8ft, you can choose it accroding to you requirement. 1. Auto knife installation system, auto tool carriage feeding system 2. Hydraulic clamping, feeding. 3. Auto anti-bend roller 4.Electric rear angle adjustment 5. Both soft and hard wood are available. We have 6f and 8f to meet different requirement. You can choose it according to your demand
Send Inquiry
Description
Shandong-Focus-Machinery-Co-Ltd-
Plywood Veneer Spindle Peeling Machine: Precision in Wood Processing

The plywood veneer spindle peeling machine is a game - changer in the plywood manufacturing sector. This advanced equipment is specifically designed to transform raw logs into high - quality veneers with utmost precision.At its core, a powerful spindle firmly grips the log, ensuring stable rotation. As the log spins, a sharp, well - calibrated cutting tool moves across it, shaving off thin layers of veneer. The machine's design allows for fine - tuned control over the thickness of the veneer, guaranteeing uniformity throughout the production process.This spindle peeling machine is not only precise but also highly efficient. It can handle logs of various diameters and lengths, significantly increasing production capacity. With user - friendly operation panels, operators can easily adjust settings, making it suitable for both large - scale factories and smaller woodworking shops.




Products Description



Max,cutting length(mm)

2150-2700

1600-2000

1000-1500

Range of veneer thickness(mm)

0.35-3.9

0.35-4.2

0.35 - 4.2

Chuck diameter(mm)

Φ100

100

85 ( 100 )

Max.rotating speed of spindel(rpm)

0-200

160

0-160

Quick forward and backward speed of tool cartridge(m/min)

1.8



1.8

Main motor power(kw)

75

75

45

Relief angle motor power

0.75

0.75

0.75

Rapid feed motor power(kw)

4

4

4

Hydraulic motor power(kw)

7.5

7.5

7.5

Grinding angle of appropriate tool cartridge

18o-22o

18o-22o

18o-22o

General motor(kw)

90.25

89.5

58.35

Overall dimensions(mm)

8250×2855×1554

7945×1770×1909

7295×1770×1909

Weight(kg)

16500

16000

13000

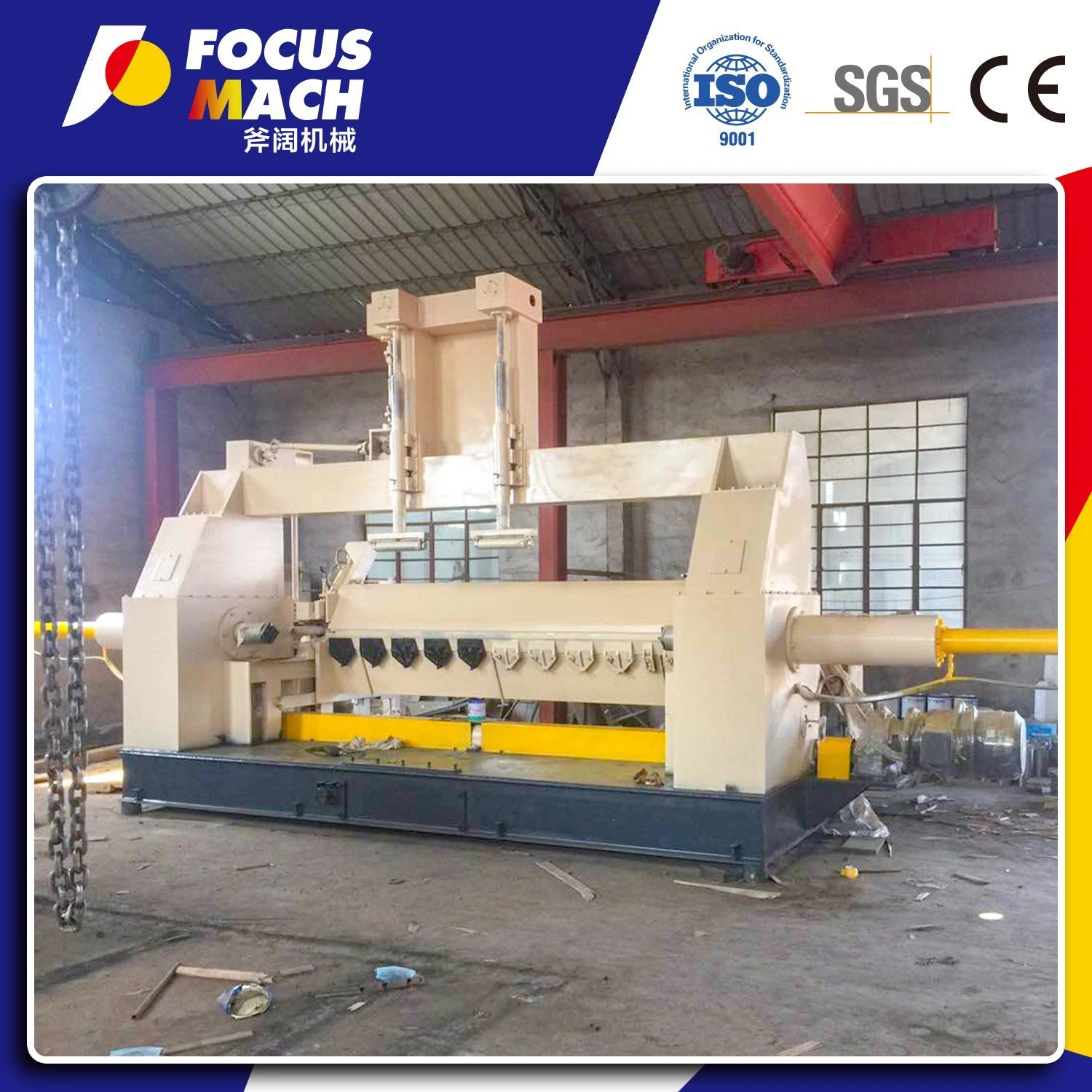

Product photos
