High Precision Veneer Peeling Machine

High Precision Veneer Peeling Machine

High precision veneer peeling machine is an essential piece of equipment in the wood processing industry, playing a crucial role in the production of high-quality plywood and wood-based panel veneers.
Send Inquiry
Description

High precision veneer peeling machine is an essential piece of equipment in the wood processing industry, playing a crucial role in the production of high-quality plywood and wood-based panel veneers. Its utilization for processing specific lengths and diameters of wood segments into continuous veneer strips demonstrates its versatility and efficiency in meeting the demands of modern manufacturing processes.



In addition to its primary function, this high-performance veneer peeling machine also contributes to enhancing plywood quality by producing face veneers that can be laminated onto core veneers. The spindle-less design further adds to its appeal within the plywood machinery industry, as it ensures superior veneer quality while being particularly suitable for hard woods such as Eucalyptus.



Furthermore, the fully automatic operation of this High precision veneer peeling machine offers adjustable settings ranging from 40M/Min to 80M/Min, catering to diverse production requirements. Many customers opt for this automatic option due to its durable power CNC system, computer-adjustable knife seam, hydraulic pressure knife installation, and push-back CNC feature which collectively contribute to establishing a high-speed automatic one-support-two-veneer-peeling production line.



Moreover, the combination of CNC single spindle and spindle-less peeling machines not only enhances precision and quality but also significantly improves overall production efficiency and automation levels. As a key piece of equipment in plywood manufacturing, it stands at the forefront of technological advancements driving progress within the industry.



It's worth noting that rotary cutting machines are categorized into clamping rotary cutting machines and non-clamping rotary cutting machines; each type has distinct advantages based on whether it includes a CNC or vertical spindle. For further information on these options or any other inquiries related to our products, please feel free to contact us.



Machine name

HIGH PRECISION VENEER PEELING MACHINE

Max. Working diameter

Ø500mm

Min. Working diameter

Ø22mm

Max. Working length

1400mm

Veneer thickness range

0.8-4.0mm

Rollers diameter

Ø125mm

Single roller motor power

5.5Kw x 2

Double roller motor power

7.5Kw x 2

Feed motor power

11Kw

Rotary guillotine motor

1.5Kw

Veneer conveyor motor

1.5Kw x 2

Total motor power

40Kw

Gearbox type

Helical harden surface R87

Working speed

120m/min

Machine overall dimension

4700x1900x1500mm

Machine net weight

7500Kgs

Remark

1. With automatic left-core pneumatic dropper
2. With automatic lubrication pump system
3. Automatic emergency stop protective device



Product Pictures
HIGH PRECISION VENEER PEELING MACHINE 2

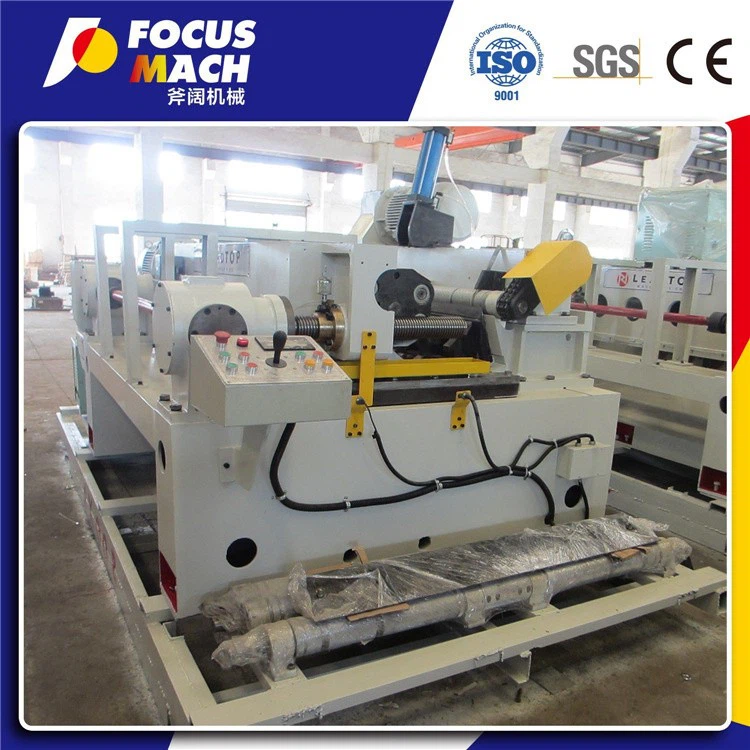

HIGH PRECISION VENEER PEELING MACHINE 3
HIGH PRECISION VENEER PEELING MACHINE 4
HIGH PRECISION VENEER PEELING MACHINE 5
