Press Machine Cold Press For Plywood

The cold press is necessary equipment for processing plywood, suitable for 3'x6',4'x8' plwood.
After glue spread ,it can press the veneer together to ensure veneer surface flat.

Send Inquiry

Description

Products Description

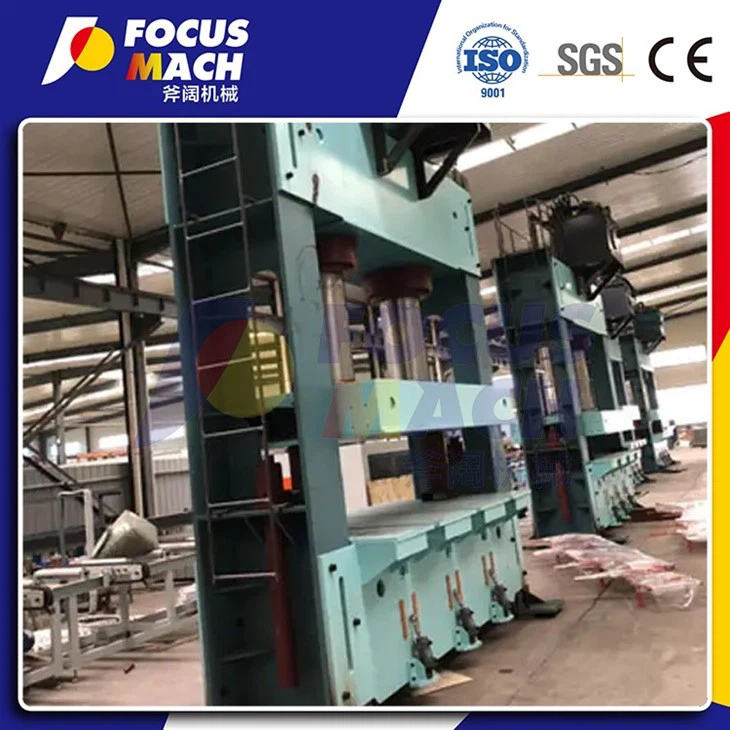

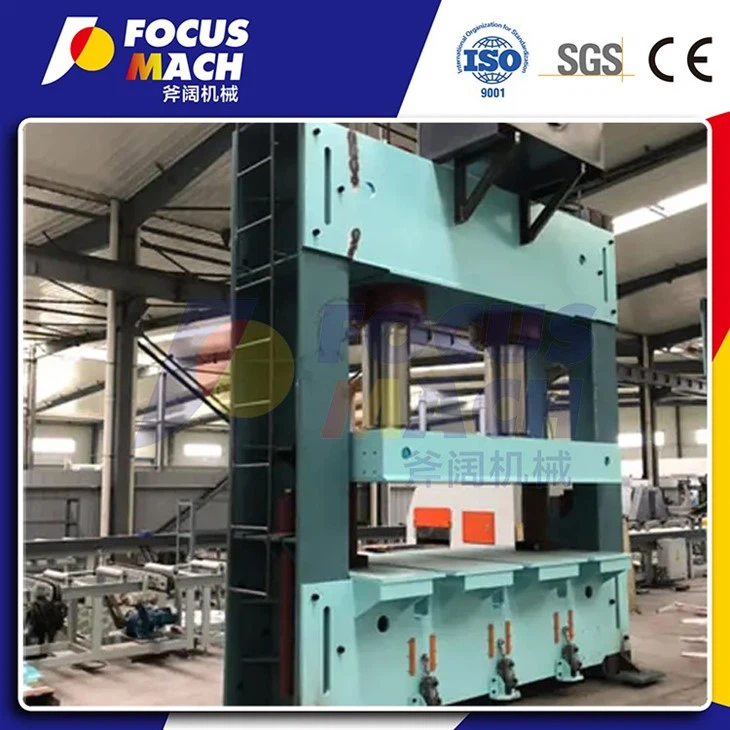

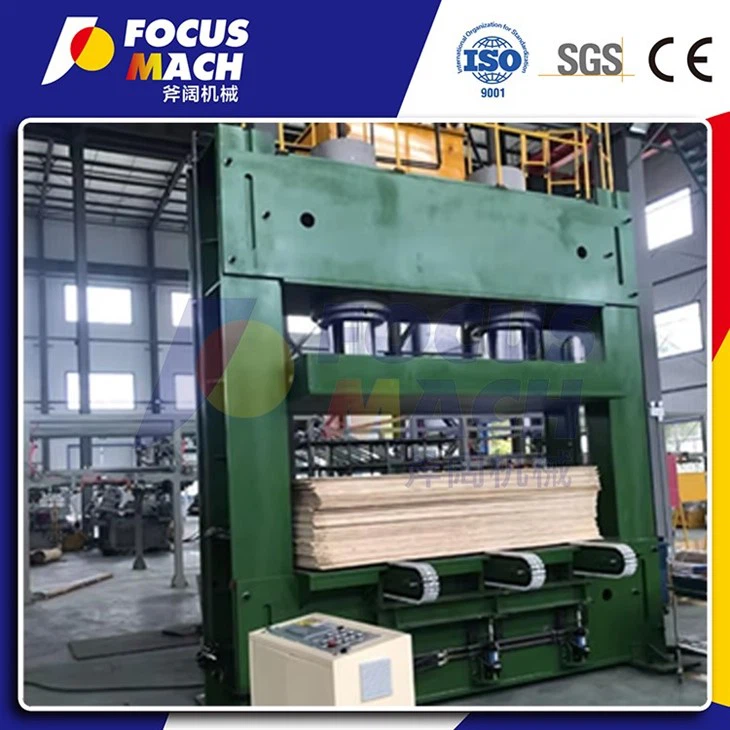

Press Machine Cold Press For Plywood

The cold press is an indispensable piece of equipment in the plywood processing industry. Specifically designed for plywood with dimensions of 3'x6' and 4'x8', it plays a crucial role in the manufacturing process. After the glue has been evenly spread on the veneers, the cold press comes into action. It applies pressure to press the veneers firmly together, ensuring that the surface of the plywood is smooth and flat, which is essential for the quality of the final product.

This cold press features a net opening ranging from 300mm to 1300mm, allowing for flexibility in processing different thicknesses of plywood. The workable size reaches 2700x1370mm, providing a relatively large working area. Equipped with two pressure cylinders, each with a diameter of 320mm, it can generate sufficient pressure. Additionally, there are two lift cylinders, each with a diameter of 80mm, which contribute to the smooth operation of the press, facilitating the lifting and lowering processes during production.

Product Parameters

Press Machine Cold Press For Plywood
MODEL	FM814×8/4C	FM814×8/5B
Nominal pressure (KN)	4000	5000
Unit pressure of board surface (Mpa)	1.3	1.3
Width of press board (mm)	2700×1370	2700×1370
Max.working stroke (mm)	1000	1000
Net opening (mm)	300-1300	300-1300
Diameter and quantity of pressure cylinders (mm)	Φ 320/2	Φ 360/2
Diameter and quantity of lift cylinders (mm)	Φ 80/2	Φ 80/2
Feeding speed (m/min)	6.78	6.78
Motor power kw)	16.1	16.1
Overall dimensions (mm)	3500×2400×4650	3500×2400×4750
Weight(kg)	18000	18000
