Products Description

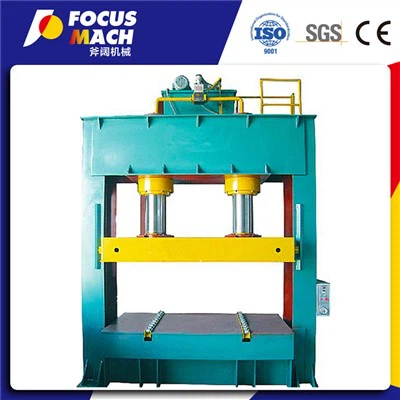

Plywood Pre-Press Plywood Cold Press Machine
The plywood pre-press and cold press are integral components in plywood manufacturing. The cold press showcases a window - frame configuration. Its pillar frame, crafted with a thickness of 30mm, and the bottom seat frame, which is 35mm thick, are constructed from high-quality Q235 steel. This robust steel choice and substantial frame thicknesses result in a heavy-duty structure. It can endure the intense pressures during plywood pressing, ensuring long - term reliability and consistent performance.
The plywood pre-press is equipped with in - built chain conveyors for both in - feeding and out-feeding. These conveyors streamline the production process, smoothly transporting the pre-glued veneer sheets in and out of the pre-press. This automation not only boosts efficiency but also reduces the risk of damage to the veneer.
Adding to its functionality, the pre-press features a hydraulic oil station positioned on the top beam. This placement ensures an unhindered oil path, enabling rapid pressure increase. Complementing these features are the electromagnetic valves. Known as the "cold press-valve" and branded as "JYUAN," these valves are of Chinese origin, ensuring quality and compatibility within the system. All these features combined make the pre-press and cold press an ideal choice for plywood production.
Product Parameters
|
Pressure and working size
|
Pressure
|
ton
|
500
|
|
unit pressure of board surface
|
Mpa
|
1.3
|
|
|
working size
|
mm
|
2700x1370
|
|
|
opening and cylinder
|
Max.working stroke
|
mm
|
1000
|
|
Opening
|
mm
|
300-1300
|
|
|
Dia.and quantity of pressure cylinders
|
mm*pcs
|
360*2
|
|
|
|
Feeding speed
|
m/min
|
6.78
|
|
Hydraulic system
|
Dia.and quantity of lift cylinders
|
mm*pcs
|
80*2
|
|
Total motor
|
kw
|
17.2
|
|
|
dimension
|
mm
|
3500x2400x4750
|
|
|
|
weight
|
kg
|
17000
|
