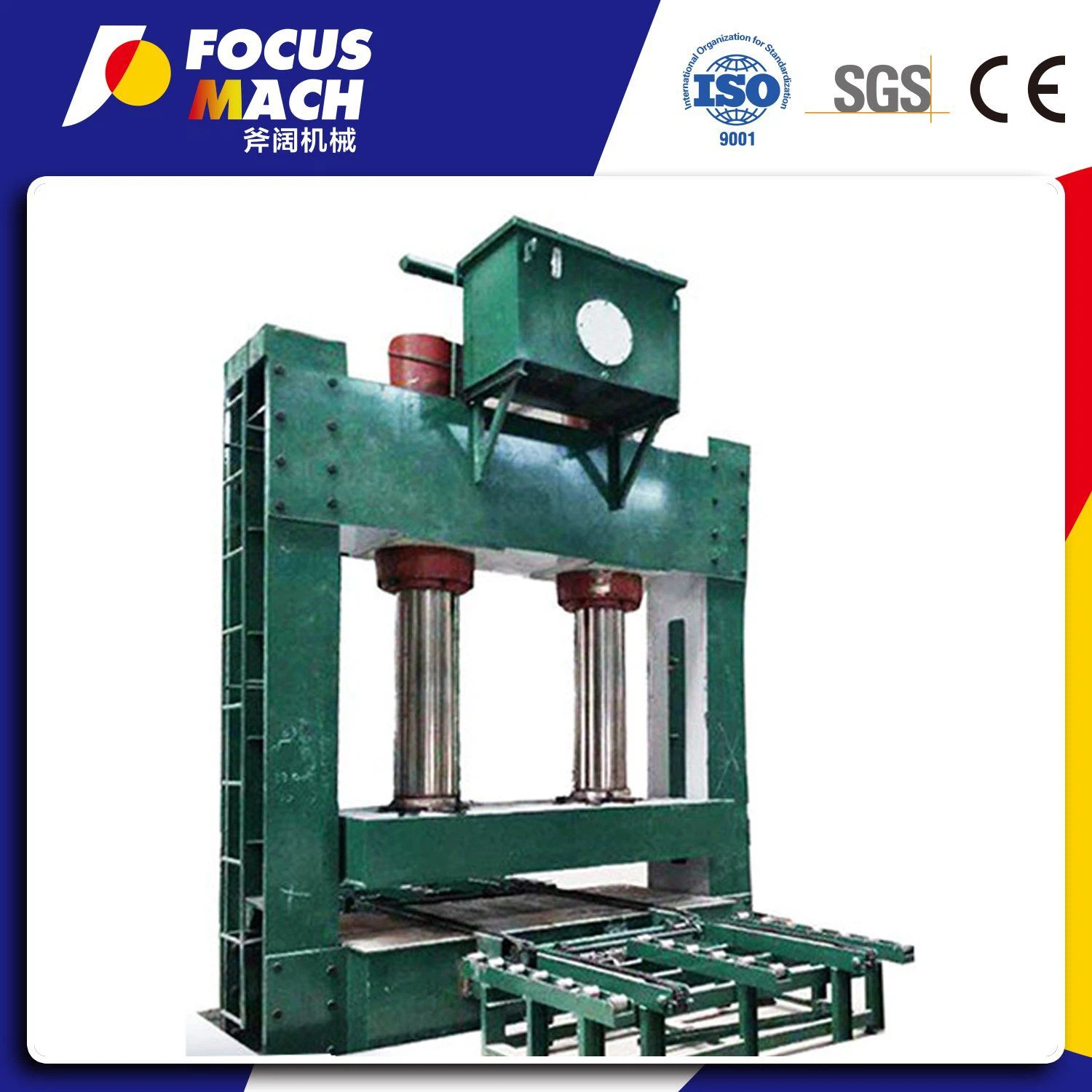

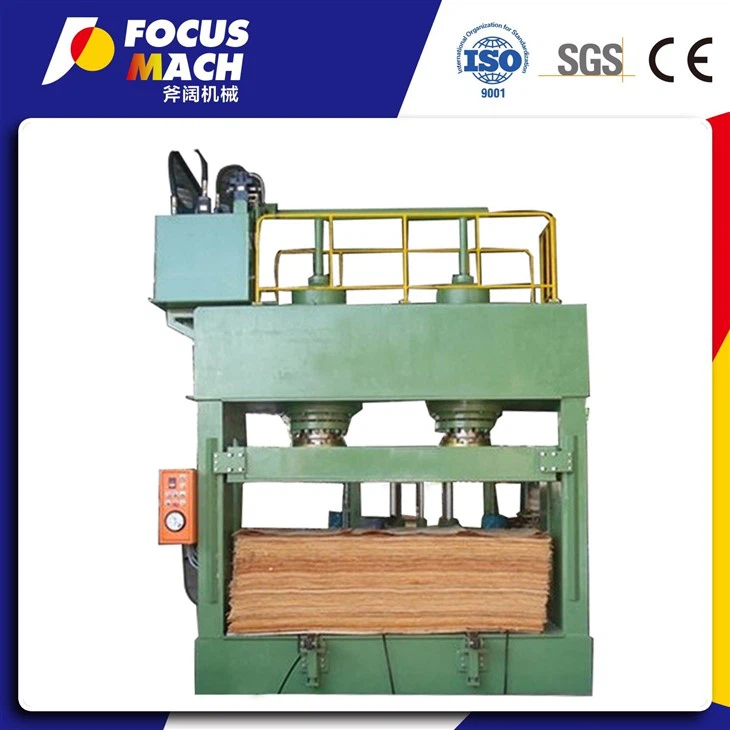

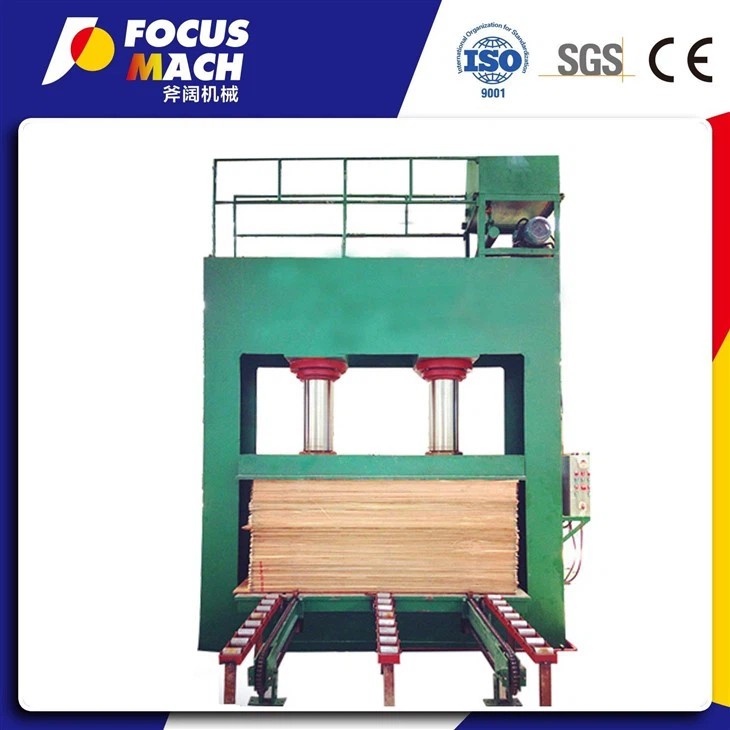

Wood Veneer Cold Press Machine For Plywood Production

Wood Veneer Cold Press Machine For Plywood Production

The 500 kN Plywood Cold Press Machine is a high-performance hydraulic press designed for laminating plywood, MDF, particleboard, and other engineered wood products. With precise pressure control and a robust structure, it ensures uniform bonding and optimal adhesive curing, making it ideal for furniture manufacturing, construction materials, and woodworking industries.

Send Inquiry

Description

Wood Veneer Cold Press Machine for Plywood Production

✅ Strong & Stable Pressure – Delivers 500 kN (50-ton) pressing force with adjustable 0.5~1.2 MPa surface pressure for consistent glue bonding.
✅ Large Platen Size (1200×2500 mm) – Accommodates standard plywood sheets (4'×8') with side guides for perfect alignment.
✅ Adjustable Height & Stroke – 50~350 mm net opening and 300 mm working stroke support multi-layer lamination.

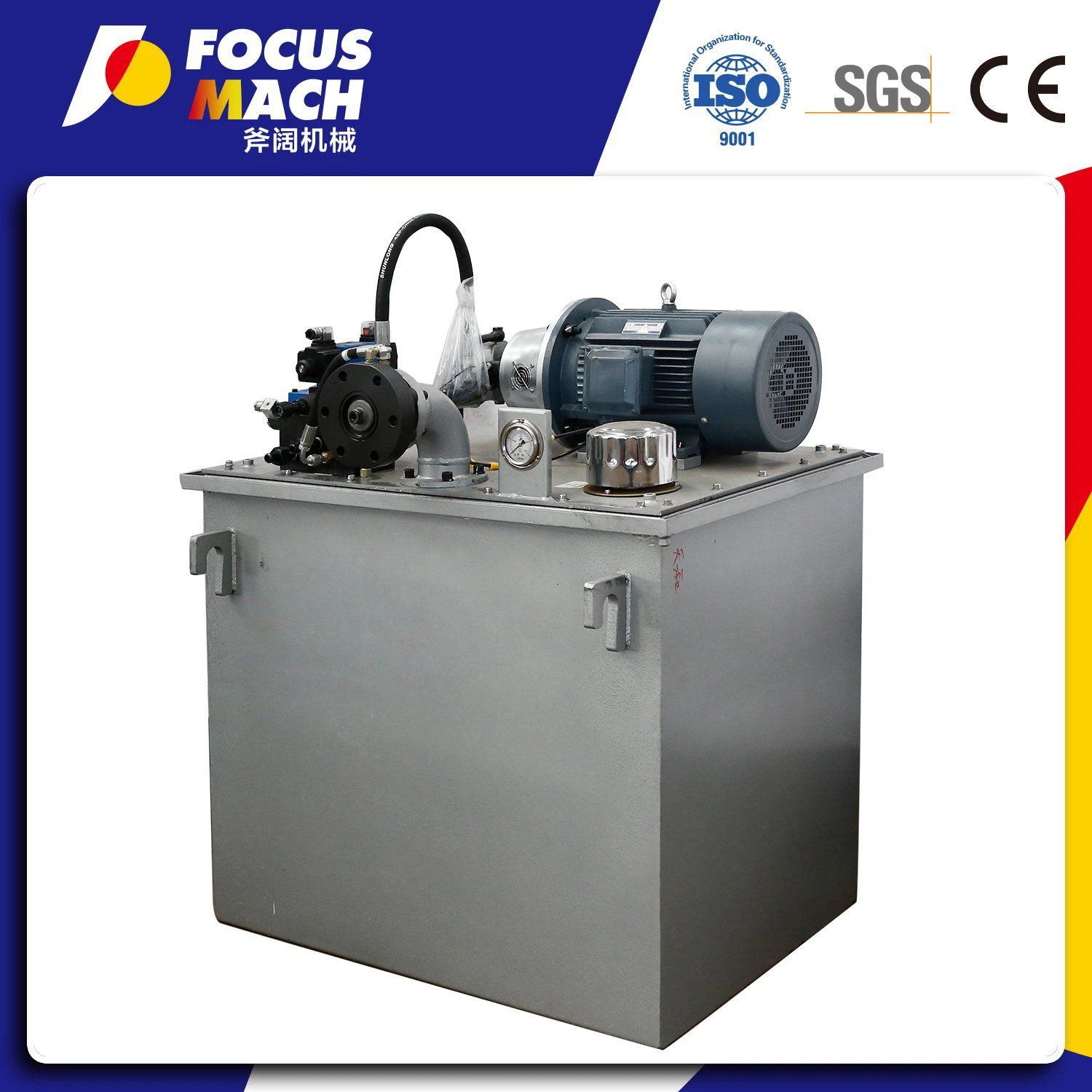

✅ Precision Control – Hydraulic system with digital pressure monitoring prevents over-pressing and material damage.
✅ Optional Heating – Upgrade to heated platens (RT~120°C) for faster thermosetting adhesive curing.
✅ Safety & Durability – Built-in emergency stop, overload protection, and heavy-duty steel frame for long-term reliability.

Products Description

Parameter	Value	Remarks
Nominal Pressure	500 kN	Total pressing force, suitable for low-to-medium load plywood lamination.
Surface Pressure	0.5~1.2 MPa (adjustable)	Evenly distributed pressure (typical plywood requirement: 0.5~1.5 MPa).
Platen Size	1200×2500 mm	Standard size for plywood sheets (customizable).
Max. Working Stroke	300 mm	Accommodates varying plywood thicknesses (e.g., 3~30 layers).
Net Opening Height	50~350 mm	Min. closed height: 50 mm; Max. open height: 350 mm (includes mold space).
Pressure Control	Hydraulic + Digital Gauge	Precise pressure regulation to prevent over-pressing.
Heating Option (Optional)	Cold Press / Heated Platens	Heating range: Room temp. ~120°C (for thermosetting adhesives).
Sheet Alignment System	Side Guides + Auto-Centering	Ensures even pressure distribution.
Safety Features	Emergency Stop + Overload Protection	Complies with machinery safety standards.
