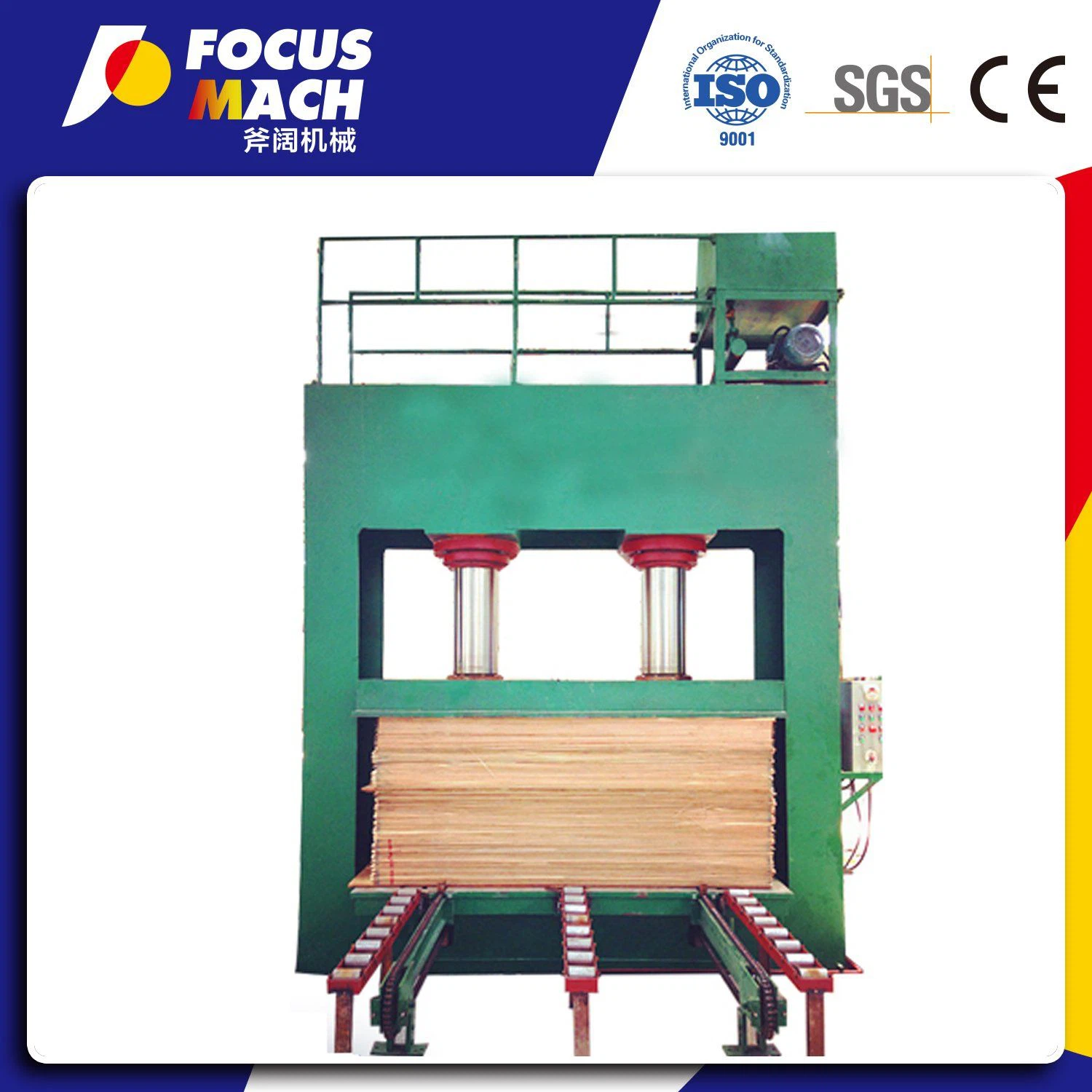

Hydraulic Cold Press Machine For Plywood
1. High Pressure & Uniform Compression
High pressure range (100-300 tons): Suitable for pressing plywood of varying thicknesses and densities, ensuring complete adhesive penetration and strong bonding.
Even pressure distribution: The hydraulic system combined with high-precision platens ensures uniform pressure, preventing panel warping or uneven bonding.
2. Energy-Efficient & High Productivity
Cold pressing requires no heating: Unlike hot presses, it saves electricity or thermal energy, reducing production costs.
Fast lifting & stable pressure-holding: The hydraulic system enables quick closing, improving efficiency, while long pressure-holding (10-60 minutes) ensures proper adhesive curing.
3. Flexible Operation & Automated Control
PLC + touchscreen control: Allows preset parameters (pressure, time, layers, etc.), simplifying operation and reducing human error.
Multi-layer design (1-5 layers): Multiple panels can be pressed simultaneously, increasing output.
4. Strong Adaptability
Adjustable platen spacing: Accommodates plywood, veneer, MDF, and other materials of different thicknesses.
Optional heating function: Some models support electric or oil heating (room temp-100°C) for special adhesives (e.g., PVAc, UF resin).
Products Description
Hydraulic Cold Press Machine for Plywood – Technical Specifications
| Parameter | Specification |
|---|---|
| Max Pressure | 100-300 tons (common: 150T, 200T, depends on laminating area) |
| Working Pressure | 10-25 MPa (adjustable, hydraulic system pressure) |
| Platen Size (L×W) | 1300×2500 mm (standard, customizable: 1200×2400mm, 1500×3000mm, etc.) |
| Number of Layers | Single or multi-layer (typically 1-5 layers, depending on production needs) |
| Daylight Opening | 500-1200 mm (adjustable for different workpiece thicknesses) |
| Min Closed Height | 50-100 mm |
| Platen Material | High-strength steel (chrome-plated or mirror-polished, flatness ≤0.1mm/m²) |

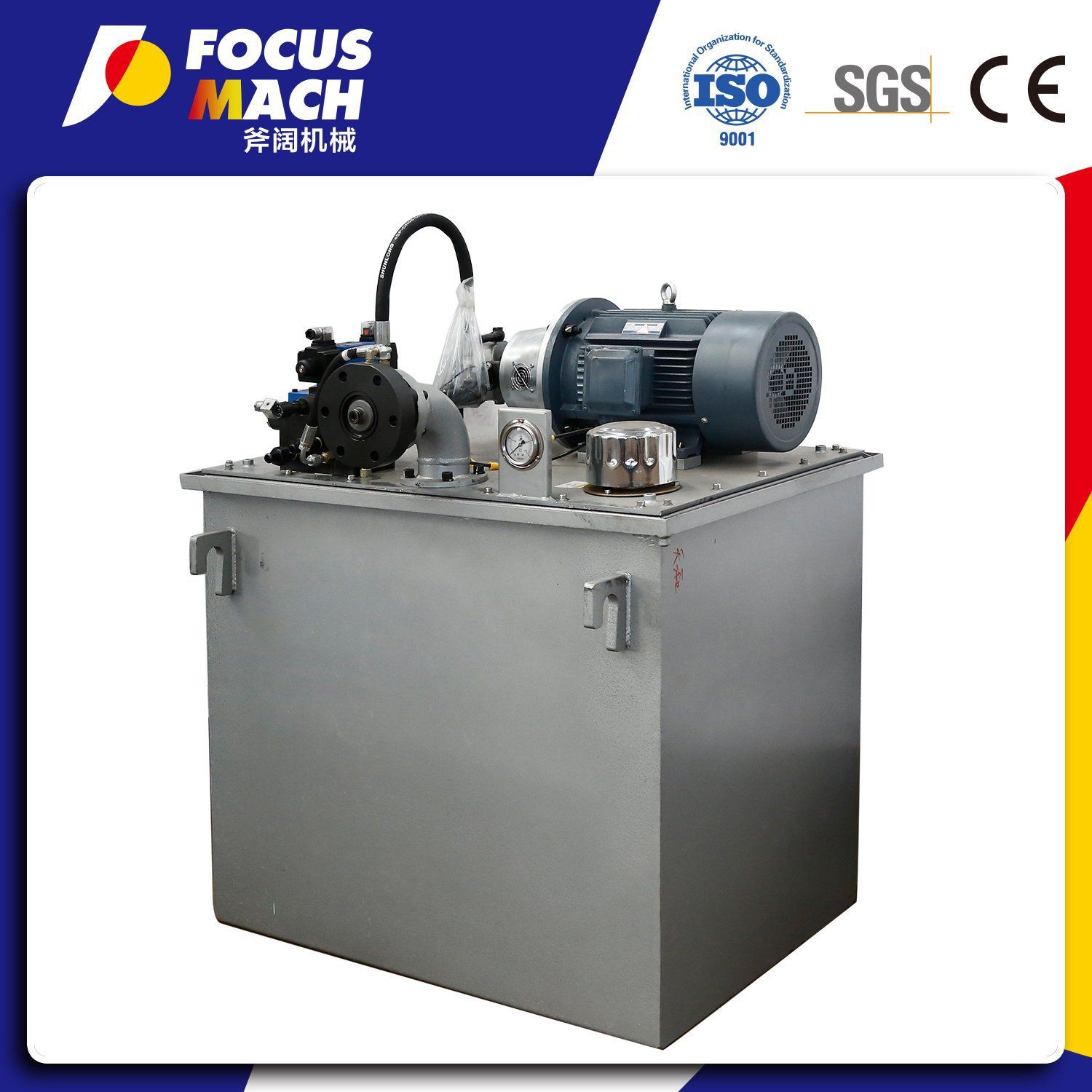

| Hydraulic System | High-pressure plunger pump with accumulator, adjustable holding time (0-9999s) |
| Holding Time | 10-60 minutes (adjustable based on adhesive curing requirements) |
| Control System | PLC + Touchscreen (preset pressure, time, temperature, etc.) |
| Heating Option | Electric or oil heating (optional, range: room temp-100°C for special glues) |
| Motor Power | 7.5-15 kW (varies by tonnage and hydraulic configuration) |
| Speed | Fast rise: 50-100 mm/s; Working speed: 5-20 mm/s |
| Safety Features | Emergency stop, mechanical locks, overload protection, anti-drop device |
| Machine Weight | Approx. 5-20 tons (depends on size and tonnage) |
| Power Supply | 380V/50Hz (3-phase, 4-wire) |
| Dimensions (L×W×H) | Customizable (e.g., 2500×1500×3500mm) |
