Products Description

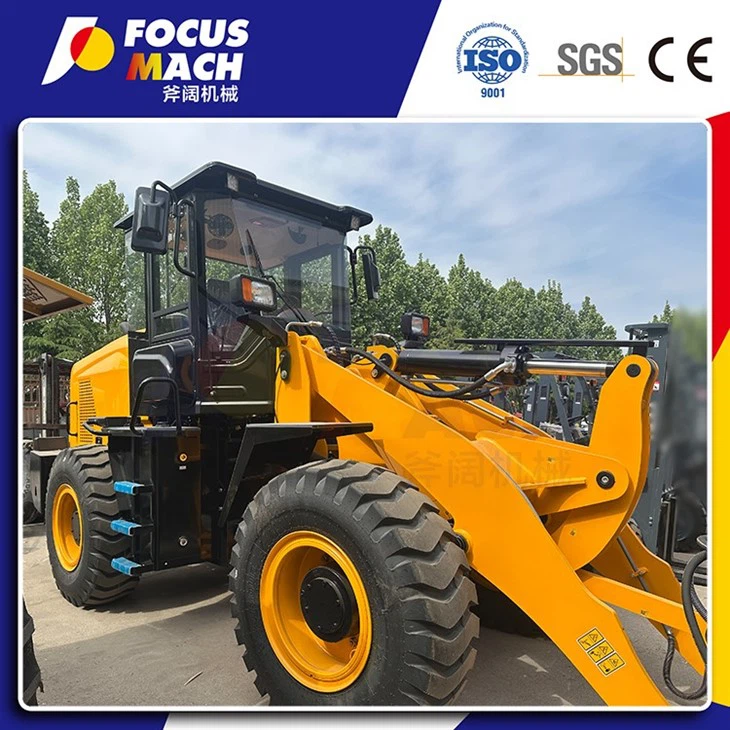

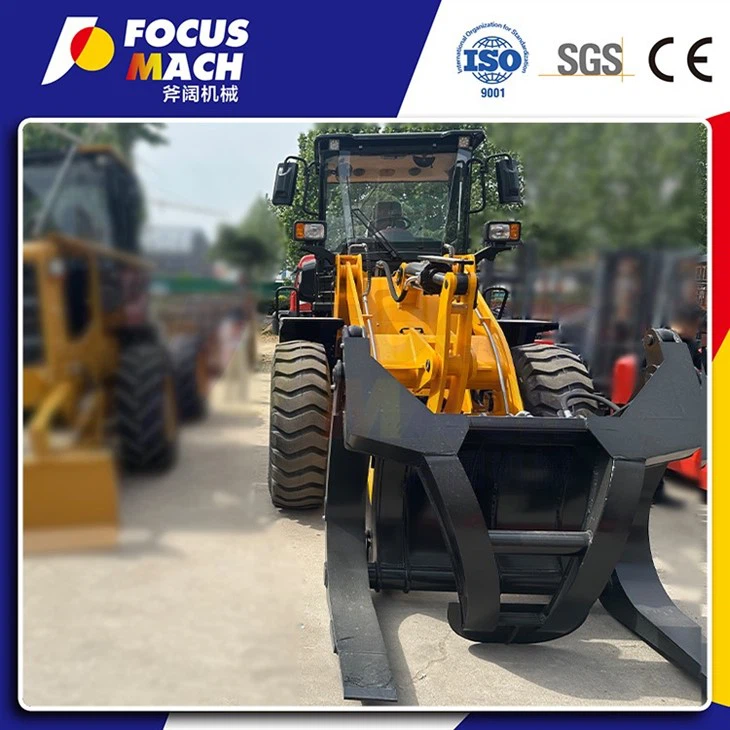

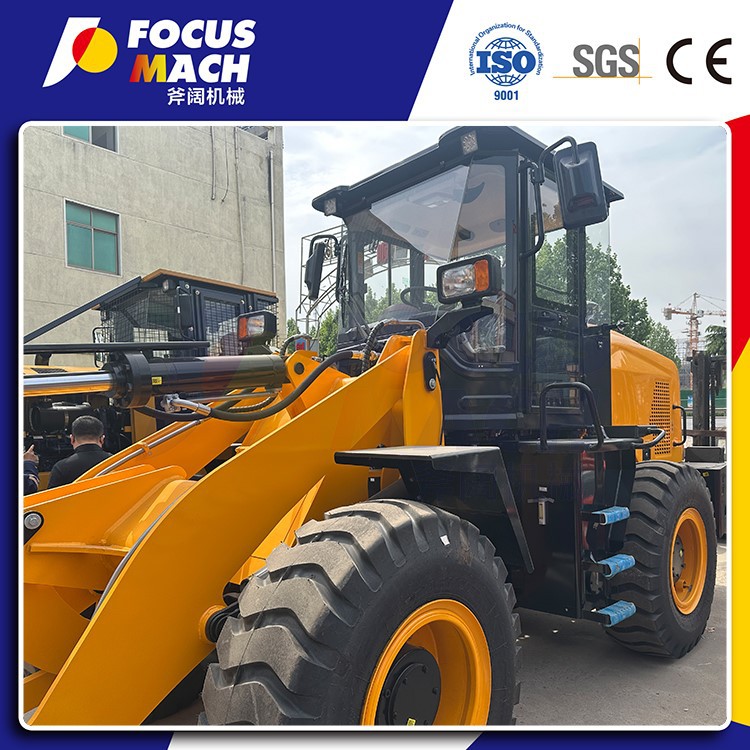

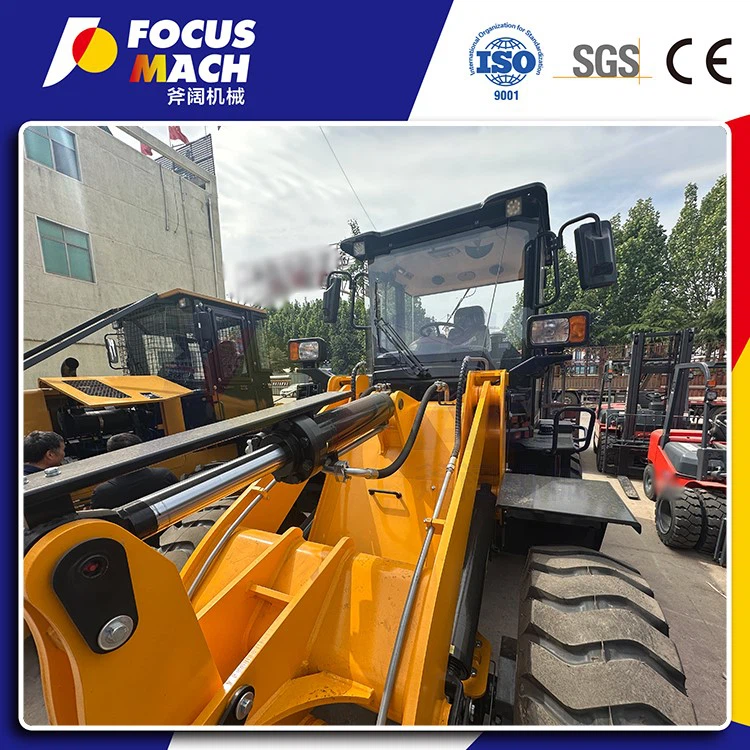

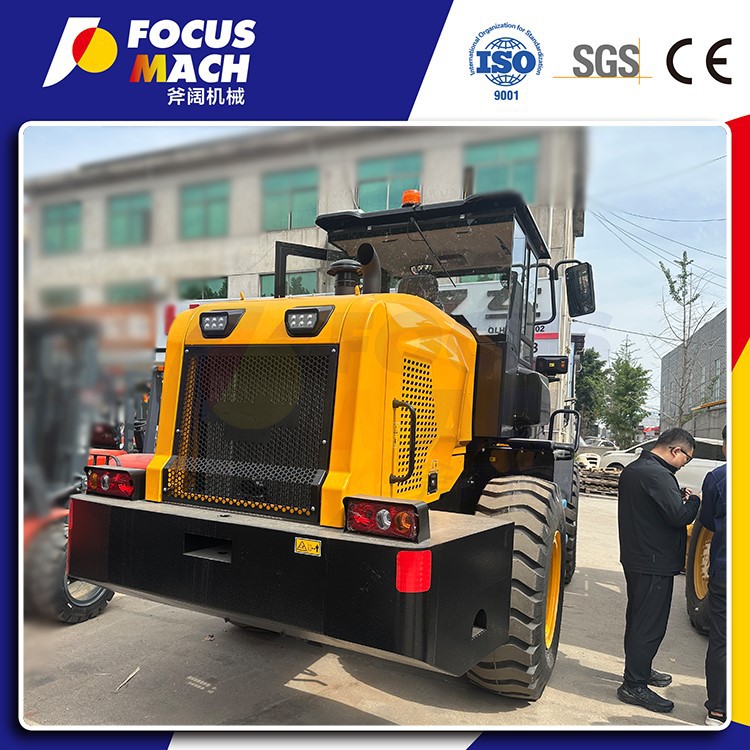

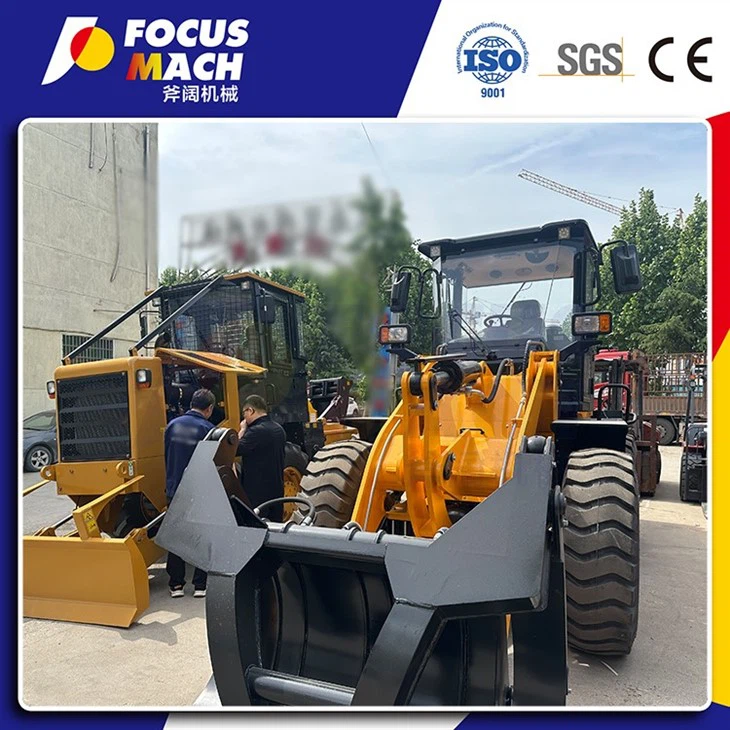

This log grabber is built on a chassis rated for 8,000 kg machine load capacity. The WP6G125 6-liter diesel engine produces 92 kW of power. The TR-100 fixed shaft powershift transmission provides F4/R2 gearing with a single-stage three-element torque converter for smooth power delivery. The hydraulic system uses two CBGJ2100 pumps (work and hoist) and one E550 pump (steering), operating through a D25-18 valve and 80-40 cylinders at 16 MPa steering pressure. The coaxial flow amplification steering system provides precise control. Four air-over-hydraulic caliper disc brakes handle service braking, while an internal expanding shoe serves as the parking brake. The machine rides on 175R24 tires.
The YS8 hoist provides 8,000 kg lifting capacity with 1,200 mm lift height using Φ20 wire rope. The CZ-100 drive axle transfers power to the wheels.
Product Parameters
| No. | Item | Parameter |
|---|---|---|
| 1 | Rated Load Capacity of Machine | 8000 kg |
| 2 | Hoist Nameplate Model | YS8 |
| 3 | Lifting Capacity | 8000 kg |
| 4 | Lifting Height | 1200 mm |
| 5 | Wire Rope Specification | Φ20 |
| 6 | Transmission Type | Fixed Shaft Power Shift |
| 7 | Transmission Gears | F4/R2 |
| 8 | Transmission Model | TR-100 |
| 9 | Torque Converter Type | Single-stage Three-element |
| 10 | Engine Model | WP6G125 |
| 11 | Rated Power | 92 kW |
| 12 | Displacement | 6 L |
| 13 | Service Brake Type | Air-over-hydraulic Caliper Disc |
| 14 | Parking Brake Type | Internal Expanding Shoe |
| 15 | Number of Brake Calipers | 4 |
| 16 | Tire Model & Ply Rating | 175R24 |
| 17 | Steering Hydraulic System Type | Coaxial Flow Amplification |
| 18 | Steering System Pressure | 16 MPa |
| 19 | Hydraulic Pump (Work) | CBGJ2100 |
| 20 | Hydraulic Pump (Steering) | E550 |
| 21 | Hydraulic Pump (Hoist) | CBGJ2100 |
| 22 | Valve | D25-18 |
| 23 | Hydraulic Cylinder | 80-40 |
| 24 | Hose | Adapted |
| 25 | Drive Axle | CZ-100 |
Key Features
- 8,000 kg machine-rated load capacity
- WP6G125 92 kW diesel engine (6L displacement)
- TR-100 powershift transmission – F4/R2
- YS8 hoist with 8,000 kg lifting capacity
- Four air-over-hydraulic caliper disc brakes
- Coaxial flow amplification steering at 16 MPa
- 175R24 tires
- CZ-100 drive axle
Why Choose This Machine
This log grabber shares its chassis with the matching skidder, meaning parts commonality across your fleet is high. The 8,000 kg rated load capacity exceeds the 3-ton operating class, providing a safety margin for tough lifts. The fixed shaft powershift transmission is proven durable in forestry applications with frequent shock loading. Four caliper disc brakes deliver reliable stopping power on wet or muddy slopes.
