Products Description

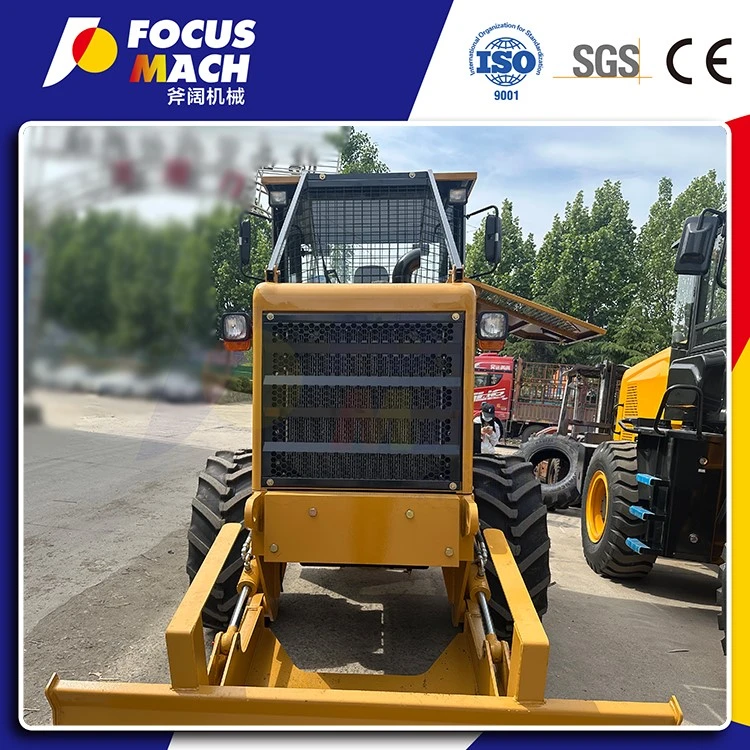

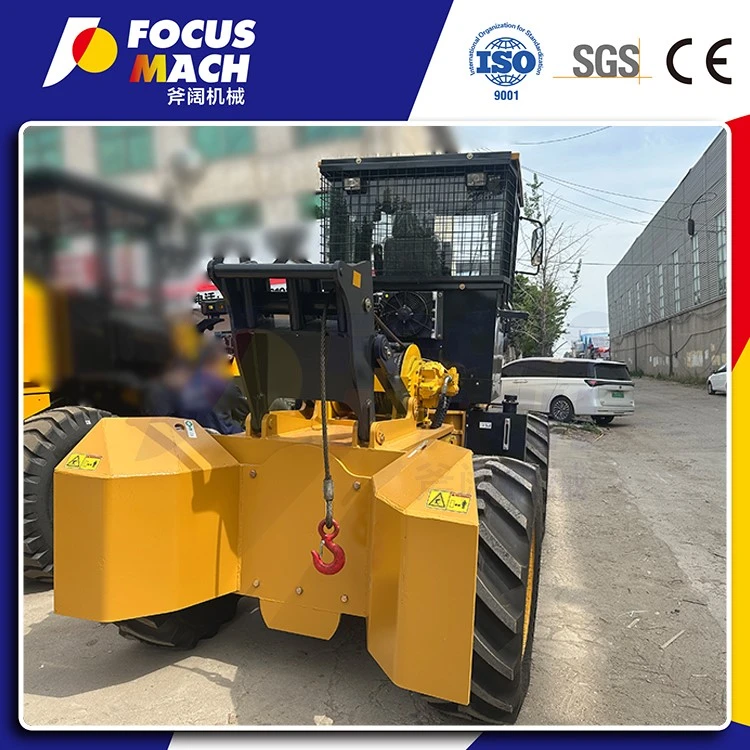

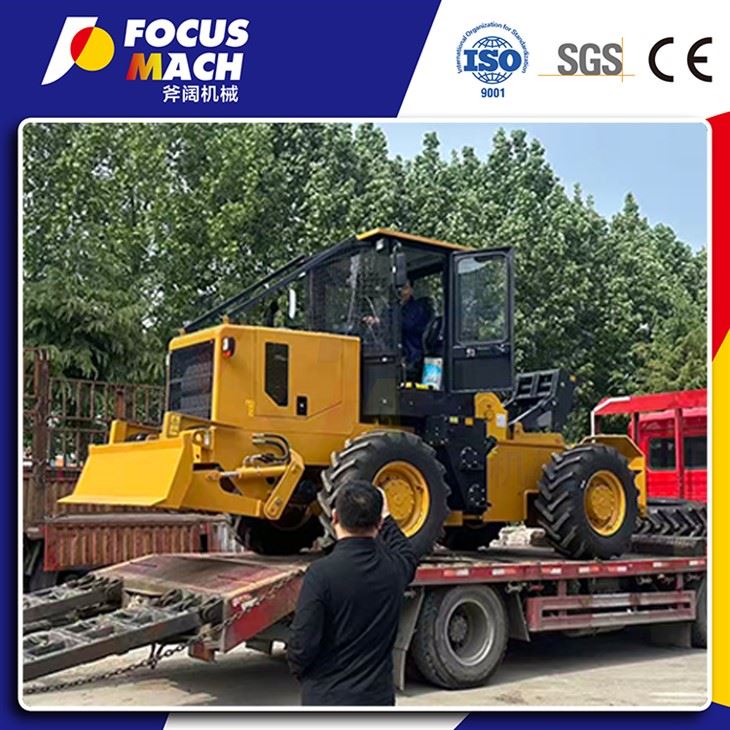

This 3-ton rated wheeled skidder is purpose-built for forestry operations including log skidding, timber collection, and land clearing. Unlike standard log loaders focused on stockpiling, this machine is designed for dragging and gathering logs from felling sites to landing areas.
Built on a heavy-duty articulated chassis with high-traction tires and a dedicated winch or grapple system, it delivers the pulling force and ground clearance required for challenging terrain.
Key Features:
- High-traction tires for mud and slope conditions
- Heavy-duty towing hitch or hydraulic winch for log skidding
- Articulated steering for maneuverability between stumps
- ROPS/FOPS certified canopy for operator safety
- Forestry guarding package for protection against debris
Product Parameters
| No. | Parameter | Value |
|---|---|---|
| 1 | Rated Load / Skidding Capacity | 3,000 kg |
| 2 | Operating Weight | ≈9,500 – 11,000 kg |
| 3 | Engine Power | 76 – 92 kW (≈100 – 125 HP) |
| 4 | Drive Type | 4WD with differential lock |
| 5 | Transmission | Powershift, 2F/1R or 4F/4R with shuttle |
| 6 | Max Skidding Speed | 10 – 15 km/h (loaded, typical) |
| 7 | Ground Clearance | ≥350 mm |
| 8 | Tires | 17.5-25 or similar forestry lug pattern |
| 9 | Winch Line Pull (if equipped) | ≈4,000 – 6,000 kg |
| 10 | Winch Rope Diameter | 10 – 12 mm |
| 11 | Hydraulic Working Pressure | 18 – 22 MPa |
| 12 | Fuel Tank Capacity | 120 – 170 L |
| 13 | Steering Type | Articulated hydraulic steering |
| 14 | Articulation Angle | ±35° – 38° |
