OEM Customize Size Wood Veneer Peeler Cuttimg Blade
When it comes to materials, we utilize top - grade alloys. The knife body is often crafted from high - carbon steel, which offers excellent toughness and impact resistance, enabling it to withstand the continuous stress of the peeling process. For the cutting edge, we employ a special blend of hardened steel or carbide inserts. These materials significantly enhance the edge's hardness and wear resistance, ensuring a long - lasting and sharp cutting performance.
The blade edge of our plywood peeling knife is precisely designed. The rake angle, usually set between 8° and 15°, is optimized to efficiently slice through the wood fibers, reducing the force required for peeling. The wedge angle, typically around 75° to 82°, is carefully calibrated to evenly distribute the cutting force, resulting in clean and precise cuts.
Installation of our plywood peeling knife is straightforward. We offer multiple installation options to accommodate different machine models. Bolts and nuts are commonly used for a secure and stable attachment, while some models feature a quick - release mechanism for easy replacement. The knife is designed to fit snugly into the machine's tool holder, minimizing any vibrations during operation.
Product Parameters
|
Parameter Category |
Detailed Parameters |
|
Size Customization Range |
Length: Customizable range is 200 - 1000 mm. Width: Can be customized as needed within 50 - 300 mm. Thickness: Customization is supported within 3 - 10 mm. |
|
Material |
Base Material of Tool Body: High - quality high - speed steel (such as M2, M42, etc.) to ensure good toughness and wear resistance; or cemented carbide (such as YG8, YT15, etc.) can be selected to significantly improve hardness and impact resistance. Blade Coating: Titanium nitride (TiN) coating can be chosen to increase surface hardness, reduce friction coefficient and improve tool service life; Titanium aluminum nitride (TiAlN) coating can also be customized, which has higher high - temperature resistance and is suitable for high - speed cutting scenarios. |
|
Blade Edge Parameters |
Rake Angle: According to different wood materials and cutting requirements, the customizable range is 5° - 20°. Clearance Angle: The usual customization range is 3° - 10° to ensure the sharpness and durability of the blade edge. Wedge Angle: The customizable angle range is 70° - 85° to optimize the distribution of cutting force. |
|
Installation Compatibility |
Installation Hole Positions: Supports the customization of different numbers, positions and hole diameters of installation holes to adapt to various common wood peeling equipment. Installation Method: According to equipment requirements, various installation methods such as bolt fastening, dovetail groove installation, and T - slot installation can be customized. |
|
Precision Index |
Blade Edge Straightness: The straightness of the customized blade edge can reach ±0.01 - ±0.05 mm. Flatness: The flatness of the tool body is controlled within the range of ±0.02 - ±0.1 mm. |
|
Cutting Performance |
Recommended Cutting Speed: For different wood materials and tool materials, the customization range of cutting speed is 20 - 80 m/min. Feed per Revolution: The customizable range is 0.05 - 0.5 mm/rev. Maximum Cutting Depth: According to the thickness and material of the tool, the maximum cutting depth can be customized to 1 - 5 mm. |
|
Durability Index |
Under normal cutting conditions, according to the customized material and process, the tool can still maintain good cutting performance after processing 30 - 200 m³ of wood, and the specific value depends on the customization requirements. |

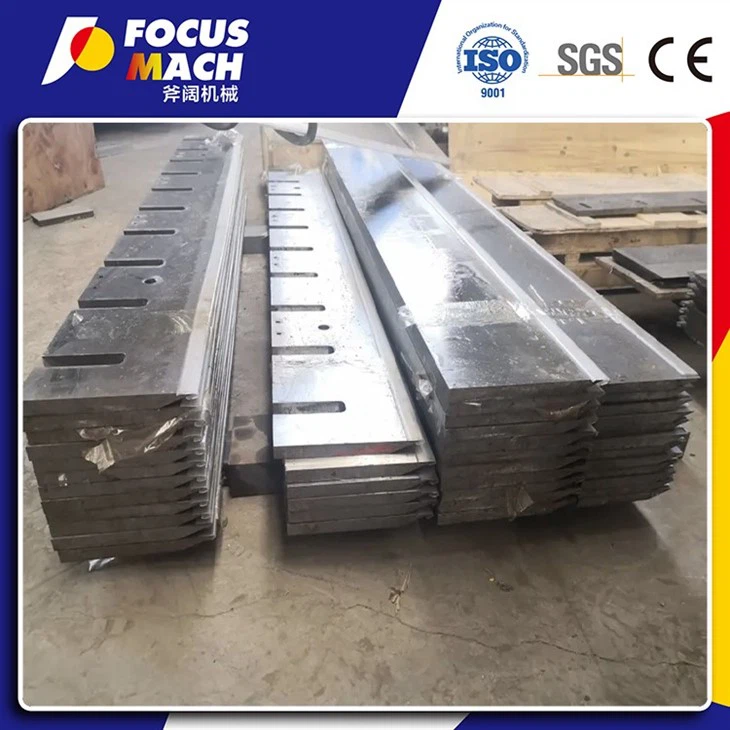

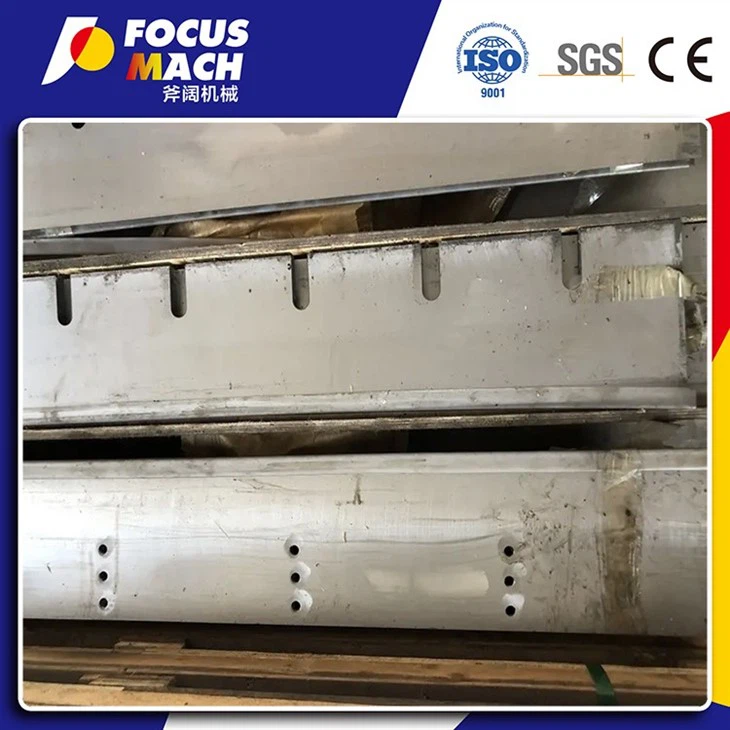

Detailed Photos
Packing And Shipping
Exhibition
