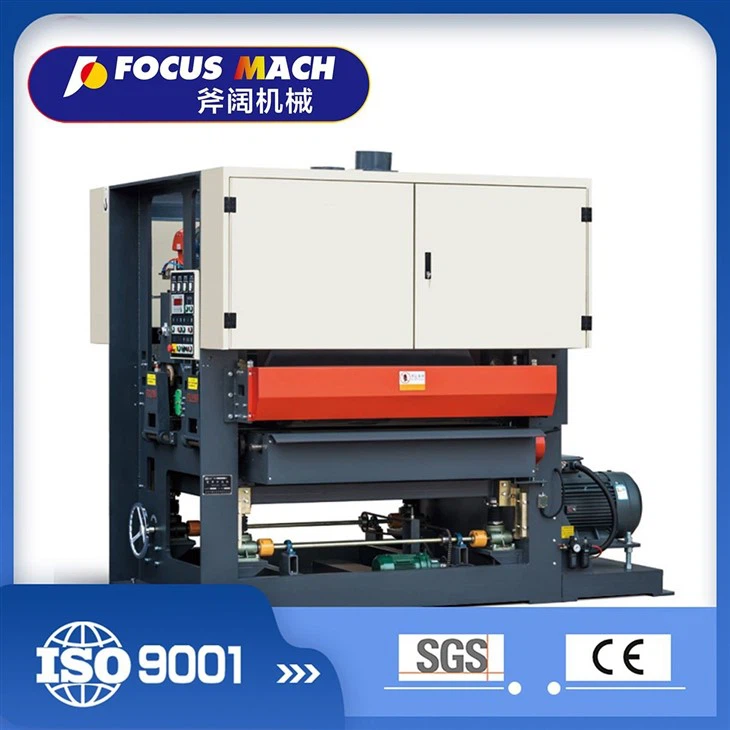

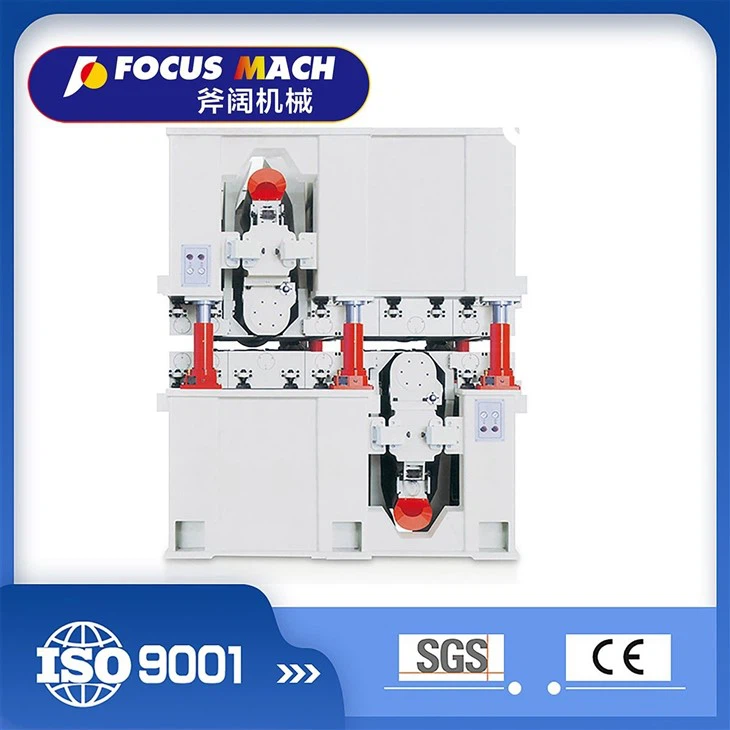

Woodworking Machine High Efficiency Plywood Sanding Machine

Woodworking Machine High Efficiency Plywood Sanding Machine

The plywood sanding machine is a high-performance industrial equipment designed for precision surface finishing of wood-based materials such as plywood, MDF (Medium-Density Fiberboard), and particleboard. It is widely used in furniture manufacturing, construction, and woodworking industries to achieve smooth, uniform, and high-quality surfaces. The machine features a robust construction with advanced control systems, ensuring efficient and reliable operation in high-volume production environments.

Send Inquiry

Description

Heavy Duty Woodworking Wood Plywood MDF Sanding Machine

Equipped with adjustable sand belts, the machine offers versatility in handling various material thicknesses, ranging from 1mm to 50mm, and widths up to 2600mm, depending on the model. The sand belt speed is adjustable between 10m/s and 25m/s, allowing users to optimize the sanding process for different materials and finishes. The feed speed can also be customized from 5m/min to 30m/min, ensuring consistent results while maintaining high productivity.
Ideal for large-scale production, the plywood sanding machine delivers exceptional sanding accuracy, with tolerances as tight as ±0.1mm to ±0.3mm. Its durable design, combined with low maintenance requirements, makes it a cost-effective solution for businesses seeking to enhance their wood processing capabilities. Whether for smoothing rough surfaces or achieving a fine finish, this machine is an indispensable tool for modern woodworking operations.

Products Description

Parameter Item	Parameter Value/Description
Power Voltage	220V/380V (depending on equipment requirements)
Power	5.5kW - 22kW (depending on the model)
Sand Belt Size	Width: 100mm - 1300mm, Length: As per design
Sand Belt Speed	10m/s - 25m/s (adjustable)
Working Width	600mm - 2600mm (depending on the model)
Working Thickness	1mm - 50mm (depending on the model)
Feed Speed	5m/min - 30m/min (adjustable)
Number of Sand Belts	Single, double, or multiple belts (depending on the model)
Dust Port Diameter	100mm - 150mm (depending on the design)
Machine Weight	500kg - 3000kg (depending on the model)
Dimensions	Length × Width × Height (e.g., 2000mm × 1500mm × 1800mm, depending on the model)
Control System	PLC control or manual control
Sand Belt Tensioning	Manual or automatic tensioning
Applicable Materials	Plywood, MDF, particleboard, etc.
Sanding Accuracy	±0.1mm - ±0.3mm (depending on the model)
Noise Level	≤75dB (depending on the model)
