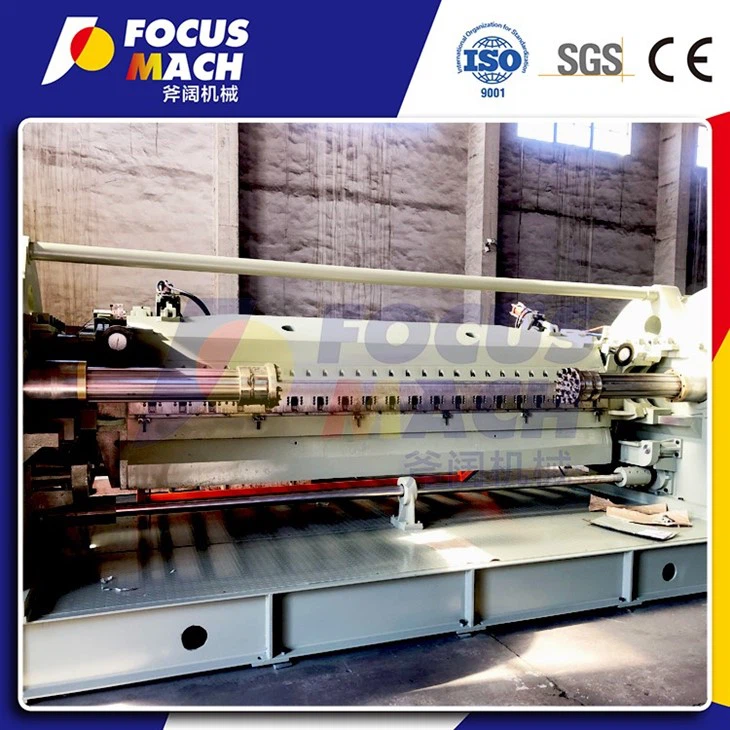

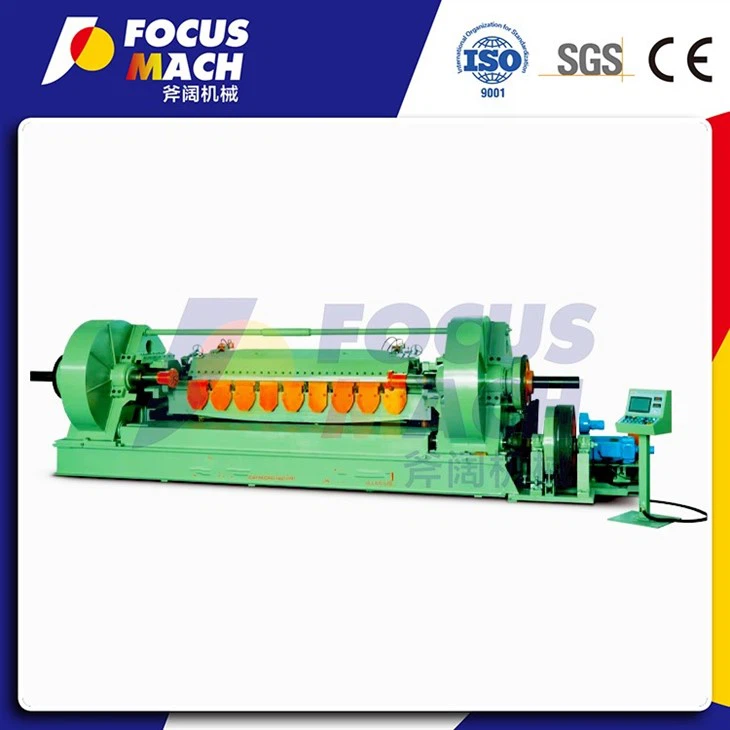

Woodworking Machinery High Precision Plywood Half Round Rotary Veneer Peeling Slicer
video
Woodworking Machinery High Precision Plywood Half Round Rotary Veneer Peeling Slicer

Woodworking Machinery High Precision Plywood Half Round Rotary Veneer Peeling Slicer

Our High Precision Plywood Rotary Veneer Peeling Slicer is a revolutionary piece of equipment in the woodworking industry. It is designed with advanced technology to ensure the highest quality veneer production.
Send Inquiry
Description



Products Description





1217-32
Woodworking machinery High Precision Plywood Half Round Rotary Veneer Peeling Slicer
In the realm of wood processing, the Plywood Half Round Rotary Veneer Peeling Slicer stands out. The rotary peeling mechanism it employs is highly efficient, enabling it to handle a significant volume of logs. The slicer's blade system is top-notch, guaranteeing sharp and accurate cuts that result in uniform veneer thickness. It is built with durability in mind, using high-quality materials that can withstand the rigors of daily operation. Additionally, its user-friendly interface makes it easy for operators to control and adjust the peeling and slicing parameters. This not only ensures the production of high-grade veneers but also enhances the overall production efficiency, making it an essential tool for plywood manufacturers aiming to produce top-quality products.



Product Parameters





Woodworking machinery High Precision Plywood Half Round Rotary Veneer Peeling Slicer
MODEL
FM1535
FM1539
Cutting length of logs
2200-3500mm
2600-3900mm
Blade size
3650*200*19mm
4050*200*19mm
Max radius of logs
750mm
750mm
Thickness of veneer
0.2-2.5mm
0.2-2.5mm
Slicing speed
90pcs/min
90pcs/min
Main motor power
45kw DC motor
45kw DC motor
Wood Clamping motor
7.5kw*2sets
7.5kw+5.5kw
Knife Feeding motor
5.5kw servo motor
2kw*2 servo motor
Blade angle adjusting motor
1.1kw
1.1kw
Conveyor motor
0.55kw
0.55kw
Oil pump motor
2.2kw
2.2kw
Dimension
9000*4000*2300mm
9000*4400*2300mm
Weight
33T
36T





Products Description






1217-34

1217-35

1217-5

1217-6



Packaging & Shipping




260-4


Company Information




260-5

260-6



Hot Tags: woodworking machinery high precision plywood half round rotary veneer peeling slicer, China woodworking machinery high precision plywood half round rotary veneer peeling slicer manufacturers, suppliers, factory, 2 Decks Jetting Belt Veneer Dryer, Sugarcane Bagasse Particleboard Machinery, High Precision Plywood Trimming Saw, Particleboard Hot Press Machine, Blockboard Sanding Machine, Commerical Plywood Hot Press Machine
