25-30Layer Plywood Hot Press Machine

25-30Layer Plywood Hot Press Machine

PLYWOOD HOT PRESS MACHINE Veneer hot press is necessary machine for plywood making line.Glued veneer face veneer and core veneer are moulded a whole sheet of plywood by hot press. Thermal oil heating type.Customized Pressure and opening layers. We are expert for hot press machine, we can produce hot press with layers from 10-50 layers
Send Inquiry
Description



Products Description

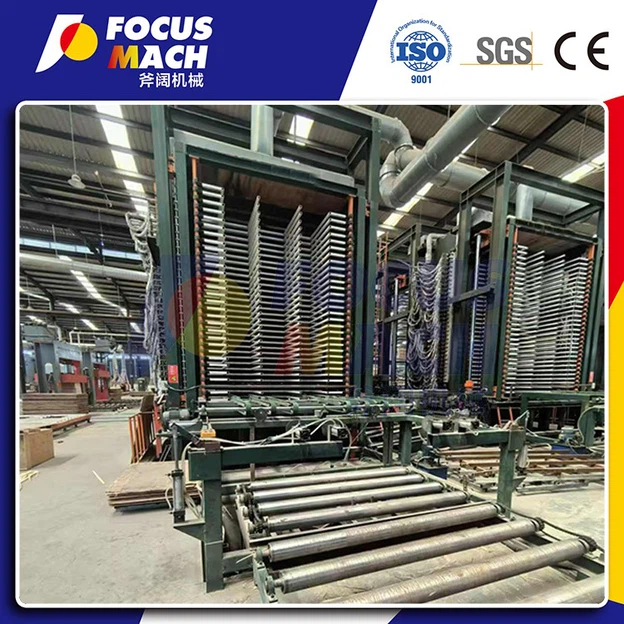

12181-7
25-30Layer Plywood Hot Press Machine
HOT PRESS MACHINE is the center machine in Plywood Production Line.

After cold pressing and repairing process, the treated basic plywood will be sent to basic plywood hot press. It will take 5-60 minutes depends on board thickness. After hot pressing, the workers will do the second time defects repairing. The board will be stored in semi product storage hours for cooling and storage.

The working condition of the hot press is directly related to the production quality of the plywood, so it is especially important to choose a high quality machine.

High Tech: Machine use SIEMENS operation system for working control, easy operation and high working efficiency;High quality: cylinder and platen supplied by professional supplier in China;Heavy duty: high quality steel plate used for frame building, whole machine wrights 38 ton;High working efficiency: the use of high quality spare part and high tech operation system, greatly increase the success of board press;Long working life.

Product Parameters





25-30Layer Plywood Hot Press Machine

Models

FM48-1560

FM48-2060

FM48-3080

Max. Working Pressure

600T

600T

800T

Working Layers

15

20

30

Distance Between Each Layer

70mm

70mm

70mm

Hot Platen Size

1370*2700*52mm

1370*2700*52mm

1370*2700*52mm

Hot Platen Quantity

16pcs

21pcs

31pcs

Cylinder

400mm*1050mm*2pcs

400mm*1400mm*2pcs

320mm*2100mm*4pcs

Motor Power

11KW+7.5KW

15KW+7.5KW

22KW+7.5KW

Low Pressure Pump

16ML plunger pump

16ML plunger pump

16ML vane pump

High Pressure Pump

237L vane pump

255L vane pump

94L vane pump

Control System

PLC automatic control

PLC automatic control

PLC automatic control

Main Frame Thickness

40mm

40mm

45mm

Up, Middle, Bottom Beam Height

900mm, 400mm, 900mm

900mm, 400mm, 900mm

900mm, 400mm, 900mm

Column Width

400mm

400mm

400mm

Voltage 220V/380V/415V/customzied





Products Description






12182-1 2

12182-1 1



12181-2

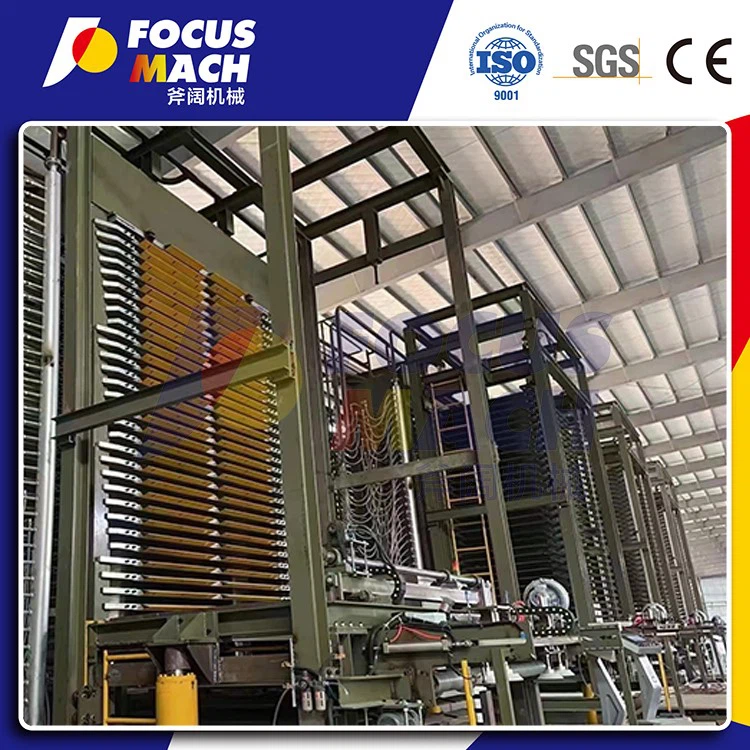

12181-5
