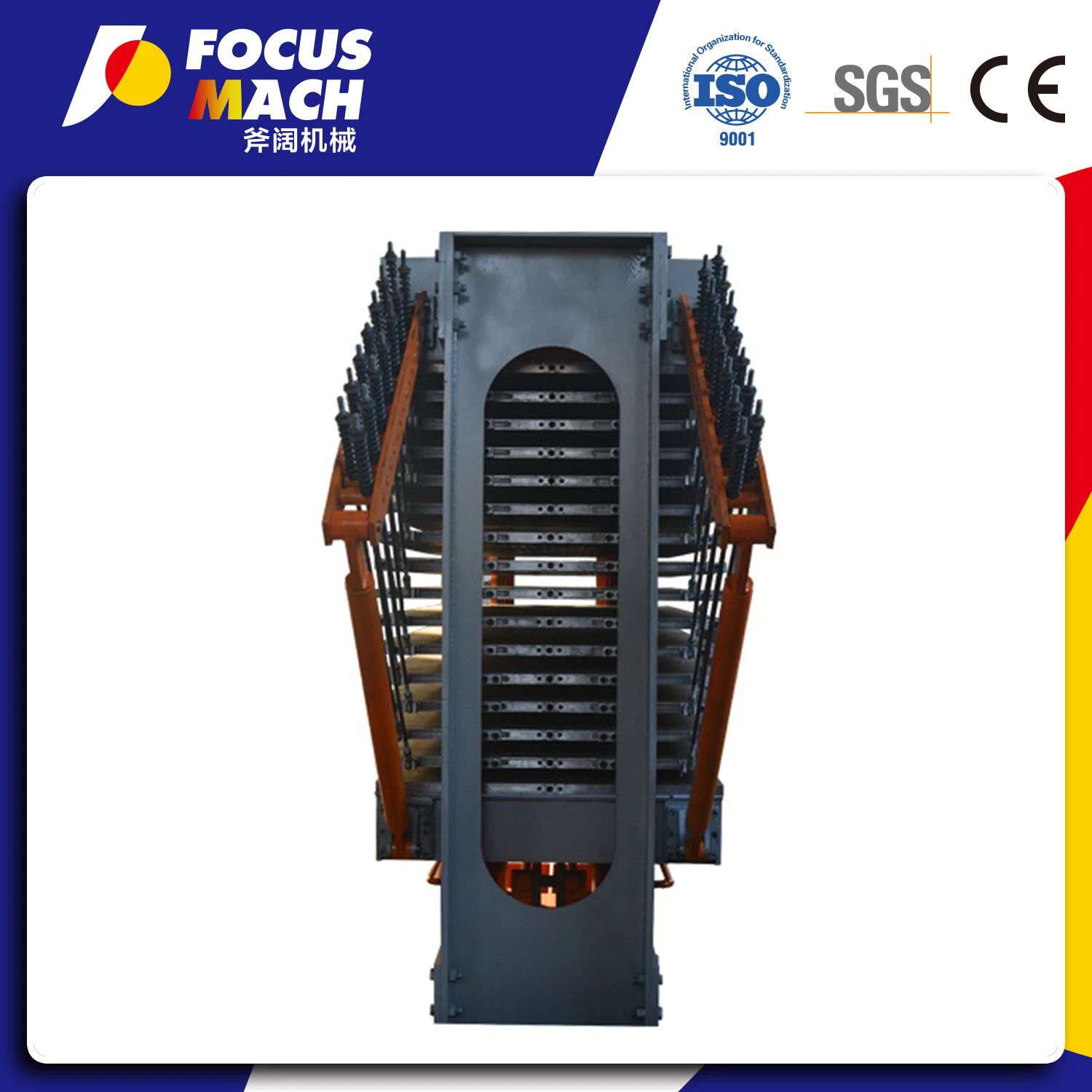

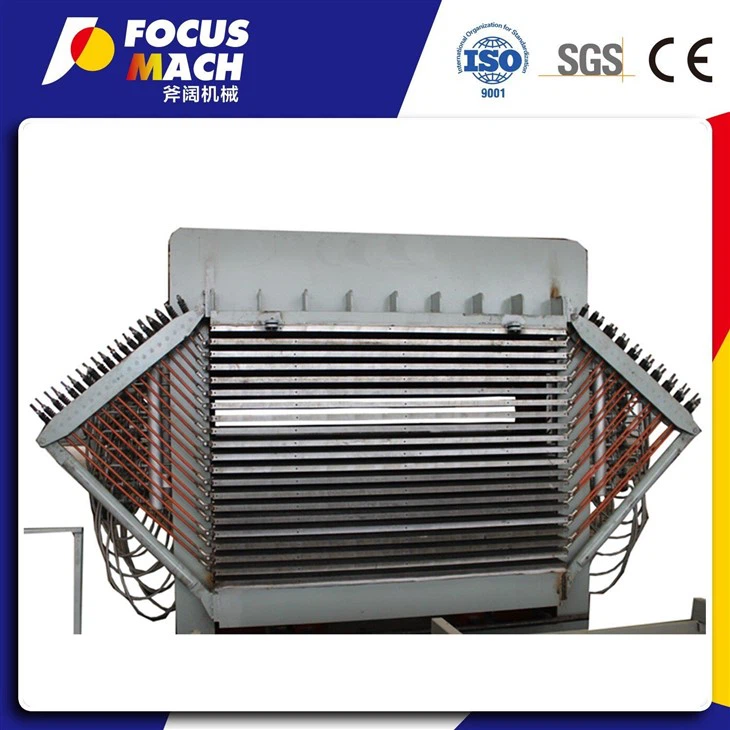

Automatic 15-Layer Hot Press Veneer Dryer Machine

This 15-layer high-efficiency hot press is a high-performance device specially designed for the modern sheet metal processing industry, integrating multiple advanced technologies such as mechanical manufacturing, hydraulic transmission, and intelligent control. The core hot-pressing plate is made of special alloy steel, with dimensions of 1400×2700mm and a thickness of 40mm. It undergoes a special heat treatment process to ensure no deformation during long-term use and a service life exceeding 50,000 pressing cycles.The equipment adopts an innovative lateral feeding design and is equipped with an automatic centering system, which can ensure the precise positioning of raw materials. The unique 15-layer synchronous pressing structure, with each layer spaced 70mm apart, combined with an intelligent temperature control system, can achieve precise temperature control within ±1℃. The whole machine is equipped with an advanced PLC control system and a 10.1-inch industrial touch screen, which can store 20 sets of process parameters and switch the production mode of different materials with one click. It is equipped with a real-time monitoring system for pressure and temperature to ensure that the thickness tolerance of the pressing is controlled within ±0.1mm
